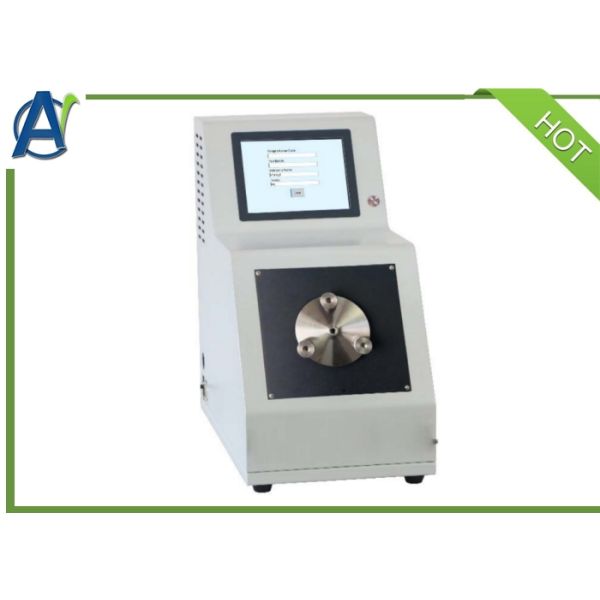

ASTM D2272 Automatic Lubricating Oil Oxidation Stability Detector (Rotating Bomb Method)RBOT/RPVOT
ASTM D2272 Automatic Lubricating Oil Oxidation Stability Detector (Rotating Bomb Method)RBOT/RPVOT
ASTM D2272 Automatic Lubricating Oil Oxidation Stability Detector (Rotating Bomb Method)RBOT/RPVOT
ASTM D2272 Automatic Lubricating Oil Oxidation Stability Detector (Rotating Bomb Method)RBOT/RPVOT
ASTM D2272 Automatic Lubricating Oil Oxidation Stability Detector (Rotating Bomb Method)RBOT/RPVOT
ASTM D2272 Automatic Lubricating Oil Oxidation Stability Detector (Rotating Bomb Method)RBOT/RPVOT
ASTM D2272 Automatic Lubricating Oil Oxidation Stability Detector (Rotating Bomb Method)RBOT/RPVOT
ASTM D2272 Automatic Lubricating Oil Oxidation Stability Detector (Rotating Bomb Method)RBOT/RPVOT
Specifications
Brand Name :
Advanced Instruments
Model Number :
RBOT-C
Certification :
ASTM D2272
Place of Origin :
China
MOQ :
1 set
Price :
US$5500-6000/set
Payment Terms :
T/T, L/C, D/P
Supply Ability :
50Sets Per Month
Delivery Time :
20days
Packaging Details :
Plywood Case
Test Standard :
ASTM D2272
Power Supply :
AC220 V±10V, 50Hz
Test method :
Rotating Bomb Method
Total Power :
<1000W
Test bath temperature control point :
140℃,150℃
Temperature control accuracy :
±0.1℃
Pressure measurement range :
0~1.6Mpa
Pressure measurement accuracy :
±0.5%
Heating Method :
Metal Bath
Rotating mechanism speed :
(100±5)r/min
Oxygen bomb angle with horizontal plane :
30°
Ambient temperature :
15℃~28℃
Net Weight :
30kg
Description

General Introduction

This Automatic Lubricating Oil Oxidation Stability Detector is designed and manufactured according to Method B of the American Society for Testing and Materials (ASTM) D2272-2009 "Standard Test Method for Oxidation Stability of Lubricating Oils" and NBSHT 0193-2022 "Rotating Bomb Oxidation Test" standards. It is suitable for testing the oxidation stability of oils as specified in the standards at two temperature settings: 150°C or 140°C.
The Automatic Lubricating Oil Oxidation Stability Detector can evaluate the oxidation stability of new and in-service steam turbine oils with identical compositions (base oils and additives). (For cases where test data precision is not critical, it may also be used to assess the oxidation stability of new mineral insulating oils containing 2,6-di-tert-butyl-p-cresol as a rapid evaluation method.)

Product Advantages

1.The whole machine is integrated design, desktop structure, high degree of integration, using touch screen industrial computer, and the instrument has a built-in electric winding machine for making catalyst coils.

2.The metal bath design reduces oil fume hazards and environmental pollution, making operation convenient.

3.The glass sample container rotates during testing, with smooth speed and low noise.

4.Built-in air cooling system improves the efficiency of continuous testing.

5.Automatic or manual pressure adjustment facilitates oxygen charging and discharging operations, and has an automatic cartridge leakage detection function.

6.Real-time calibration of temperature and pressure ensures accuracy.

7.High-precision pressure and temperature sensors provide stable and reliable test data, with temperature overheat protection.

8.Automatically detects the oxidation turning point and ends the test automatically, ensuring safe and environmentally friendly testing.

9.The Automatic Lubricating Oil Oxidation Stability Tester automatically saves test results upon completion, which can be exported, uploaded, and connected to an external printer.
ASTM D2272 Automatic Lubricating Oil Oxidation Stability Detector (Rotating Bomb Method)RBOT/RPVOT
The Technical Specifications and Parameters

Temperature control point for test bath

140ºC,150ºC
Temperature control accuracy

±0.1ºC
Range for pressure sensor

(0~1.6)MPa
Pressure accuracy

±0.5%
Rotation speed

(100±5)r/min
Included angle between oxygen bomb and horizontal plane

30°
Power supply AC(220±10%)V, 50Hz
Total power consumption <1000W
Working Temperature 15ºC~28ºC
Relative humidity ≤85%
Dimension

280mm×500mm×510mm
Net weight

30kg

ASTM D2272 Automatic Lubricating Oil Oxidation Stability Detector (Rotating Bomb Method)RBOT/RPVOT

FAQ

1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
