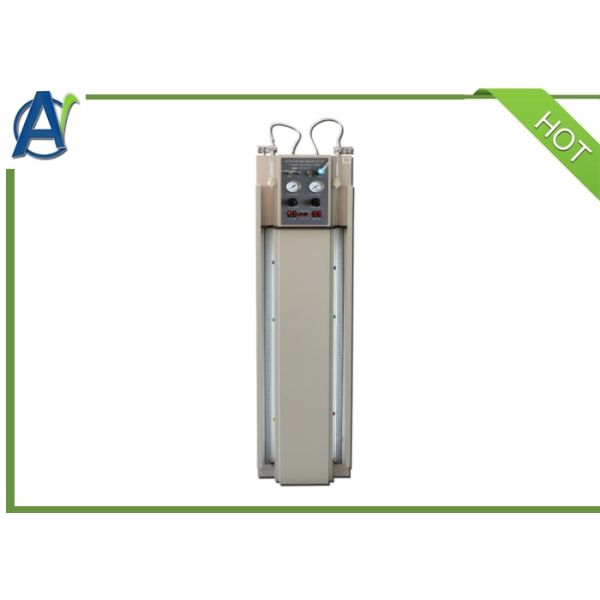

ASTM D1319 Liquid Petroleum Products Hydrocarbon Types Analyzer
ASTM D1319 Liquid Petroleum Products Hydrocarbon Types Analyzer
ASTM D1319 Liquid Petroleum Products Hydrocarbon Types Analyzer
ASTM D1319 Liquid Petroleum Products Hydrocarbon Types Analyzer
ASTM D1319 Liquid Petroleum Products Hydrocarbon Types Analyzer
ASTM D1319 Liquid Petroleum Products Hydrocarbon Types Analyzer
ASTM D1319 Liquid Petroleum Products Hydrocarbon Types Analyzer
ASTM D1319 Liquid Petroleum Products Hydrocarbon Types Analyzer
Specifications
Brand Name :
Advanced Instruments
Model Number :
AIC-1319
Certification :
ASTM D1319
Place of Origin :
China
MOQ :
1 set
Price :
US$6500-7500/set
Payment Terms :
T/T, L/C, D/P
Supply Ability :
20Sets Per Month
Delivery Time :
15days
Packaging Details :
Plywood Case
Test Standard :
ASTM D1319
Power Supply :
AC220 V±10%, 50 Hz
Maximum Power Consumption :
600W
Pressure Reducing Valve Range :
0 to 400 Kpa
Electric Vibrator :
Control Two Subsystems Respectively
UV source tube :
Length 1220mm, wavelength 365 ± 5nm
Lights :
Length 1220mm, power 40W
Air supply way :
nitrogen cylinder or air compressor
Description

Purpose and scope

The Liquid Petroleum Products Hydrocarbon Types Analyzer is designed and made as per the national standard of People's Republic of China GB / T 11132 -2008 Standard test method for hydrocarbon types in liquid petroleum products by fluorescent indicator adsorption. It is suitable to use fluorescent indicator to show main hydrocarbons in liquid petroleum products on silica gel adsorption column, calculate the volume percentage as quality indexes of motor fuel, aviation fuel and other fuel oil.
This Hydrocarbon Types Analyzer for Liquid is a special apparatus to determinate volume fraction of aromatics, olefins and saturated hydrocarbons in petroleum fraction.

Product Advantages
1.This Liquid Petroleum Hydrocarbon Types Tester adopts an integrated vertical structure design, which does not need to be installed, and can be directly placed in a suitable position indoors for use.
2.The Hydrocarbon Apparatus for oil is composed of air circuit system, vibration part, ruler and scale indication, system lighting, ultraviolet light detection and other components, from silicone filling, vibration, sampling to reading out the test results in one go.
3.Two imported precision inner diameter glass tube adsorption columns are directly adopted, which is more convenient for users to use.
4.This Hydrocarbon Testing Instrument can be connected to an external vacuum pump for adsorption column cleaning, which solves the user's trouble of cleaning the adsorption column.
ASTM D1319 Liquid Petroleum Products Hydrocarbon Types Analyzer
The Technical Specifications and Parameters

Operating Power supply
AC220V±10%, 50Hz
Voltage regulation range
0~400kPa
Electric vibrator
control two subsystems respectively
UV source tube
length 1220mm, wavelength 365 ± 5nm
Lights
nitrogen cylinder (or air compressor, compressed air cylinder);
Ambient temperature
5 ~ 35 ℃
Relative humidity
<85%
Overall dimension
350mm×400mm×1770mm
Maximum power consumption 600w

ASTM D1319 Liquid Petroleum Products Hydrocarbon Types Analyzer

FAQ

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
