ASTM D2272 Automatic Lubricating Oil Oxidation Stability Tester by Rotating Bomb Method with A method oil bath
ASTM D2272 Automatic Lubricating Oil Oxidation Stability Tester by Rotating Bomb Method with A method oil bath
ASTM D2272 Automatic Lubricating Oil Oxidation Stability Tester by Rotating Bomb Method with A method oil bath
ASTM D2272 Automatic Lubricating Oil Oxidation Stability Tester by Rotating Bomb Method with A method oil bath
ASTM D2272 Automatic Lubricating Oil Oxidation Stability Tester by Rotating Bomb Method with A method oil bath
ASTM D2272 Automatic Lubricating Oil Oxidation Stability Tester by Rotating Bomb Method with A method oil bath
ASTM D2272 Automatic Lubricating Oil Oxidation Stability Tester by Rotating Bomb Method with A method oil bath
ASTM D2272 Automatic Lubricating Oil Oxidation Stability Tester by Rotating Bomb Method with A method oil bath
Specifications
Brand Name :
Advanced Instruments
Model Number :
AIC-0193
Certification :
ASTM D2272
Place of Origin :
China
MOQ :
1 set
Price :
US$1200-13000/set
Payment Terms :
T/T, L/C, D/P
Supply Ability :
50Sets Per Month
Delivery Time :
15days
Packaging Details :
Plywood Case
Test Standard :
ASTM D2272
Power Supply :
AC220 V±10V, 50Hz
Test method :
Rotating Bomb Method
Heating tube's power consumption :
2500W
Range for pressure sensor :
(0~1.6)MPa,Accuracy:±2‰
Temperature control range for oil bath :
Room temp.~200℃,adjustable.150℃ in common use
Test sample :
Two-bomb design
Rotation speed :
(100±5)r/min
Volume of oil bath :
30L
Dimension :
550mm×800mm×1000mm
Net Weight :
45kg
Description

General Introduction

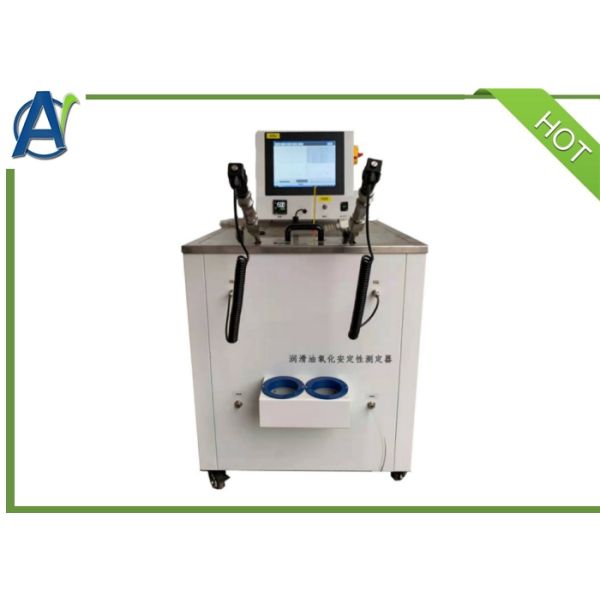

This Automatic Lubricating Oil Oxidation Stability Tester is designed and made as per industrial standard of People's Republic of China SH/T 0193 Lubricating oils-Determination of oxidation stability-Rotating pressure vessel method and ASTM D2272 Standard test Method for Oxidation Stability of Steam Turbine Oils by Rotating Pressure Vessel.

The Automatic Lubricating Oil Oxidation Stability Tester is used to determine the oxidation stability of steam turbine with the same composition (oil base oil and additive) .Also can be used to determine new mineral insulating oil containing 2,6-BHT.

Product Advantages

1.This Automatic Lubricating Oil Oxidation Stability Testing Instrument is fully designed as per standard SH/T0193. It can automatically determine pressure, record data, calculate oxidation time and finish the determination.

2.The test procedures can be done automatically. No need for human interference. The test precision is high.
3.The test curves and results will be shown on the screen and can be restored and printed if needed.
4.The imported rotating device is selected, the rotation speed is stable and the noise is low. Two sets of oil samples can be experimented at the same time.
5.The instrument's main characteristic is its integrated structural design, industrial computer control for automatic test process control, requiring no manual intervention during testing, and capable of performing parallel tests on two samples simultaneously.
ASTM D2272 Automatic Lubricating Oil Oxidation Stability Tester by Rotating Bomb Method with A method oil bath
The Technical Specifications and Parameters

Power supply

AC(220±10%)V, 50Hz

Heating tube's power consumption

2500w
Range for pressure sensor

(0~1.6)MPa;Accuracy: ±2‰
Temperature control range for oil bath

Room temperature~200.0℃, continuously adjustable.150.0℃ in common use.
Temperature control accuracy

±0.1℃
Test sample

Two-bomb design, can do two samples at one time. Convenient to do parallel test.
Rotation speed (100±5)r/min
Included angle between oxygen bomb and water level 30°
Volume of oil bath 30L
Dimension

550mm×800mm×1000mm
Net weight

45kg

ASTM D2272 Automatic Lubricating Oil Oxidation Stability Tester by Rotating Bomb Method with A method oil bath

FAQ

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
