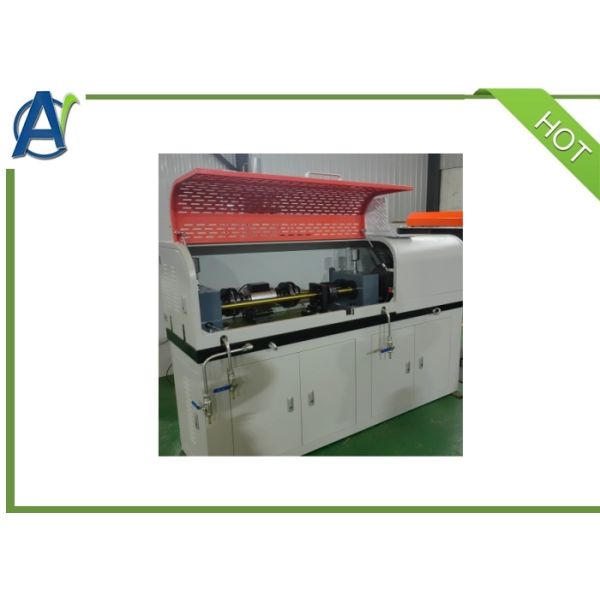

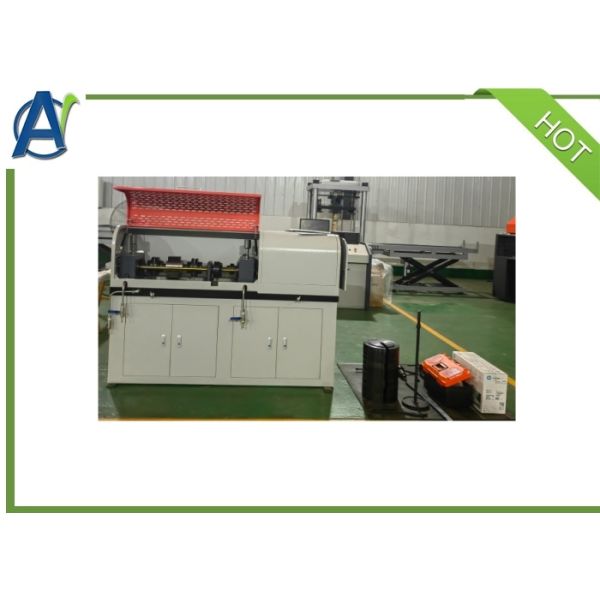

ASTM D5182-97 FZG Gear Wear Test Machine
ASTM D5182-97 FZG Gear Wear Test Machine
ASTM D5182-97 FZG Gear Wear Test Machine
ASTM D5182-97 FZG Gear Wear Test Machine
ASTM D5182-97 FZG Gear Wear Test Machine
ASTM D5182-97 FZG Gear Wear Test Machine
ASTM D5182-97 FZG Gear Wear Test Machine
ASTM D5182-97 FZG Gear Wear Test Machine
Specifications
Brand Name :
Advanced Instruments
Model Number :
AIC-5182
Certification :
ASTM D5182-97
Place of Origin :
China
MOQ :
1 set
Price :
US$20000-30000/set
Payment Terms :
T/T, L/C, D/P
Supply Ability :
20Sets Per Month
Delivery Time :
60days
Packaging Details :
Plywood Case
Driving motor parameters :
1450/2880r/min
Maximum torqueControlling Accuracy :
1Kn.m
Max. loading class :
13
Temperature control accuracy :
±2℃
Motor power :
6.5/8KW
Gear box volume :
1.25AL
Description


Product Description
FZG gear wear test machine is a multi-purpose testing machine. Can be used for the assessment of the carrying capacity of the lubricant, Also can special made by client's demands. Usually using for gear bending fatigue strength and gear touch fatigue strength test.
This Friction and Wear Testing Machine confirms to GB/T 13672-92 standard test method for scuffing load capacity of gears and SH/T 0366-1992 lubricant carrying capacity test method (CL-100 Gear machine method).
Primary Applications
This FZG scuffing loading capacity test equipment machine is designed for evaluating the scuffing load-carrying capacity of gears or lubricating oils.

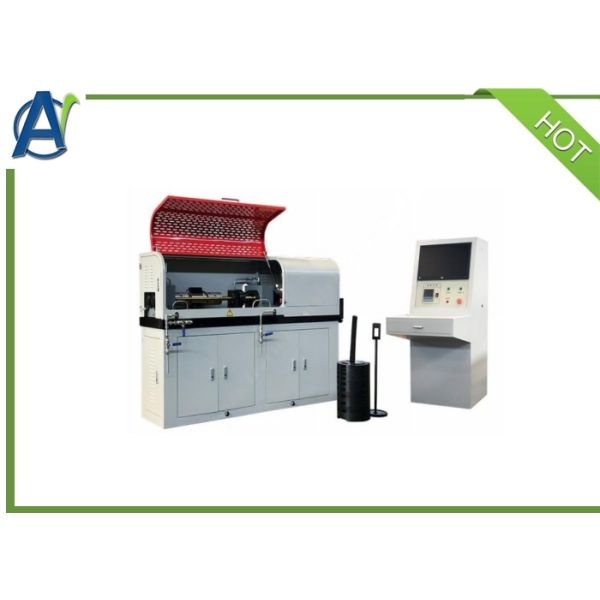

The test bench consists of the following key components:
• Main Unit: Comprising the base, power source (motor), drive gearbox, torsion shaft, test gearbox, water cooler, torque-loading fixture, torque-loading device, level gauge, heating unit, temperature sensors, oil drain system, and torque speed acquisition sensors.
• Torque Loading System
• Oil Lubrication System
• Cooling Water Circulation System

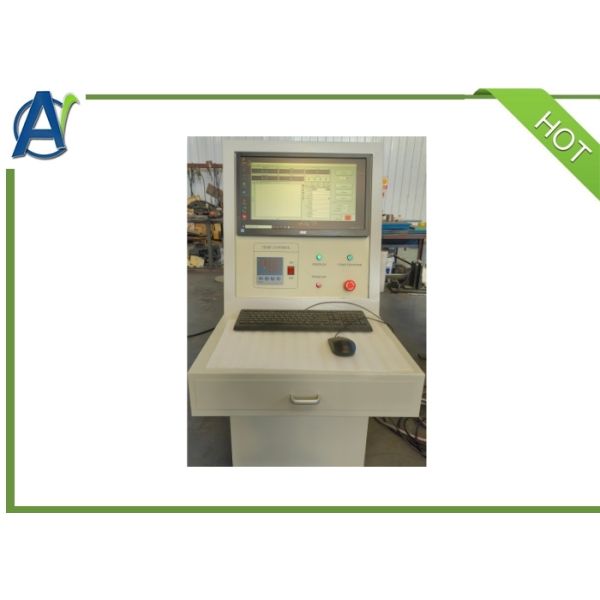

• Electrical Control Cabinet
Scope of application
This machine can meet the following test standard :
• GB/T 13672-92
• GB/T 13672-92
• SH/T 0366-1992
• ASTM D5182-97(2014)
ASTM D5182-97 FZG Gear Wear Test Machine
The Technical Specifications and Parameters

Specification
AIC-5182
Max. torque
1Kn. m
Max. loading class
13 classes
Temperature control accuracy
±2℃
Motor power
6.5/8kw
Motor speed
1450/2880 r/min
Gear box volume
1.25L
Heating power
0.5X3=1.5kw
Dimensions
1650X450X1150mm

Working Conditions

1.The fluctuation range of the power supply voltage should not exceed the rated value ± 10% and the fluctuation range of the frequency should not exceed 2% of the rated value.
2.Test machine should be installed horizontally and the installed base should be smoothly. The horizontal error for the host workbench aspect direction should not exceed 0.2/1000.
3.Room temperature 10 º C-35 º C.
4.The environment no vibration, no strong magnetic interference and non-corrosive media.
5.Relative humidity less than 80%.

ASTM D5182-97 FZG Gear Wear Test Machine

FAQ

1.What's the delivery time?
About 60days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
