Diesel Engine Oil Corrosion Tester at 135℃ | ASTM D4636 & ASTM D6594 Standard Corrosion Testing Equipment
Diesel Engine Oil Corrosion Tester at 135℃ | ASTM D4636 & ASTM D6594 Standard Corrosion Testing Equipment
Diesel Engine Oil Corrosion Tester at 135℃ | ASTM D4636 & ASTM D6594 Standard Corrosion Testing Equipment
Diesel Engine Oil Corrosion Tester at 135℃ | ASTM D4636 & ASTM D6594 Standard Corrosion Testing Equipment
Diesel Engine Oil Corrosion Tester at 135℃ | ASTM D4636 & ASTM D6594 Standard Corrosion Testing Equipment
Diesel Engine Oil Corrosion Tester at 135℃ | ASTM D4636 & ASTM D6594 Standard Corrosion Testing Equipment
Diesel Engine Oil Corrosion Tester at 135℃ | ASTM D4636 & ASTM D6594 Standard Corrosion Testing Equipment
Diesel Engine Oil Corrosion Tester at 135℃ | ASTM D4636 & ASTM D6594 Standard Corrosion Testing Equipment
Specifications
Brand Name :
AI
Model Number :
AIC-4636
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
USD$4000~6,000
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
20sets per month
Delivery Time :
30days
Packaging Details :
Plywood case
Test Standard :
ASTM D4636, ASTM D6594
Warranty :
1full Year
Trandmark :
Advanced Instruments
OEM Service :
Available
Language :
English
Power Supply :
Single phase 220–240V, 50/60Hz, 15.9A
Software Language :
English
Number of Test Positions :
6 specimens
Working Temperature Range :
51.7℃ ~ 399℃
Temperature Control Accuracy :
±0.5℃ (±1℉)
Description

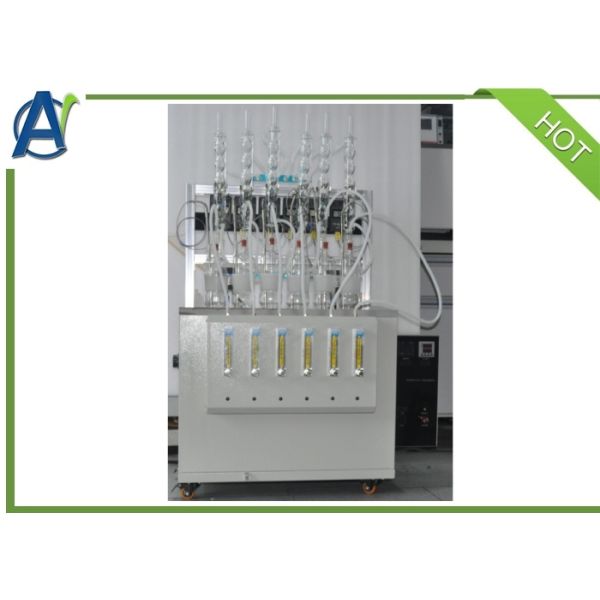

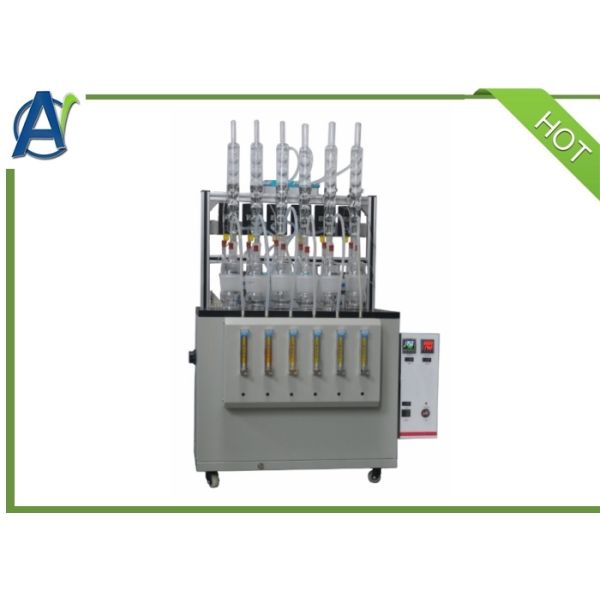

Diesel Engine Oil Corrosion Tester

I. Introduction:

Test principle: the four metal test pieces of copper, lead, tin and phosphor bronze are immersed in a certain amount of engine sample, and air is injected into the sample at a specified time at high temperature. After the test, the corrosion detection is carried out on the metal copper test piece and the sample closure.

II. Main Features

1.Capacity for six test samples, maximum test temperature up to 399°C.
2.Equipped with independent flowmeters and control valves, maximum air flow rate: 10 L/h.
3.Adopts microprocessor PID temperature control for rapid temperature stabilization; built-in over-temperature protection system to cut off power automatically once temperature exceeds set value.
4.Digital display shows actual and set temperature in both °C and °F units.

Diesel Engine Oil Corrosion Tester at 135℃ | ASTM D4636 & ASTM D6594 Standard Corrosion Testing Equipment

III. Specifications:

Applicable standard ASTM D4636, ASTM D6594
Sample Capacity 6 test specimens
Temperature Range 51.7~399℃
Temperature Control Precision ±0.5℃ (±1℉)
Max. Air Flow Rate FK35100: 10 L/h
FK35000: 3 L/h & 5 L/h
FK35300: 3 L/h
Power Supply 220–240V, 50/60Hz,;Single-phase15.9A

FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
