Specifications
Timing Method :
Digital Timer
Price :
USD$6,000~7,000
Stainless Steel Mold :
203.2×76.2×11.11mm
Packaging Details :
Plywood case
Stainless Steel Plate :
152.4×50.75×6.35mm
Display :
Digital
Delivery Time :
30days
Payment Terms :
T/T,Western Union,L/C
Trandmark :
Advanced Instruments
Working Temperature :
38±0.2℃
Language :
English
Heating Mode :
Electrical Tube
Hydraulic Pressure :
40psi±1psi
Brand Name :
AI
Supply Ability :
20sets per month
Test Standard :
ASTM D4049,Sh/T0643
Dimater of Nozzle :
Φ3.18mm
Certification :
ISO9001
Place of Origin :
China
OEM Service :
Available
Model Number :
AIC-4049
MOQ :
1 Set
Warranty :
1full Year
Spray Method :
Precise Nozzle
Description

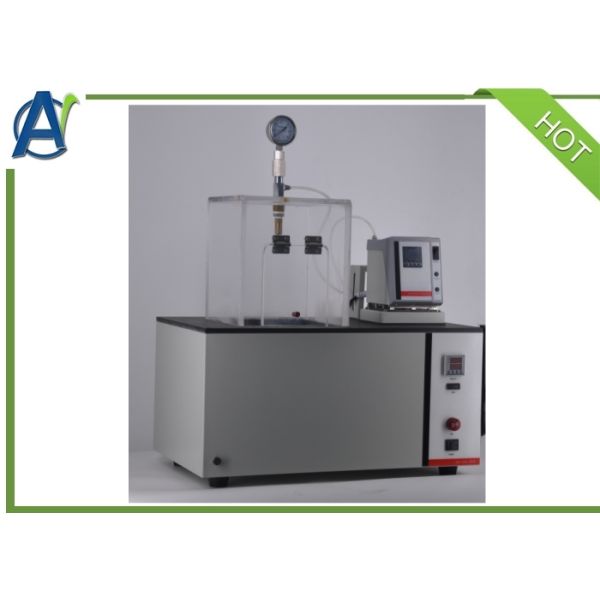

Grease Water Spray Resistance Tester

I. Introduction:

The operating principle of the Grease Water Spray Resistance Tester is: apply lubricating grease on a stainless steel plate and use water spray under the specified test temperature and pressure. After 5min, measure the spray weight loss percentage of the grease as a measure of the water spray resistance to the grease.

II. Main Features

  1. Plexiglass spray box for easy observation;
  2. Precision pressure gauge shows spray pressure;
  3. Stainless steel plate meets standard requirements: 152.4*50.75*6.35mm;
  4. Stainless steel mold meets standard requirements: 203.2*76.2*11.11mm;
  5. Stainless steel nozzle, nozzle diameter: Φ3.18mm;
  6. The front end of the pressure gauge has a bypass valve to adjust the pressure: 40psi±1psi;
  7. Microcomputer temperature controller, digital display, accuracy ±0.2ºC, PT100 sensor;
  8. The magnetic pump circulates the cooling medium, and the circulation pipe is equipped with an insulation sleeve;
  9. Digital display timer to control spray time.
ASTM D4049 Grease Water Spray Resistance Tester Lubricant Grease Water Spray Test Equipment

III. Specifications:

Applicable standard
ASTM D4049,SH/T0643
Heating method of Water Spray Off Tester
electrical tube
Timing method
digital timer
Temperature control method
digital PID controller
Working temperature
38±0.2ºC
Working hydraulic pressure of Water Spray Off Tester
40psi±1psi
Hydraulic pressure control
adjusted by bypass valve
Spray method
precise nozzle
Total power
2.5KW
Power supply
AC220V/50Hz
Weight
43kg

FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
