Lubricating Grease Oil Separation Test Apparatus ASTM D1742 for Storage Performance Test
Lubricating Grease Oil Separation Test Apparatus ASTM D1742 for Storage Performance Test
Lubricating Grease Oil Separation Test Apparatus ASTM D1742 for Storage Performance Test
Lubricating Grease Oil Separation Test Apparatus ASTM D1742 for Storage Performance Test
Lubricating Grease Oil Separation Test Apparatus ASTM D1742 for Storage Performance Test
Lubricating Grease Oil Separation Test Apparatus ASTM D1742 for Storage Performance Test
Lubricating Grease Oil Separation Test Apparatus ASTM D1742 for Storage Performance Test
Lubricating Grease Oil Separation Test Apparatus ASTM D1742 for Storage Performance Test
Specifications
Test Method :
Static
Place of Origin :
China
Delivery Time :
30days
Brand Name :
AI
Total Power Consumption :
1200w
Packaging Details :
Plywood case
Working Position :
2 units
OEM Service :
Available
Model Number :
AIC-1742
Trandmark :
Advanced Instruments
Application :
Lubricating Grease Testing
MOQ :
1 Set
Price :
USD$5,000~10,000
Warranty :
1full Year
Power Supply :
AC(220±10%)V,50Hz
Weight :
60kg
Supply Ability :
20sets per month
Test Standard :
ASTM D1742; SH/T 0682
Language :
English
Certification :
ISO9001
Payment Terms :
T/T,Western Union,L/C
Pressure Range :
1.72kpa±0.07kpa
Temperature Controlling Accuracy :
25℃±1℃
Description

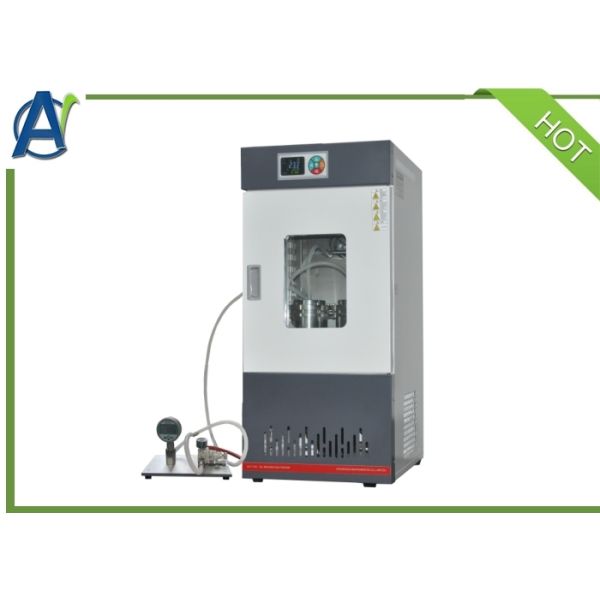

Lubricating Grease Storage Oil Separation Tester

I. Introduction:

ASTM D1742 Oil Separation Tester covers the determination of the tendency of a lubricating grease to separate oil during storage in both normally filled and partially filled containers. This Oil Separation Test Instrument is not suitable for greases softer than NLGI No. 1 grade.

II. Main Features

  1. This Lubricating Grease Oil Separation Test Instrument adopts digital gauge shows pressure, the result is clear at a glance.
  2. High precision needle valve control pressure.
  3. Temperature display: digital display thermostat.
Lubricating Grease Oil Separation Test Apparatus ASTM D1742 for Storage Performance Test

III. Specifications:

Test units 2 units
Temperature controlling accuracy 25ºC±1ºC
Pressure range 1.72kPa±0.07kPa
Sieve aperture 75μm
Pressure display Precise digital pressure gauge
Power supply AC220V 50Hz
Total power consumption 1200W
Dimension 490mm*500mm*880mm
Weight 60KG

FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
