ASTM D1384 6-Unit Corrosion Test Equipment for Coolant Corrosion Performance Test
ASTM D1384 6-Unit Corrosion Test Equipment for Coolant Corrosion Performance Test
ASTM D1384 6-Unit Corrosion Test Equipment for Coolant Corrosion Performance Test
ASTM D1384 6-Unit Corrosion Test Equipment for Coolant Corrosion Performance Test
ASTM D1384 6-Unit Corrosion Test Equipment for Coolant Corrosion Performance Test
ASTM D1384 6-Unit Corrosion Test Equipment for Coolant Corrosion Performance Test
ASTM D1384 6-Unit Corrosion Test Equipment for Coolant Corrosion Performance Test
ASTM D1384 6-Unit Corrosion Test Equipment for Coolant Corrosion Performance Test
Specifications
Payment Terms :
T/T,Western Union,L/C
OEM Service :
Available
Power supply :
AC220V/50Hz
Language :
English
Model Number :
AIC-1384S
Heating Method :
Metal Electric Rod Heater
MOQ :
1 Set
Delivery Time :
60days
Total Power :
2500w
Price :
USD$5000~7000
Power Supply :
AC220V 50Hz
Certification :
ISO9001
Display Mode :
LCD screen automatic control,automatic shutdown
Supply Ability :
20sets per month
Test Standard :
ASTM D1384;SH/T0085
Brand Name :
AI
Cooling Method :
Low-temperature Circulating Water
Packaging Details :
Plywood case
Temperature Control Mode :
Digital PID Temperature Controller
Working Units :
6 Units
Timing Mode :
Digital Timer
Place of Origin :
China
control accuracy :
±0.1℃
Description

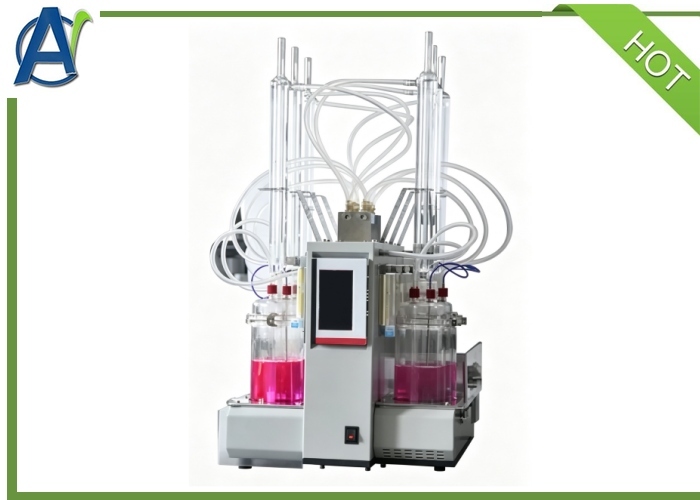

I.Engine Coolant Corrosion Tester ASTM D1384
The main principle of the Engine Coolant Corrosion Tester: six typical metals used in engine cooling systems are processed into test pieces, weighed and connected into a test piece bundle, and then completely immersed in the specified test piece. At the end of the test, the test piece was taken out, cleaned and weighed again, and the corrosion was evaluated by the corrected mass change value of the test piece before and after the test.
The instrument is suitable for high boiling point and engine coolants and their concentrates, and also for engine cooling system rust inhibitors.
II. Main features
1.This tester boasts advantages of fast temperature-rising speed, high constant-temperature accuracy, low noise, zero pollution, as well as uniform and stable air flow distribution.
2.It is equipped with a color touch screen display and adopts an intelligent PID control algorithm for temperature regulation, which guarantees superior temperature-control precision and strong anti-interference performance.
3.Built-in with an automatic timer, the instrument will give an alarm and automatically switch off the air pump once the preset time is reached.
4.With simple structural design and user-friendly operation, it is convenient for users to complete parameter configuration and operations.
5.During the test process, the main unit controls the sample temperature according to preset parameters such as test temperature.
6.A buzzer will be triggered to remind users before the test comes to completion.
7.The built-in database stores relevant test data, including test start time, test end time, sample code, test temperature, test cell number, test result judgment, preset test time, actual test running time, test equipment code, operator name and so on. Users can directly access any record on the main unit display screen. The database supports up to 999 records. When the storage is full, the earliest stored records will be automatically overwritten.
ASTM D1384 6-Unit Corrosion Test Equipment for Coolant Corrosion Performance Test
III. Main technical parameters
Applicable standards
ASTM D1384,SH/T0085
Heating method
Electric rod metal heater
Temperature control mode
Digital display PID temperature controller,control accuracy ±0.1℃
Working unit
6 units
Display Mode
LCD screen automatic control, automatic shutdown
Pressure Control
Pressure Regulating Valve
Gas Flow Rate
100ml/min±10ml/min
Cooling method
Low-temperature circulating water
(Circulating Bath is optional, no water pipe connection required)
Working power supply
AC220/50HZ
Total Power
2500w
Timing Mode
Digital Timer
Instrument Dimensions:
566mm*506mm*810mm
Net Weight
31kg
FAQ

  1. What's the delivery time?

    About 60days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
