Engine Coolant Density Tester Sh/T 0068 ASTM D1122 Coolant Density Testing Equipment
Engine Coolant Density Tester Sh/T 0068 ASTM D1122 Coolant Density Testing Equipment
Engine Coolant Density Tester Sh/T 0068 ASTM D1122 Coolant Density Testing Equipment
Engine Coolant Density Tester Sh/T 0068 ASTM D1122 Coolant Density Testing Equipment
Engine Coolant Density Tester Sh/T 0068 ASTM D1122 Coolant Density Testing Equipment
Engine Coolant Density Tester Sh/T 0068 ASTM D1122 Coolant Density Testing Equipment
Engine Coolant Density Tester Sh/T 0068 ASTM D1122 Coolant Density Testing Equipment
Engine Coolant Density Tester Sh/T 0068 ASTM D1122 Coolant Density Testing Equipment
Specifications
Model Number :
AIC-1122
Power Supply :
AC220V 50Hz
MOQ :
1 Set
Delivery Time :
60days
Test Object :
Engine Coolant Concentrates and Engine Coolants
Heater :
Electrical Heating Tube
Price :
USD$2000~5000
Function :
Determine Density or Relative Density
Certification :
ISO9001
Test Standard :
Sh/T0068, ASTM D1122
Payment Terms :
T/T,Western Union,L/C
Temperature Control Range :
20℃±0.2℃
Supply Ability :
20sets per month
Refrigeration :
Air Compressor
Working Units :
2 Holes
Packaging Details :
Plywood case
Stirring Mode :
Motor
Brand Name :
AI
OEM Service :
Available
Place of Origin :
China
Language :
English
Description

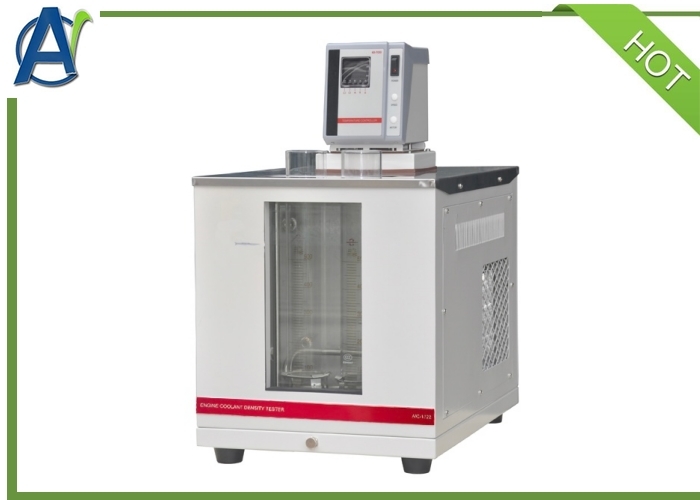

I. Engine Coolant Density Tester   ASTM D1122

This Hydrometer is combined requirements of Chinese standards and ASTM D standards.It adopts densimeter to determine relative density of engine coolants and engine coolant concentrates.The structure is separated,and operatio is easy.It is highly improve the working efficiency.

II. Main features

  • 1. Standard glass tube can meet requirements of ASTM test method.

  • 2. Glass bath allows transparent observation,the operation is easy,
  • 3. This density meter adopts fully closed air compressor refrigeration.
  • 4. The cooling medium is cycles with noise-free circulating pump,
  • 5. Heater is stainless steel.
  • 6. Structure is separated,and it is easy to move.
  • 7. There is hole on the cooling bath to add cooling medium,it can be added at any time if medium is lost.
  • 8. Micro-computure controlling,PID function,digital tempeature display(continuous display during test),accuracy 0.1ºC,Pt100 RTD temperature probe.
  • 9. Contact control box is very convenient.
  • 10. Over-heat safety protection device.There are low liquid level alarm and automatic liquid level adjuster in water bath.
Engine Coolant Density Tester Sh/T 0068 ASTM D1122 Coolant Density Testing Equipment
III. Main technical parameters
Applicable standards
SH/T0068, ASTM D1122
Temperature controlling range
20ºC±0.2ºC
Refrigeration mode
Air compressor
Heating mode
Electrical heating tube
Stirring mode
Motor
Working units
2 holes
Power supply
AC220V/50Hz
Power of the whole machine
1600W
Instrument size
370mm*520mm*630mm
Net Weight
31kg
FAQ

  1. What's the delivery time?

    About 60days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
