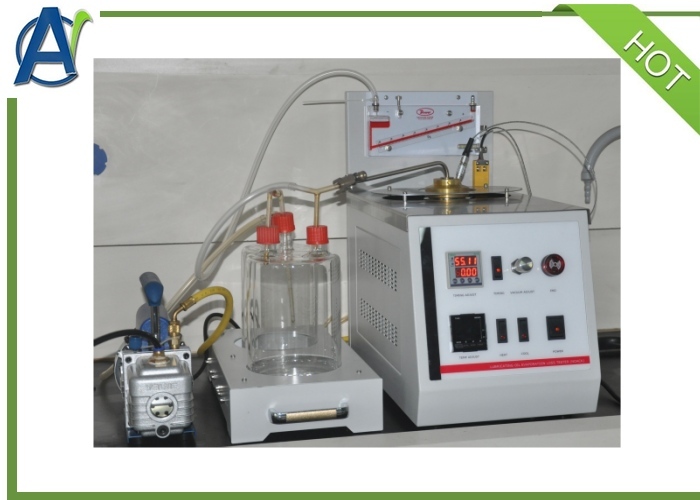

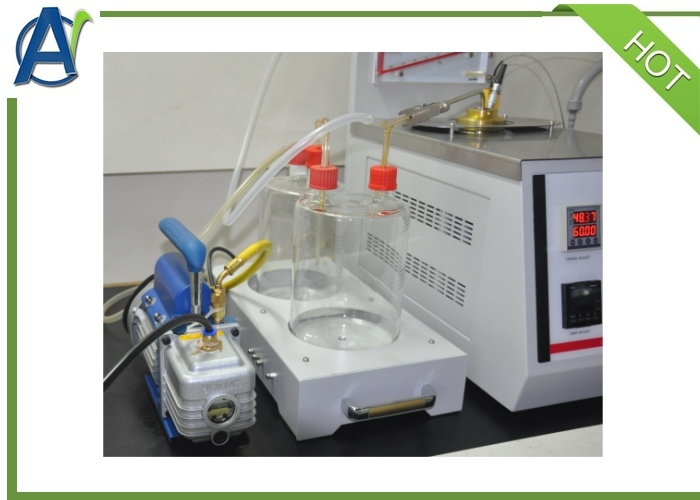

Noack B method Lubricating Oil Evaporation Loss Tester ASTM D5800
Noack B method Lubricating Oil Evaporation Loss Tester ASTM D5800
Noack B method Lubricating Oil Evaporation Loss Tester ASTM D5800
Noack B method Lubricating Oil Evaporation Loss Tester ASTM D5800
Noack B method Lubricating Oil Evaporation Loss Tester ASTM D5800
Noack B method Lubricating Oil Evaporation Loss Tester ASTM D5800
Noack B method Lubricating Oil Evaporation Loss Tester ASTM D5800
Noack B method Lubricating Oil Evaporation Loss Tester ASTM D5800
Specifications
Model Number :
Noack-B
Test Standard :
ASTM D5800,Sh/T 0059
Price :
USD$5,000~10,000
Application :
Determine The Evaporation Loss of Lubricating Oil
Net Weight :
25kg
Certification :
ISO9001
Test Method :
Noack B
MOQ :
1 Set
Delivery Time :
30days
Power Supply :
AC220V ±10% 50Hz
Heating Method :
Metal bath heating
Payment Terms :
T/T,Western Union,L/C
Temp.Control Range :
Ambient temperature ~ 250±0.5℃
Instrument Dimensions :
450mm*490mm*540mm
Supply Ability :
20sets per month
Temperature Control Mode :
Digital display PID temperature control
Total Power :
1800w
Brand Name :
AI
Language :
English
Place of Origin :
China
OEM Service :
Available
Packaging Details :
Plywood case
Pressure Adjustment :
High-precision needle valve
Description
I. Noack B method Lubricant Evaporation Loss Test Equipment ASTM D5800

This Noack B method Evaporating Loss Tester is used to determine the amount of evaporation loss of lubricating oil.
When the instrument is operated, the sample is placed in evaporation loss tester, and heated under certain conditions for 1 hour, and the evaporated oil is carried by the air correctly. The evaporation loss of the sample is determined according to the difference between the mass of the sample before and after heating.

II. Main technical characteristics
  1. Imported inclined-tube differential pressure gauge to ensure precise pressure control.
  2. Dry heating design, eliminates toxic hazards caused by heat conduction of traditional Wood's metal.
  3. Equipped with dedicated vacuum suction system.
  4. Digital timer for accurate test duration recording.
  5. Temperature sensor directly measures the oil sample temperature inside the crucible.
  6. Air cooling function for heater upon test completion, enabling quick successive tests.
  7. Audible buzzer alarm to signal the end of test.
  8. High-efficiency carbon fiber heating tubes featuring fast temperature rise, low thermal lag and uniform heat output.
  9. New-style heating structure, Patent No.: 201822076945.8
Noack B method Lubricating Oil Evaporation Loss Tester ASTM D5800
III. Main technical parameters and index
Applicable standards ASTM D5800, DIN51581, SH/T 0059
Temperature Control Mode Digital display PID temperature control
Temperature Control Range Ambient temperature ~ 250±0.5℃
Heating Method Metal bath heating
Pressure Adjustment High-precision needle valve
Suction Mode Vacuum pump
Differential Pressure Gauge Imported precision inclined-tube differential pressure gauge
Working Power Supply AC220V/50Hz
Total Power 1800w
Instrument Dimensions 450mm*490mm*540mm
Net Weight 25kg
FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
