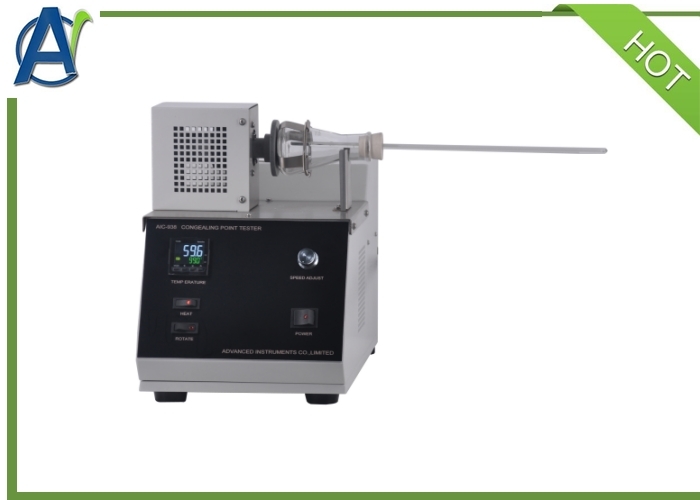

Petrolatum Paraffin Congealing Point Tester ASTM D938 Wax Congealing Point Test Instrument
Petrolatum Paraffin Congealing Point Tester ASTM D938 Wax Congealing Point Test Instrument
Petrolatum Paraffin Congealing Point Tester ASTM D938 Wax Congealing Point Test Instrument
Petrolatum Paraffin Congealing Point Tester ASTM D938 Wax Congealing Point Test Instrument
Petrolatum Paraffin Congealing Point Tester ASTM D938 Wax Congealing Point Test Instrument
Petrolatum Paraffin Congealing Point Tester ASTM D938 Wax Congealing Point Test Instrument
Petrolatum Paraffin Congealing Point Tester ASTM D938 Wax Congealing Point Test Instrument
Petrolatum Paraffin Congealing Point Tester ASTM D938 Wax Congealing Point Test Instrument
Specifications
Supply Ability :
20sets per month
Heating method :
metal bath heating
Total power consumption :
800W
Model Number :
AIC-938
OEM Service :
Available
MOQ :
1 Set
Delivery Time :
60days
Power supply :
AC220V±10%/50Hz
Rotation method :
DC motor drive
Payment Terms :
T/T,Western Union,L/C
Temperature control method :
imported digital display PID temperature controlle
Price :
USD$2,000~3,000
Test Sample :
Petroleum Wax
Certification :
ISO9001
Test Standard :
ASTM D938
Brand Name :
AI
Operation :
Automatic
Place of Origin :
China
Language :
English
Packaging Details :
Plywood case
Rotation speed :
2.5s/r
Description
I. Congealing Point Tester for Paraffin and Vaseline ASTM D938
The congealing point is a characteristic of paraffin products that is of interest to many paraffin users. This process is the temperature at which thetest sample cools to form congealed or stops flowing. At this temperature, petroleum wax may be solid or near solid, or semi solid, and is quite soft,depending on the composition of the paraffin or petrolatum being tested. When the sample is petrolatum, the congealing is related to the gel structure of the sample when it is cooled.
The principle of congealing point testing is to melt the paraffin sample and stick the paraffin droplets to the mercury ball of the thermometer. A preheated flask is used as an air jacket to cool the petroleum wax adhered to the mercury ball at the rated speed until it condenses. The freezing point can be reduced by the thermometer temperature, and when the paraffin droplets stop flowing, the observed temperature is the congealing point.
The congealing point tester is also suitable for testing Vaseline.
II. Main features
1. Heating the sample in a metal bath is safe, environmentally friendly, and free from open flames;
2. The motor drives the horizontal axis of the sample to rotate, reducing Personal equation;
3. The rotation speed can be adjusted according to requirements;
4. The holding device can be easily operated;
5. Microcomputer temperature controller, PID adjustable temperature control, PT100 temperature sensor, high accuracy;
6. The congealing point tester is equipped with dedicated thermometers and test tube plugs;

Petrolatum Paraffin Congealing Point Tester ASTM D938 Wax Congealing Point Test Instrument

III. Main technical parameters
Applicable standard
ASTM D938
Temperature control method
imported digital display PID temperature controller
Heating method
metal bath heating
Rotation method
DC motor drive
Rotation speed
2.5s/r
Total power consumption
800W
Power supply
AC220V±10% 50HZ
FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
