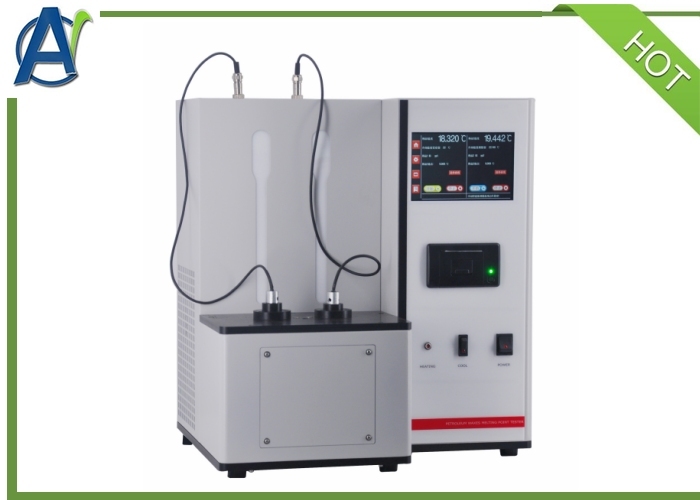

ASTM D87/ISO 3841 Automatic Paraffin Melting Point Tester Automatic Wax Melting Point Analyzer
ASTM D87/ISO 3841 Automatic Paraffin Melting Point Tester Automatic Wax Melting Point Analyzer
ASTM D87/ISO 3841 Automatic Paraffin Melting Point Tester Automatic Wax Melting Point Analyzer
ASTM D87/ISO 3841 Automatic Paraffin Melting Point Tester Automatic Wax Melting Point Analyzer
ASTM D87/ISO 3841 Automatic Paraffin Melting Point Tester Automatic Wax Melting Point Analyzer
ASTM D87/ISO 3841 Automatic Paraffin Melting Point Tester Automatic Wax Melting Point Analyzer
ASTM D87/ISO 3841 Automatic Paraffin Melting Point Tester Automatic Wax Melting Point Analyzer
ASTM D87/ISO 3841 Automatic Paraffin Melting Point Tester Automatic Wax Melting Point Analyzer
Specifications
Model Number :
AIC-3841A
Language :
English
MOQ :
1 Set
Delivery Time :
30days
Power supply :
AC220V±10%/50Hz
Bath accuracy :
±0.1℃
Payment Terms :
T/T,Western Union,L/C
Ambient temperature :
10~30℃
Cooling Mode :
compressor refrigeration
Price :
USD$5000~10,000
Total power :
1200w
Weight :
30kg
Certification :
ISO9001
OEM Service :
Available
Supply Ability :
20sets per month
Cooling bath Temperature range :
16℃~28℃
Testing unit :
2 specimens can be measured at the same time
Place of Origin :
China
Test Standard :
GB/T2539;ASTM D87;ISO 3841
Packaging Details :
Plywood case
Sensor :
Ptl00 RTD (imported by JUMO, Germany)
Brand Name :
AI
Appliance :
Petrochemical
Description
I. ISO3841 AUTOMATIC PARAFFIN MELTING POINT TESTER
This instrument is suitable for determination of the melting point (cooling curve) of petroleum wax.
It is not suitable for vaseline-type waxes, microcrystalline waxes, or mixtures with paraffin or scale waxes.
II. Main features
1. Automation Level: Industrial-grade ARM 32-bit core processor for surface-mount technology, automatically completes the testing process. Data can be exported via a USB flash drive, and processed by a computer for environmental protection and paperless testing.
2. Control System: Industrial-grade PLC programmable logic controller, treated with three-proof paint, ensuring instrument reliability. A 7-inch tablet touch screen display allows for operation without training, following on-screen prompts to complete the test.
3. Operating System: Windows CE embedded operating system with a fully Chinese interface, allowing for easy page switching, simple and convenient operation, automatic printing of results, and a large-capacity storage function capable of storing tens of thousands of data points and curves.
4. Safety Performance: Automatic diagnostics, overheating alarms, and automatic cutting off of the heater power, as well as an alarm function upon completion of the test.
5.The instrument uses a PLC industrial touch screen, HMI human-machine interface, and network configuration for remote control via mobile phones or computers. The instrument is easy to operate; simply place the sample, and the instrument will automatically start the detection, display, store test results, and can print them out.

ASTM D87/ISO 3841 Automatic Paraffin Melting Point Tester Automatic Wax Melting Point Analyzer

III. Main technical parameters
Applicable standard
GB/T2539,ASTM D87,ISO 3841
Power supply
AC220V±10%/50Hz
Cooling bath Temperature range
16~28ºC±1ºC
Cooling Mode
compressor refrigeration
Ambient temperature
10~30℃
Sensor
Ptl00 RTD (imported by JUMO, Germany)
Testing unit
2 specimens can be measured at the same time
Total power
1200W
Dimension
530mm*450mm*600mm
Weight
30KG
FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
