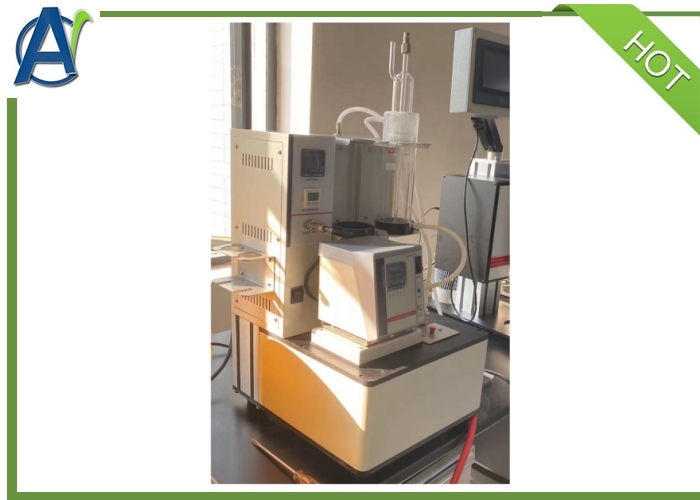

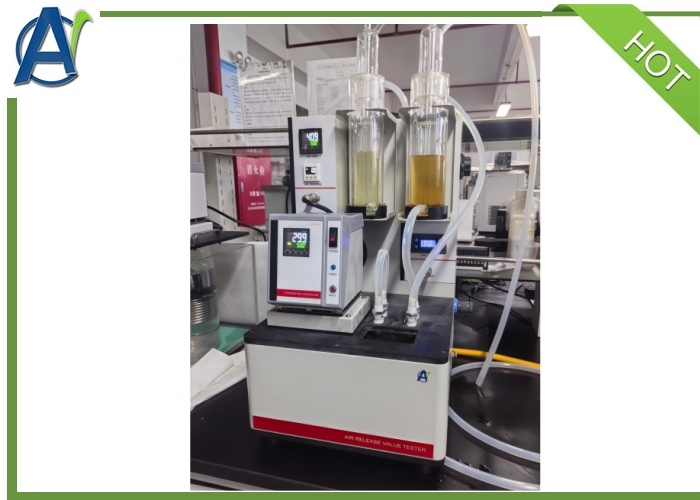

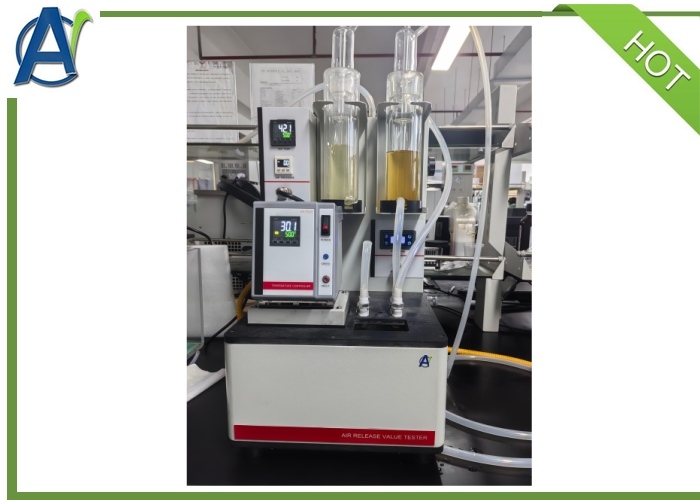

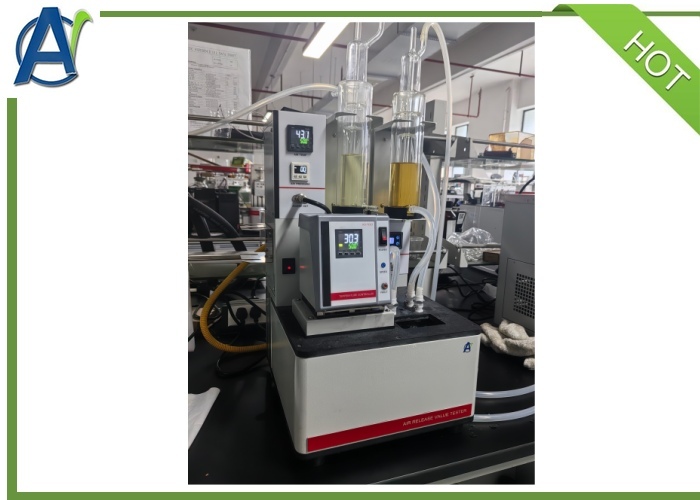

ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester
ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester
ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester
ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester
ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester
ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester
ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester
ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester
Specifications
Model Number :
ARV-II
Heating Mode :
Electric Bar
Warranty :
1full Year
Timing Mode :
Digital Timer
Price :
USD$3,000~5,000
Temperature Control Range :
Ambient~80±1℃
Display :
LED
MOQ :
1 Set
Delivery Time :
30days
OEM Service :
Available
Payment Terms :
T/T,Western Union,L/C
Application :
Grease Testing
Supply Ability :
20sets per month
Operation :
Manual
Type :
Air Release Value Meter
Power Supply :
AC220±10% 50Hz±5%
Portable :
Non Portable
Language :
English
Pressure Display :
Digital
Pressure Control :
Precise Pressure Regulating Valve
Packaging Details :
Plywood case
Certification :
ISO9001
Function :
Test Ability of Oils to Separate Entrained Air
Place of Origin :
China
Test Standard :
ASTM D3427,SH/T0308
Brand Name :
AI
Working Pressure :
19.6kpa
Description

I. ASTM D3427 Lubricating Grease Air Release Properties Tester

The Air Release Properties Apparatus is suitable to test ability of oils to separate entrained air,such as turbine oil, hydraulic oil etc.
Heat the oil sample to temperature 25,50 or 75ºC,blow compressed air through the test oil,make make it stirred strongly.Air becomes small bubbles in the air,that is entrained air.After the air is stopped,the time required for the air entrained in the oil to reduce in volume to 0.2% is recorded as the air release time.

II. Main Features

1. Micro-computer processing and PID controlling,digitally display set and real temperature,accuracy 1ºC,Pt100 RTD temperature probe.
2. Working temperature range:ambient~80ºC,accuracy can adjust to ±0.1ºC
3. High precise air regulating valve,control pressure to 19.6 Kpa accurately.
4. Stainless steel constant water bath is corrosion resistant.
5. The Air Release Properties Tester uses LED display working pressure.
6. Each tap can be connected easily.
7. Timer can display time,manual timing is not needed.
8. The case is treated with Electrostatic spraying and high temperature baking,beautiful and elegant.
9. Independent air filtering and Voltage stabilizer,can reduce water and oil in air.
ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester

III. Specifications:

1
Applicable standard
SH/T0308, ASTM D3427, DIN51585, NFT60151 ,IP135
2
Power supply
AC220±10% 50Hz±5%
3
Heating mode
Electric bar
4
Temperature controlling range
ambient~80±1ºC,if using silicon oil,it can reach higher temperature.
5
Working pressure
19.6Kpa
6
Pressure controlling
Precise pressure regulating valve
7
Timing mode
Digital timer
8
Pressure display
Digital

FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
