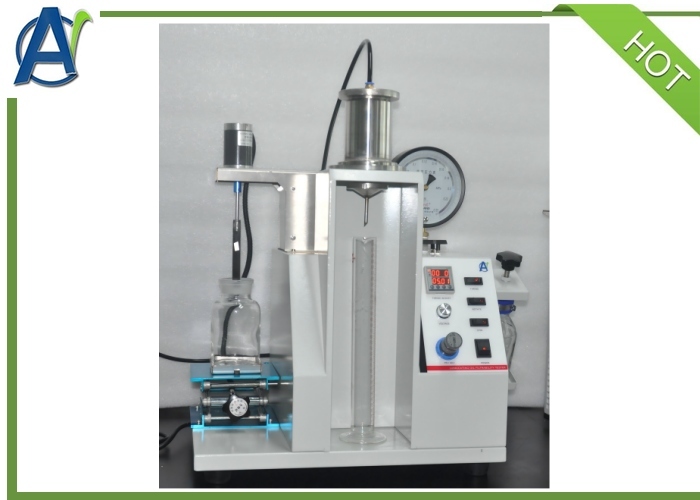

ISO 13357 SH/T 0805 Lubricating Oil Filterability Test Equipment
ISO 13357 SH/T 0805 Lubricating Oil Filterability Test Equipment
ISO 13357 SH/T 0805 Lubricating Oil Filterability Test Equipment
ISO 13357 SH/T 0805 Lubricating Oil Filterability Test Equipment
ISO 13357 SH/T 0805 Lubricating Oil Filterability Test Equipment
ISO 13357 SH/T 0805 Lubricating Oil Filterability Test Equipment
ISO 13357 SH/T 0805 Lubricating Oil Filterability Test Equipment
ISO 13357 SH/T 0805 Lubricating Oil Filterability Test Equipment
Specifications
Model Number :
AIC-13357
Language :
English
MOQ :
1 Set
Delivery Time :
30days
Weight :
38kg
Mixing Mode :
Motor Mixting
Payment Terms :
T/T,Western Union,L/C
Pressure Control :
Precise Pressure Regulating Valve
Function :
Determine Filterability of Lubricating Oil
Price :
USD$4,000~5,000
Dimension :
510mm*400mm*620mm
Certification :
ISO9001
Power Supply :
AC220V,50Hz
Supply Ability :
20sets per month
Overall Power :
2500w
Timing Mode :
Digital Timer
Brand Name :
AI
Test Standard :
ISO 13357
Place of Origin :
China
OEM Service :
Available
Packaging Details :
Plywood case
Rotating Speed :
1500r/Min ± 50 R/Min
Description

I. Lubricating Oils Filterability Tester ISO13357

This Lubricating Oils Filterability Tester is used to determine the filterability of lubricating oil based on mineral oil, especially hydraulic oil in hydraulic system. It is not suitable for liquids based on other materials (such as flame retardant liquids, because they may be compatible with the filter membrane used in this method); nor for some hydraulic oils with special properties, because they contain insoluble or partial Dissolved additives or special macromolecular substances.


II.Main technical characteristics

1. Glass fittings meet the standard requirements;
2. Digital display time, easy to operate, easy to observe;
3. The pressure can be controlled within the range of 86658Pa by precise pressure stabilizing valve;
4. The Lubricating Oils Filterability Tester is designed as an integrated structure, which is convenient for operation;
5. The shell is made of high-quality cold-rolled steel plate, and the surface is treated by electrostatic spraying, which has good rust resistance and is easy to clean;
6. The Lubricating Oils Filterability Tester has electronic agitator with stainless steel paddles and blades.
ISO 13357 SH/T 0805 Lubricating Oil Filterability Test Equipment

III. Main technical parameters and index

Test standard
SH/T 0805, ISO 13357
Timing mode
Digital display
Pressure control
precise pressure regulating valve adjustment, accurate control pressure ± 5 kPa
Solvent receiver
special solvent filter receiving bottle
Rotation mode
driven by reduction gear motor, automatic reverse
Mixing mode
Motor mixing, 1500r/min ± 50 r/min
Working power supply
AC220V 50Hz
Overall power
2500W
Dimension
510mm*400mm*620mm
Weight
38kg


FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
