OC 7163 SH/T 0048 Lubricating Grease Apparent Viscosity Tester & Grease Apparent Viscosity Measuring Instrument for Petroleum Lab Test
OC 7163 SH/T 0048 Lubricating Grease Apparent Viscosity Tester & Grease Apparent Viscosity Measuring Instrument for Petroleum Lab Test
OC 7163 SH/T 0048 Lubricating Grease Apparent Viscosity Tester & Grease Apparent Viscosity Measuring Instrument for Petroleum Lab Test
OC 7163 SH/T 0048 Lubricating Grease Apparent Viscosity Tester & Grease Apparent Viscosity Measuring Instrument for Petroleum Lab Test
OC 7163 SH/T 0048 Lubricating Grease Apparent Viscosity Tester & Grease Apparent Viscosity Measuring Instrument for Petroleum Lab Test
OC 7163 SH/T 0048 Lubricating Grease Apparent Viscosity Tester & Grease Apparent Viscosity Measuring Instrument for Petroleum Lab Test
OC 7163 SH/T 0048 Lubricating Grease Apparent Viscosity Tester & Grease Apparent Viscosity Measuring Instrument for Petroleum Lab Test
OC 7163 SH/T 0048 Lubricating Grease Apparent Viscosity Tester & Grease Apparent Viscosity Measuring Instrument for Petroleum Lab Test
Specifications
Supply Ability :
20sets per month
Temperature control range :
-60-50℃±0.1
Circulation method :
magnetic pump circulation
Model Number :
AIC-0048
Types :
Automatic
Net weight :
49kg
MOQ :
1 Set
Delivery Time :
30days
Test Standard :
[OC] 7163 SH/T0048
Refrigeration method :
dual compressor refrigeration
Payment Terms :
T/T,Western Union,L/C
Recorder speed :
0.0111, 0.195, 3.42r/min
Power of the whole machine :
1500w
Price :
USD$5,000~8,000
Capillary diameter :
Φ0.5, Φ1, Φ2mm
Instrument size :
750mm*430mm*630mm
Certification :
ISO9001
Language :
English
Place of Origin :
China
OEM Service :
Available
Packaging Details :
Plywood case
Heating method :
electric heating tube heating
Brand Name :
AI
Power Supply :
AC220V ±10% 50Hz
Description

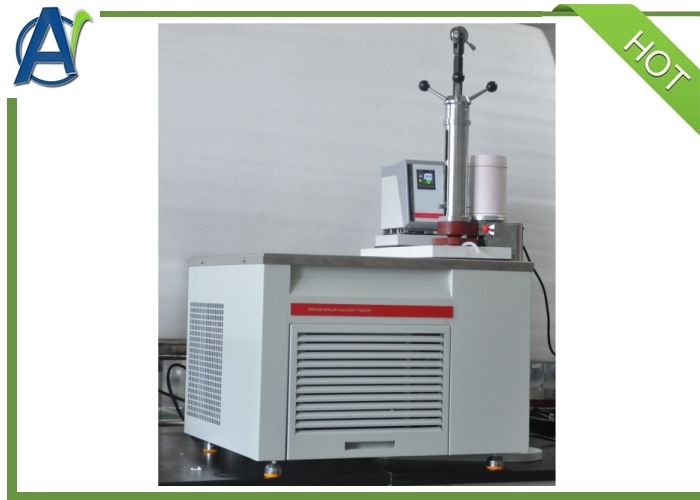

I.Lubricating Grease Relative Viscosity Tester

This Lubricating Grease Relative Viscosity Tester adopts the automatic capillary viscometer method to measure the apparent viscosity of samples, and it is applicable to the testing of lubricating greases.

II. Main features

1. Capillary viscometer with reasonable and compact structure;
2. The magnetic circulating pump transmits the medium without noise;
3. Stainless steel medium bath body;
4. Microcomputer temperature controller, digital display, accuracy ±0.1℃;
5. Fully enclosed compressor refrigeration to ensure the supply of cooling capacity;
6. Integral structure, easy to move.

7.Special analysis software supports viscosity calibration & calculation.

OC 7163 SH/T 0048 Lubricating Grease Apparent Viscosity Tester & Grease Apparent Viscosity Measuring Instrument for Petroleum Lab Test
III. Main technical parameters
Applicable standards
[OC] 7163 SH/T0048
Capillary diameter
Φ0.5, Φ1, Φ2mm
Recorder speed
0.0111, 0.195, 3.42r/min
Temperature control range
-60-50℃±0.1
Refrigeration method
dual compressor refrigeration
Heating method
electric heating tube heating
Circulation method
magnetic pump circulation
Working Power Supply
AC220V/50Hz
Power of the whole machine
1500w
Instrument Dimensions
750mm*430mm*630mm
Net Weight
49kg
FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
