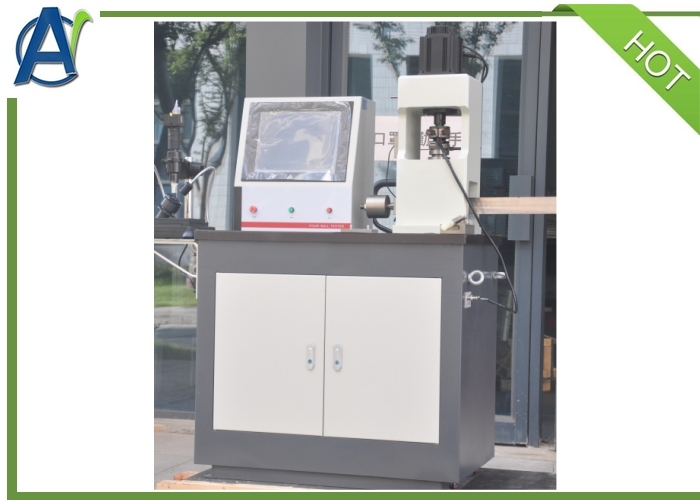

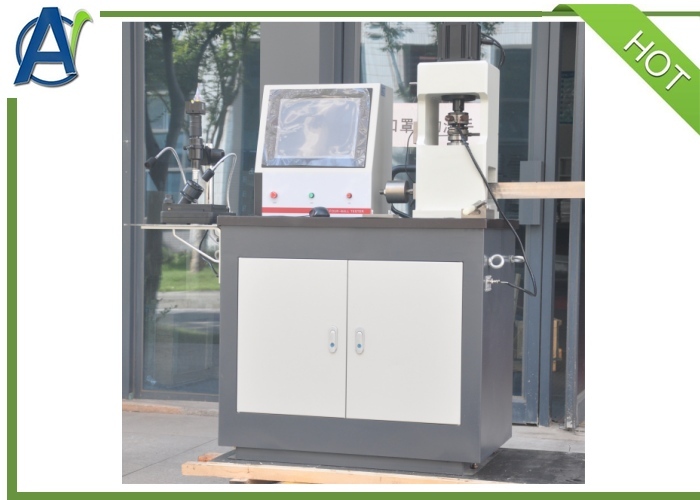

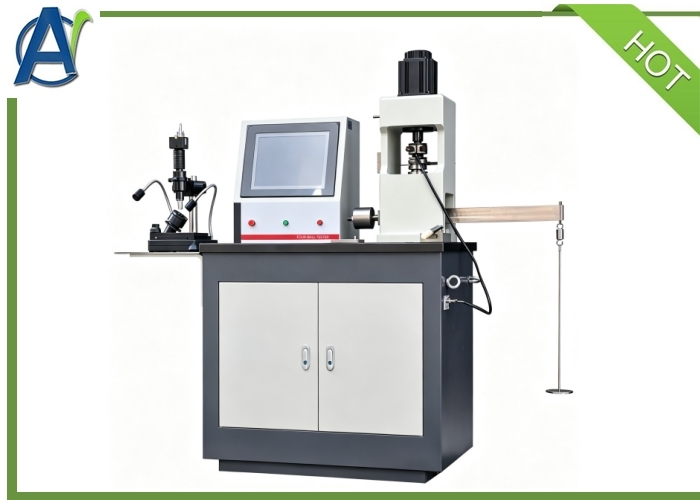

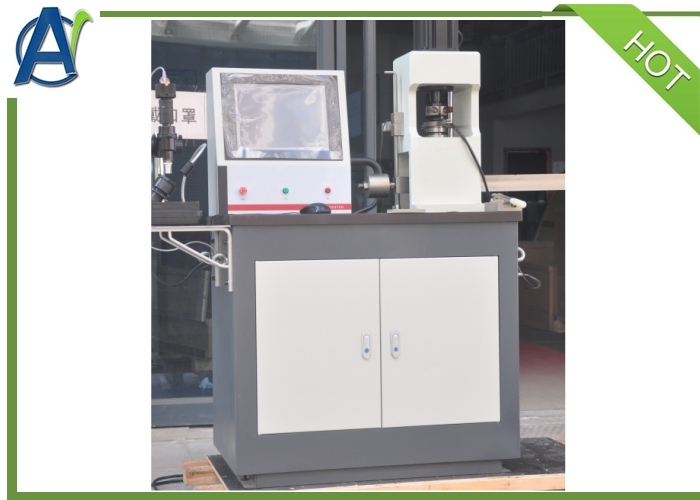

This 4 ball test machine uses four Φ12.7mm standard steel balls evaluate the load-bearing capacity and anti-wear performanceof lubricants (including oil film strength PB, sintering load PD, comprehensive wear value ZMZ, Long-term wear D and other indexes).
The influence of temperature on the lubricating performance of lubricants can also be measured.

1.Adopting double floating bearing technology, no-clearance guiding technology and buffer cross-balancing technology to ensure the precision of real-time tracking measurement of test force and friction force.
2.The main shaft is driven by a branded servo motor, and the related transmission components are also imported precision bearings.
3.Using independent embedded industrial controller, industrial metal touch screen, and collecting independent analysis modules, which can effectively guarantee the effect of the equipment on the performance of the control part when the equipment is high-speed or the oil film is ruptured and violently vibrated.
4.This Four Ball Wear Test Machine is convenient to realize the capture of the wear scar, the measurement and analysis of the friction surface profile, and directly save the wear spot images.
5.The test software can establish professional test programs according to different standards, and can also judge the Pb value according to the size of the wear scar, and has the function of saving and exporting data tables.
6.Large screen touch operation, real-time dynamic collection, professional data processing.
7.The expandable friction pair of the spindle meets a variety of related standards.
8.Long guide shaft, double bearing support, accurate test force, stable and reliable.
9.Special weight stop groove to prevent weight accidental falling off and causing damage.
10.3 million digital CCD probe pixels.

1. What's the delivery time?

   About 30days.

2. What's your payment terms?

   30% paid by T/T in advance,70% paid by by T/T before shipping.

3. What's your guarantee terms?

   The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4. Can you supply training?

   We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
