Specifications
Supply Ability :
20sets per month
Heating Method :
Liquid Bath Heating
Total Power :
2000W
Model Number :
AIC-0196
Language :
English
Payment Terms :
T/T,Western Union,L/C
Temperature Control Accuracy :
Ambient temperature ~ 200℃, ±0.1℃
Price :
USD$6,000~7,000
Temperature Control Mode :
Imported PID Digital Temperature Controller
Certification :
ISO9001
OEM Service :
Available
MOQ :
1 Set
Delivery Time :
30days
Dimension :
660mm*450mm*580mm
Timing Mode :
Digital Timer
Place of Origin :
China
Weight :
30kg
Packaging Details :
Plywood case
Working Positions :
4 Holes
Brand Name :
AI
Test Standard :
OCT981
Description

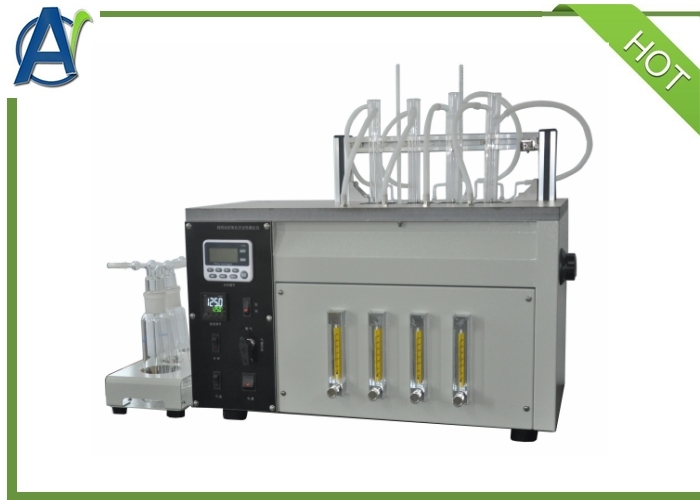

I. Lubricating Oil Oxidation Stability Tester

This lubricating oil oxidation stability tester is designed and manufactured strictly in accordance with OCT981 and China petrochemical industry standard SH/T 0196, used to test the oxidation resistance and oxidation stability of various industrial lubricants, engine oils and petroleum lubricating oils, widely applied in petrochemical laboratories, oil refineries and lubricant production factories.


II.Main technical characteristics

1. Bench-top instrument consisting of heating bath and precision flowmeter; holes are reserved on the stainless steel cover for placing sample bottles.
2. Stainless steel structure with ceramic coating.
3. Eco-friendly liquid bath heating design reduces oil fume harm to operators and delivers excellent thermal insulation performance.
4. Stainless steel heating element.
5. Air filter filled with glass wool.

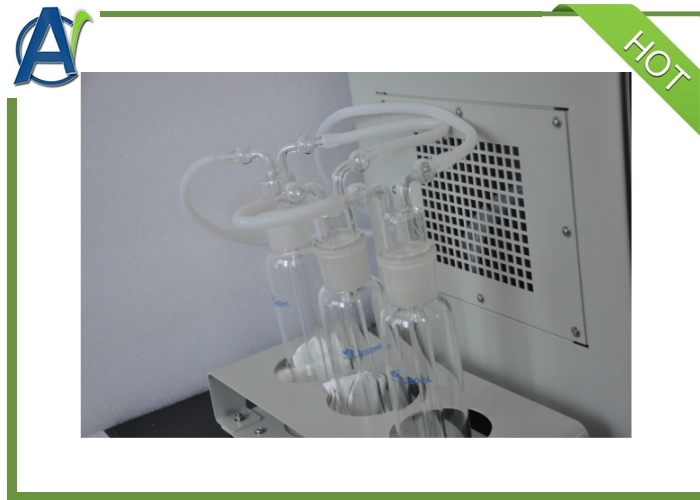

6. Controller purification system equipped with one sodium hydroxide bottle, one sulfuric acid washing bottle and one safety bottle separately.
7. Microprocessor thermostat with PID control and digital temperature readout, temperature accuracy up to 0.1℃, fitted with Pt100 RTD temperature sensor.
8. Operating temperature range: ambient temperature ~ 200℃; overheating and low liquid level protection safety devices are installed.

OCT981 SH/T0196 Lubricating Oil Oxidation Stability Tester Petroleum Oil Oxidation Resistance Test Apparatus

III. Main technical parameters and index

Test standard
SH/T0196, OCT981
Temperature Control Mode
Imported PID Digital Temperature Controller
Temperature Control Accuracy
Ambient temperature ~ 200℃, ±0.1℃
Heating Method
Liquid Bath Heating
Timing Mode
Digital Timer
Working Positions
4 Holes
Total Power
2000W
Dimension
660mm*450mm*580mm
Weight
30kg


FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
