Lubricating Oil Flowability Tester Complies with DIN51568 GB/T 12578 Lubricant Low Temperature Fluidity Test Equipment
Lubricating Oil Flowability Tester Complies with DIN51568 GB/T 12578 Lubricant Low Temperature Fluidity Test Equipment
Lubricating Oil Flowability Tester Complies with DIN51568 GB/T 12578 Lubricant Low Temperature Fluidity Test Equipment
Lubricating Oil Flowability Tester Complies with DIN51568 GB/T 12578 Lubricant Low Temperature Fluidity Test Equipment
Lubricating Oil Flowability Tester Complies with DIN51568 GB/T 12578 Lubricant Low Temperature Fluidity Test Equipment
Lubricating Oil Flowability Tester Complies with DIN51568 GB/T 12578 Lubricant Low Temperature Fluidity Test Equipment
Lubricating Oil Flowability Tester Complies with DIN51568 GB/T 12578 Lubricant Low Temperature Fluidity Test Equipment
Lubricating Oil Flowability Tester Complies with DIN51568 GB/T 12578 Lubricant Low Temperature Fluidity Test Equipment
Specifications
Model Number :
AIC-51568
Temperature Controller :
Omron
Price :
USD$4,000~5,000
Certification :
ISO9001
MOQ :
1 Set
Delivery Time :
30days
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
20sets per month
Warranty :
1full Year
Power Supply :
AC(220±10%)V, 50Hz
Temperature Control Range :
Rt~-80℃
Trandmark :
Advanced Instruments
Maximum Power Consumption :
1000W
Pressure Range :
980±10PA
Language :
English
Brand Name :
AI
Cooling Method :
Double Compressor
Test Method :
Pressure Tube Method
Place of Origin :
China
Test Standard :
DIN 51568, GB/T12578
Packaging Details :
Plywood case
Working Position :
2 Units
OEM Service :
Available
Description

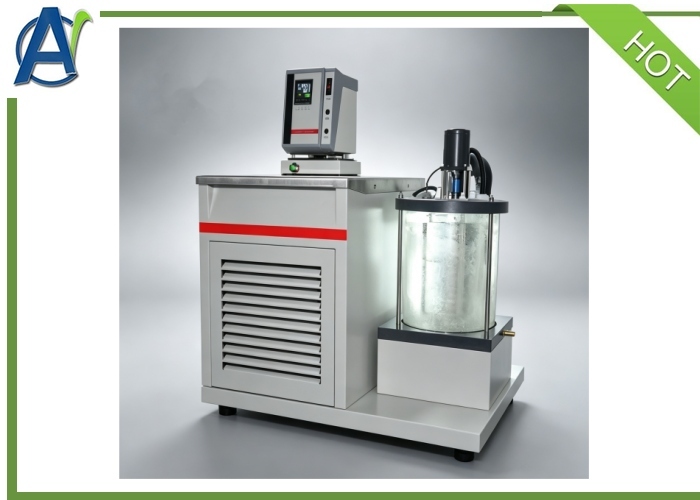

Lubricating Oil Flowability Tester

This Lubricating Oil Flowability Tester is applicable to determine ability to flow of lubricating oil.
The operating principle is to measure the rising speed of lubricating oil in the U-shaped pipe under constant pressure and specified low temperature conditions, which is expressed by the temperature when the rising speed under such conditions is 10mm/min.

II. Main Features

  1. The Flow Ability Tester adopts Double compressor cascade refrigeration ensures the supply of cooling capacity;
  2. Microcomputer temperature controller, digital display, accuracy ± 0.2 ºC PT100 sensor;
  3. Glass Dewar bottle for cold bath, good heat preservation effect;
  4. Split structure to reduce the damage caused by instrument vibration;
  5. The Flow Ability Tester provides Stainless steel heater;
  6. Evaporator adopts copper chrome plated coil;
  7. The back of the Dewar bottle is provided with sunlight for easy observation;
  8. Stainless steel clamping system can quickly clamp the test tube;
  9. Special glass test tube, meeting the standard requirements;
  10. The Flow Ability Tester display pressure digitally.
Lubricating Oil Flowability Tester Complies with DIN51568 GB/T 12578 Lubricant Low Temperature Fluidity Test Equipment

III. Specifications:

Applicable standards DIN 51568, GB/T12578
Power supply AC220V, 50Hz
Cooling method Double compressor
Temperature range RT~-80ºC
Temperature controlling Digital PID
Total power 1KW
Pressure range 980±10PA

FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
