ASTM D1264 SH/T 0109 Lubricating Grease Water Washout Tester Anti-Water Washing Performance Test Equipment for Grease
ASTM D1264 SH/T 0109 Lubricating Grease Water Washout Tester Anti-Water Washing Performance Test Equipment for Grease
ASTM D1264 SH/T 0109 Lubricating Grease Water Washout Tester Anti-Water Washing Performance Test Equipment for Grease
ASTM D1264 SH/T 0109 Lubricating Grease Water Washout Tester Anti-Water Washing Performance Test Equipment for Grease
ASTM D1264 SH/T 0109 Lubricating Grease Water Washout Tester Anti-Water Washing Performance Test Equipment for Grease
ASTM D1264 SH/T 0109 Lubricating Grease Water Washout Tester Anti-Water Washing Performance Test Equipment for Grease
ASTM D1264 SH/T 0109 Lubricating Grease Water Washout Tester Anti-Water Washing Performance Test Equipment for Grease
ASTM D1264 SH/T 0109 Lubricating Grease Water Washout Tester Anti-Water Washing Performance Test Equipment for Grease
Specifications
Model Number :
AIC-1264
Power Consumption :
600W
Operation :
Manual
MOQ :
1 Set
Delivery Time :
30days
Display :
Digital
Payment Terms :
T/T,Western Union,L/C
Language :
English
Application :
Lubricating Grease Testing
Price :
USD$3,000~5,000
OEM Service :
Available
Power Supply :
AC220V ±10% 50Hz
Supply Ability :
20sets per month
Test Standard :
ASTM D1264
Rotating Speed :
600 ± 30 Rpm
Flow Rate :
5 ± 0.5 Ml/S
Certification :
ISO9001
Working Temperature :
37.8 ± 0.1°c and 79 ± 0.1°c
Place of Origin :
China
Minimum Detection Concentration :
0.001mg/L
Packaging Details :
Plywood case
Temperature Accuracy :
±0.1°c
Brand Name :
AI
Temperature Range :
Ambient~100°c
Description

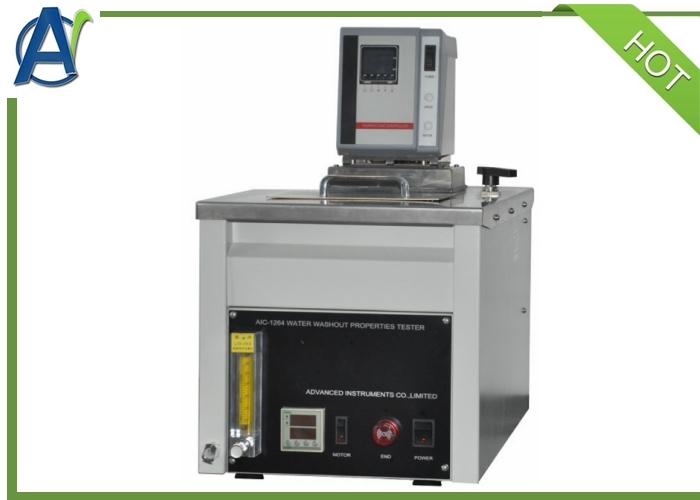

I. ASTM D1264 Lubricating Grease Water Washout Tester

This test method covers the evaluation of the resistance of a lubricating grease to washout by water from a bearing, when tested at 38°C and 79°C (100°F and 175°F) under the prescribed laboratory conditions. It is not to be considered the equivalent of service evaluation tests. Precision and bias was determined using grease ranging from NLGI 3 to 0 grades in the research report.

II.Main technical characteristics

  1. The case of water washout tester is made of good quality glazed steel plate,which is reliable.
  2. The bearing chamber and case can meet requirements of standard completely.
  3. The stainless steel tank has inlet and outlet pipes,the bearing chamber is aluminum,copper chromium circulating pump,1/4 HP motor.
  4. The heater of water washout tester is stainless steel.
  5. The temperature controller is integrated with tempeature controlling and display.It also has micro-processor PID controller.The accuracy is ±0.1°C,tempeature probe is PT100 RTD,working tempeature is ambient~100°C.The working tempeature is usually 37.8 ± 0.1°C and 79 ± 0.1°C.
  6. The rotation speed of motor with belt is 600 ± 30 rpm.
  7. The design of motor and belt can start the circulating pump with start measuring bearing.
  8. The regulator and by-pass valve can adjust the flow rate of 1mm capillary to 5 ± 0.5 ml/s.
ASTM D1264 SH/T 0109 Lubricating Grease Water Washout Tester Anti-Water Washing Performance Test Equipment for Grease

III. Main technical parameters and index

Test standard
ASTM D1264
Power supply
AC220V /50HZ
Temp.control and display accuracy
±0.1°C
Working temperature
ambient~100°C
Usual working temperature
37.8 ± 0.1°C and 79 ± 0.1°C
Rotating speed of motor with belt
600 ± 30 rpm
Flow rate of capillary
5 ± 0.5 ml/s
Total Power
600W


FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
