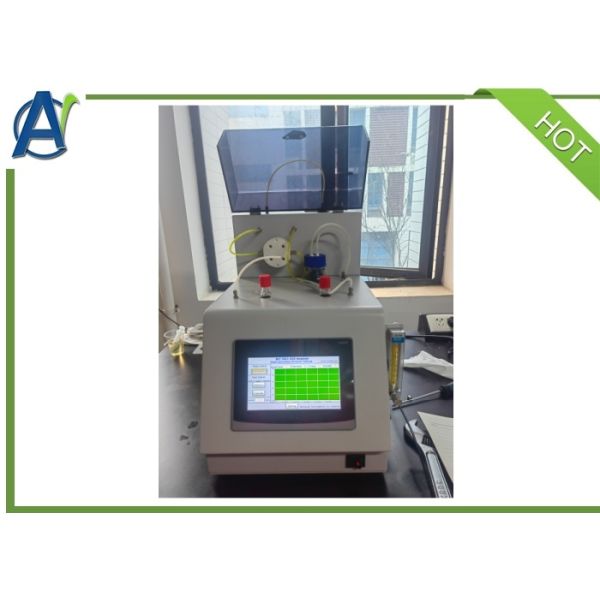

ASTM D7621 & ISO 8217 Marine Fuel Oil Hydrogen Sulfide Content Analyzer
ASTM D7621 & ISO 8217 Marine Fuel Oil Hydrogen Sulfide Content Analyzer
ASTM D7621 & ISO 8217 Marine Fuel Oil Hydrogen Sulfide Content Analyzer
ASTM D7621 & ISO 8217 Marine Fuel Oil Hydrogen Sulfide Content Analyzer
ASTM D7621 & ISO 8217 Marine Fuel Oil Hydrogen Sulfide Content Analyzer
ASTM D7621 & ISO 8217 Marine Fuel Oil Hydrogen Sulfide Content Analyzer
ASTM D7621 & ISO 8217 Marine Fuel Oil Hydrogen Sulfide Content Analyzer
ASTM D7621 & ISO 8217 Marine Fuel Oil Hydrogen Sulfide Content Analyzer
Specifications
Brand Name :
AI
Model Number :
AIC-7621
Certification :
ISO
Place of Origin :
China
MOQ :
1 full set
Price :
USD$35000~40000
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Plywood Case
Test Standard :
ASTM D7621,ISO 8217, IP570
Warranty :
1full Year
Trandmark :
Advanced Instruments
OEM Service :
Available
Language :
English
Test Method :
Rapid Liquid Phase Extraction
Measuring Range :
0-250mg/Kg H2s
Viscosity Range :
Reach 3000mm2/S
Test Time :
15 Minutes
Sample Quantity :
1ml,2ml or 5m
Dilution Quantity :
20ml
Total Power :
300w
Power Supply :
AC220V±10V 50Hz
Function :
Determination of Hydrogen Sulfide in Fuel Oils
Display :
LCD
Operation :
Automatic
Language of Software :
English
Quantity of Test Tube :
6 Pieces
Description
Hydrogen Sulfide Content Tester
I. Introduction

This H2S Hydrogen Sulfide Content Tester is fully designed according to requirements of ASTM and IP standards. Dilute few sample with dilution,heat the sample to 60ºC with metal bath being controlled under precise temperature,and release H2S in sample.Using clean air as carrier gas,carry H2S into measuring cell of electro-chemical sensor,and get the instant concentration of H2S.Air flow is measured and controlled by digital mass flow meter,and when H2S in sample is released completely,the Hydrogen Sulfide Content Tester can calculate the cumulative concentration of H2S.

II. Features
  • Computer-controlled, automatic measurement and automatic result calculation.
  • Air flow is measured and controlled by a digital mass flow meter.
  • The instrument is designed and manufactured in accordance with ASTM and IP test standard requirements.
  • Adopts semiconductor refrigeration gas-phase processor with fast cooling speed.
  • Equipped with Caudan glass reaction test tube for simple and convenient operation.
  • Built-in Luer-type sintered filter filled with special adsorbent.
  • Adopts Caudan H2S200 detection system to support direct reading.
  • Equipped with quick screwing gland with self-sealing performance.
ASTM D7621 & ISO 8217 Marine Fuel Oil Hydrogen Sulfide Content Analyzer
III. Technical specifications
Applicable standard ASTM D7621,ISO 8217, IP570
Measuring range 0-250mg/kg H2S
Working temperature 15-30ºC,RH80%
Viscosity range reach 3000mm²/s
Test time 15 minutes
Measuring method electro-chemical sensor
Sample quantity 1ml,2ml,5m(depends on concentration of H2S)
Dilution quantity 20ml
Power supply AC220V±10V 50Hz
Power 300W
FAQ
  1. What's the delivery time? About 30days.
  2. What's your payment terms? 30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms? The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training? We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
