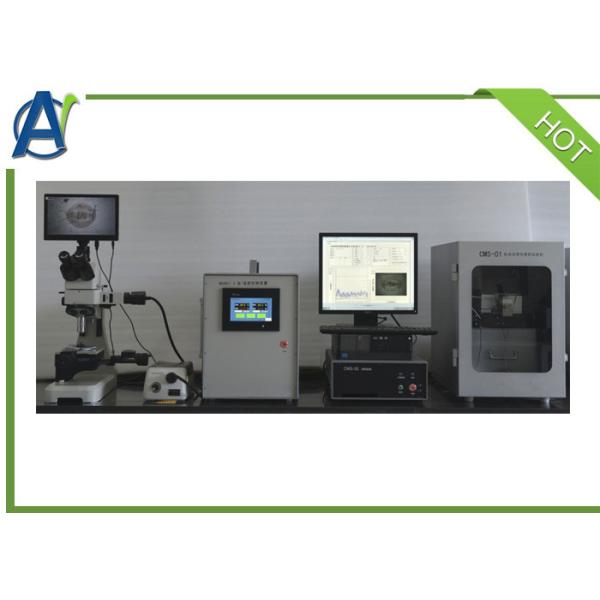

ASTM D6079 Diesel Fuel High Frequency Reciprocating Rig For Lubricity Measuring
ASTM D6079 Diesel Fuel High Frequency Reciprocating Rig For Lubricity Measuring
ASTM D6079 Diesel Fuel High Frequency Reciprocating Rig For Lubricity Measuring
ASTM D6079 Diesel Fuel High Frequency Reciprocating Rig For Lubricity Measuring
ASTM D6079 Diesel Fuel High Frequency Reciprocating Rig For Lubricity Measuring
ASTM D6079 Diesel Fuel High Frequency Reciprocating Rig For Lubricity Measuring
ASTM D6079 Diesel Fuel High Frequency Reciprocating Rig For Lubricity Measuring
ASTM D6079 Diesel Fuel High Frequency Reciprocating Rig For Lubricity Measuring
Specifications
Brand Name :
AI
Model Number :
HFRR
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 Set High Frequency Reciprocating Rig
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
50 days
Packaging Details :
High Frequency Reciprocating Rig packed in Hardboard
Supply Ability :
100 sets/motnh
Test Standard :
ASTM D6079, ISO12156, SH/T0765
Power supply :
AC 220V±10%, 50 Hz
Test temperature :
ambient~150℃
Test load :
200±1g
Power consumption :
1000W
Surface area of oil tank :
600±100mm2
Volume of oil sample :
2.0±0.2ml
Diameter of test ball :
6mm
Description

High Frequency Reciprocating Rig

Summary
All diesel fuel injection equipment uses diesel as a lubricant to some extent. Excessive friction causes wear and tear to shorten the life of engine components such as diesel fuel injection pumps and fuel injectors. Diesel lubrication is one of the reasons. The experimental results of High Frequency Reciprocating Rig have a good correlation with the lubrication problems of diesel and related equipment, and can properly predict the lubricating performance of diesel.
I.Main Features

1, Automatically controlled by computuer, windows operating system, Chinese or English interface, automatic shutdown after the test is completed;
2, The standard test steel ball, diameter 6mm, the material is AISI E-52100 steel, Rockwell hardness HRC is 58~66, surface roughness Ra<0.05 μm;
3. The standard test piece is made of round steel conforming to AISIE-52100 specification, the Vickers hardness "HV30" grade value is 190-210, and the surface roughness Ra<0.02μm;
4, HFRR High Frequency Reciprocating Rig is equipped with automatic temperature and humidity control device;
5, Microcomputer temperature controller, PID program temperature control, PT100 temperature sensor, high precision;
6. The vibration exciter produced by aerospace technology has high precision of stroke frequency;
7, Electronic image analysis microscope, can be magnified 100 times, indexing 1μm, supporting special analysis software;
8. Convenient fixture device for easy operation and cleaning;
9. An ultrasonic cleaner is supplied with HFRR Diesel Fuel High Frequency Reciprocating Rig.

II. Main technical specifications
Item Specification
Model HFRR High Frequency Reciprocating Rig
Applicable standard ASTM D6079 ,ISO12156, SH/T0765
Heating method Metal bath
Tempeature control accuracy ±0.1℃
Test temperature ambient~150℃,arbitrary adjustment
Test load 200±1g,including weight 0.1~1KG
Surface area of oil tank 600±100mm2
Diameter of test ball 6mm
Volume of oil sample 2.0±0.2ml
Stroke 1.0±0.02mm
Frequency 50Hz
Controll method Automatically controlled by computer
Power supply AC220V 50HZ
Total power consumption 1000W

ASTM D6079 Diesel Fuel High Frequency Reciprocating Rig For Lubricity Measuring
