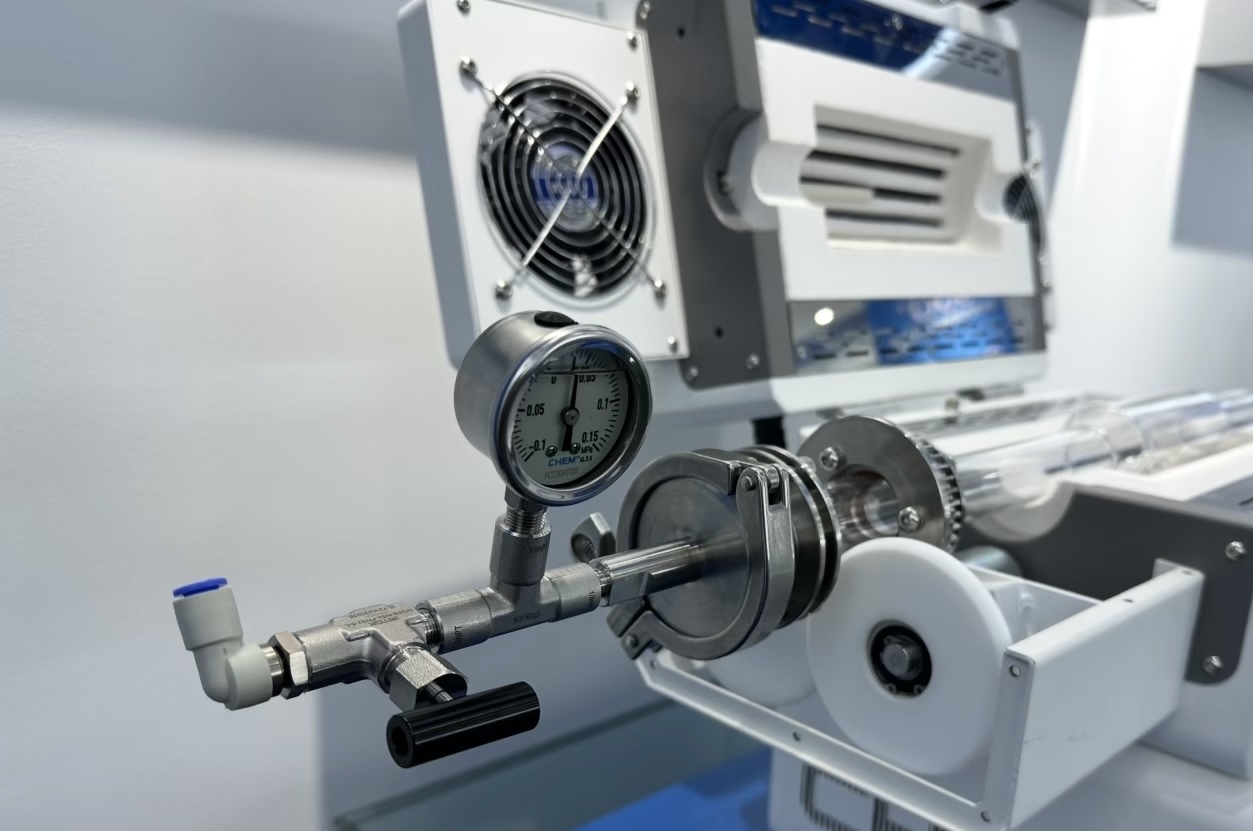

High Efficiency Laboratory Rotary Kiln with 130℃ Maximum Furnace Temperature and Large Handling Capacity for Chemical Industry
High Efficiency Laboratory Rotary Kiln with 130℃ Maximum Furnace Temperature and Large Handling Capacity for Chemical Industry
High Efficiency Laboratory Rotary Kiln with 130℃ Maximum Furnace Temperature and Large Handling Capacity for Chemical Industry
High Efficiency Laboratory Rotary Kiln with 130℃ Maximum Furnace Temperature and Large Handling Capacity for Chemical Industry
High Efficiency Laboratory Rotary Kiln with 130℃ Maximum Furnace Temperature and Large Handling Capacity for Chemical Industry
High Efficiency Laboratory Rotary Kiln with 130℃ Maximum Furnace Temperature and Large Handling Capacity for Chemical Industry
Specifications
Purpose :
laboratory
Model Number :
rotary kiln
Function :
roasting test of materials
Payment Terms :
T/T,L/C
keyword :
Laboratory Rotary Kiln
Delivery Time :
1-3 working day
Feature :
high efficiency
MOQ :
1
Packaging Details :
Cartons
Material :
Mine
Price :
negotiate
Name :
Mining Clay Rotary Kiln For Laboratory Industry
Brand Name :
Y&X
Application :
chemical industry
Certification :
ISO9001
Advantage :
handling capacity is large
Place of Origin :
China
Description
Mining Clay Laboratory Rotary Kiln For Chemical Industry
Main Uses and Characteristics

This laboratory rotary kiln is suitable for roasting and sintering test of materials in metallurgy, geology, mining, chemical industry, building materials and scientific research institutions. The machine features continuous feeding and discharging with substantial material handling capacity.

The furnace tube ends are sealed, allowing introduction of necessary gases for protection, oxidation and reduction during operation. Compared to traditional muffle furnaces and tube furnaces, this machine's rotating furnace tube constantly turns samples during processing, resulting in superior processing quality, higher efficiency, and experimental data that more closely resembles production conditions.

Technical Specifications
Parameter Item Unit Laboratory Rotary Kiln
Rated Maximum Furnace Temperature ℃ 130 (Continuously adjustable, automatic control)
Furnace Tube Speed Rev/min 0-3.3 (Stepless speed regulation)
Furnace Tube Inclination ℃ 0-10 (Adjustable)
Furnace Tube Size
92/100×1200 (Inner diameter/outer diameter*length)
Rated Furnace Power kw 24
Machine Weight kg 775
Rated Motor Power kw 0.6
Controller Weight kg 160
High Efficiency Laboratory Rotary Kiln with 130℃ Maximum Furnace Temperature and Large Handling Capacity for Chemical Industry
Frequently Asked Questions
Q1: What's the standard length of your profiles and tubes?
A: The standard length of profiles and tube are 5800mm to suit for small container. We can also cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.
Q2: What's your MOQ?
A: We have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less than USD 1000 for custom handling cost purposes.
Q3: What is your payment terms?
A: The payment terms we accept are T/T or irrevocable L/C at sight, with T/T preferred.
Q4: What's the lead time for small order and mass production?
A: 1-3 working days for small orders, and 3-10 working days for mass production of material. The final lead time will be subject to each individual invoice.
Q5: What certification do you have?
A: We have ISO 9001:2008 certificate.
