High Temperature 250℃ Laboratory Stirrer with Precise Temperature Control and Brushless DC Motor
High Temperature 250℃ Laboratory Stirrer with Precise Temperature Control and Brushless DC Motor
High Temperature 250℃ Laboratory Stirrer with Precise Temperature Control and Brushless DC Motor
High Temperature 250℃ Laboratory Stirrer with Precise Temperature Control and Brushless DC Motor
High Temperature 250℃ Laboratory Stirrer with Precise Temperature Control and Brushless DC Motor
High Temperature 250℃ Laboratory Stirrer with Precise Temperature Control and Brushless DC Motor
Specifications
Model Number :
Heating Magnetic Stirrer with Water Bath
Application :
Laboratory Heating & Mixing
Delivery Time :
1-3 working days
Maximum Temperature :
250℃
Packaging Details :
Standard export packing is provided, and customized packing is available upon request.
Speed Range :
100–2000 rpm
Price :
Negotiate
Temperature Control :
PID Intelligent Control
Motor :
Brushless DC Motor
Certification :
Iso 9001
Payment Terms :
T/T,L/C
Temperature Sensor :
PT100
Place of Origin :
China
Heating Method :
Electric Heating
MOQ :
1
Stirring Method :
Magnetic Stirring
Brand Name :
Y&X
Product Name :
Heating Magnetic Stirrer with Water Bath
Description

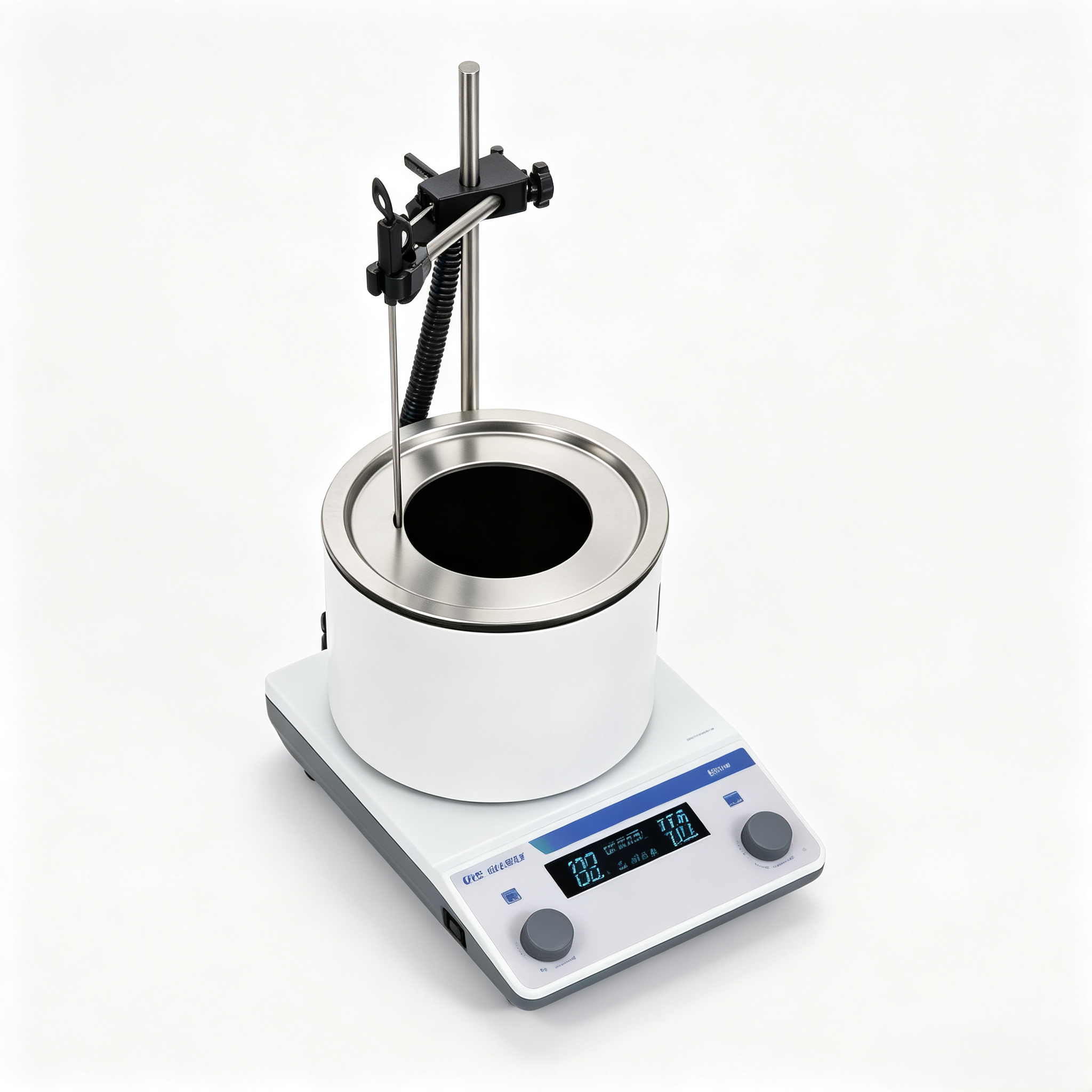

High Temperature Laboratory Magnetic Stirrer with Precise Temperature Control
Product Overview

The MSA Series Heating Magnetic Stirrer with Water Bath is a multifunctional laboratory instrument designed for water bath heating and magnetic stirring applications.

Using advanced magnetic drive technology, the stirrer provides stable and uniform mixing without mechanical contact. The integrated heating system allows accurate temperature adjustment according to experimental requirements, ensuring stable test conditions and reliable experimental results.

With precise temperature control, adjustable stirring speed, intelligent PID regulation, and multiple safety protection functions, the MSA Series magnetic stirrer is widely used in mineral laboratories, chemical analysis, scientific research, and sample preparation processes.

High Temperature 250℃ Laboratory Stirrer with Precise Temperature Control and Brushless DC Motor

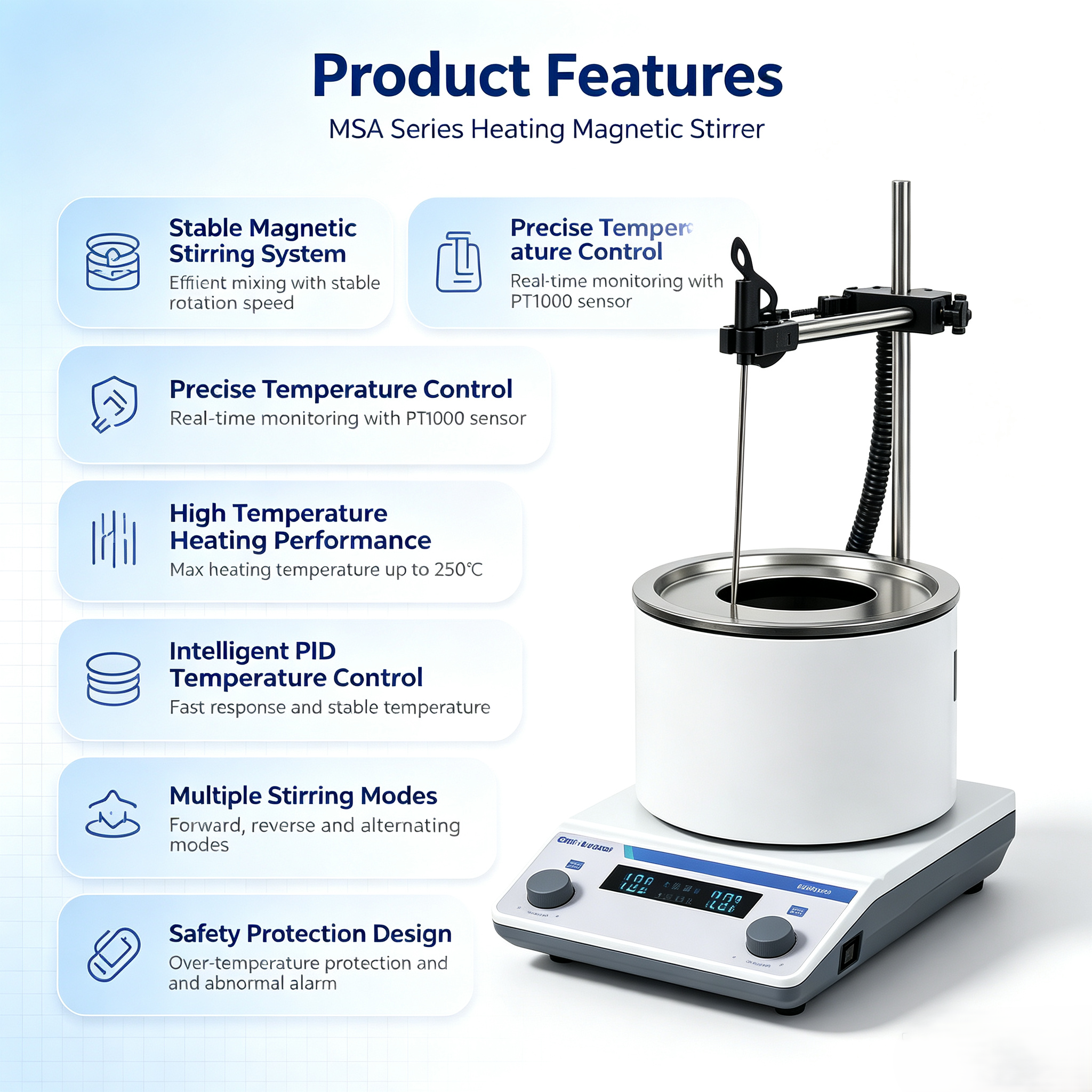

Product Features
High Temperature 250℃ Laboratory Stirrer with Precise Temperature Control and Brushless DC Motor
Stable Magnetic Stirring System
  • High-performance magnetic drive system for efficient mixing
  • Stable rotation speed ensures uniform sample mixing
  • Suitable for long-time laboratory operation
Precise Temperature Control
  • Supports connection with PT1000 temperature sensors
  • Real-time temperature monitoring during operation
  • Temperature accuracy up to ±1℃ with PT100 control
  • Ensures consistent experimental conditions
High Temperature Heating Performance
  • Maximum heating temperature up to 250℃
  • Suitable for various laboratory heating requirements
  • Ideal for temperature-sensitive sample preparation
Intelligent PID Temperature Control
  • Advanced PID control system improves temperature stability
  • Fast heating response and reduced temperature fluctuation
  • Provides accurate and reliable temperature management
Multiple Stirring Modes

The equipment supports:

  • Forward rotation
  • Reverse rotation
  • Alternating forward and reverse rotation

Different stirring modes can be selected according to experimental requirements, improving mixing efficiency.

Safety Protection Design
  • Independent safety circuit design
  • Over-temperature automatic protection
  • Heating abnormal alarm function
  • Enhanced operational safety for laboratory users
Why Choose MSA Series Magnetic Stirrer?
Precise Control: Digital control of temperature and stirring speed enables accurate experimental parameter adjustment.
Reliable Performance: High-quality components and stable control technology ensure long-term operation.
Easy Operation: Automatic parameter memory reduces repeated settings and improves working efficiency.
Wide Applications: Suitable for mineral testing, chemical experiments, research laboratories, and industrial R&D centers.
Applications

The MSA Series Heating Magnetic Stirrer is widely used in:

✓ Mineral flotation laboratories
✓ Geological testing laboratories
✓ Chemical analysis
✓ Sample preparation
✓ Scientific research institutions
✓ University laboratories
✓ Industrial R&D centers
High Temperature 250℃ Laboratory Stirrer with Precise Temperature Control and Brushless DC Motor
Technical Parameters
Parameter Specification
Model LC-MSA-HP
Power Supply AC220V / 50Hz
Motor Power 850W
Display Type LCD
Speed Range 100-2000 rpm
Timer Range 1-99h59 min
Heating Temperature Range RT-250℃
Temperature Accuracy ±3℃ (after stable operation for 20 min)
PT100 Temperature Accuracy ±1℃
Maximum Stirring Capacity (H₂O) 1.5L
Bath Material Aluminum Alloy + PTFE Coating
Bath Size Φ165 * 80mm
Motor Type Brushless DC Motor
Net Weight 3.5kg
Dimensions (L*W*H) 308 * 190 * 183mm
Customization Service

Y&X provides customized solutions according to different laboratory requirements, including:

  • Customized stirring parameters
  • Different temperature control solutions
  • Special sample testing requirements
  • OEM/ODM service support
