SZ-Φ200 Laboratory Vibrating Sieve Shaker with Dry & Wet Screening 2 Layers and 48 μm Minimum Particle Size
SZ-Φ200 Laboratory Vibrating Sieve Shaker with Dry & Wet Screening 2 Layers and 48 μm Minimum Particle Size
SZ-Φ200 Laboratory Vibrating Sieve Shaker with Dry & Wet Screening 2 Layers and 48 μm Minimum Particle Size
SZ-Φ200 Laboratory Vibrating Sieve Shaker with Dry & Wet Screening 2 Layers and 48 μm Minimum Particle Size
SZ-Φ200 Laboratory Vibrating Sieve Shaker with Dry & Wet Screening 2 Layers and 48 μm Minimum Particle Size
SZ-Φ200 Laboratory Vibrating Sieve Shaker with Dry & Wet Screening 2 Layers and 48 μm Minimum Particle Size
Specifications
Minimum Particle Size :
48 μm
Price :
Negotiate
Certification :
Iso 9001
Dimension :
590×500×370 mm
Payment Terms :
T/T,L/C
Usage :
Laboratory Testing
Model Number :
Vibrating Sieve Shaker
Weight :
20 kg
Delivery Time :
1-3 working days
Packaging Details :
Standard export packing is provided, and customized packing is available upon request.
Number of Layers :
2 Layers
Place of Origin :
China
Power :
25W
MOQ :
1
Product Name :
Vibrating Sieve Shaker
Brand Name :
Y&X
Description
Laboratory Vibrating Sieve Shaker SZ-Φ200 Dry & Wet Screening Machine 2 Layers Test Sieve for Particle Size Classification
Product Overview

SZ-Φ200 Laboratory Vibrating Sieve Shaker is a compact and efficient screening equipment designed for accurate particle size classification of minerals, powders, chemicals and granular materials.

With dry and wet screening capability, 2-layer sieve structure and Φ200 mm standard test sieves, this machine provides reliable separation results for laboratory testing, mineral processing research and quality control applications.

Its compact design, stable vibration performance and easy operation make it an ideal choice for mining laboratories, research institutes and industrial testing centers.

SZ-Φ200 Laboratory Vibrating Sieve Shaker with Dry & Wet Screening 2 Layers and 48 μm Minimum Particle Size
Key Features
SZ-Φ200 Laboratory Vibrating Sieve Shaker with Dry & Wet Screening 2 Layers and 48 μm Minimum Particle Size

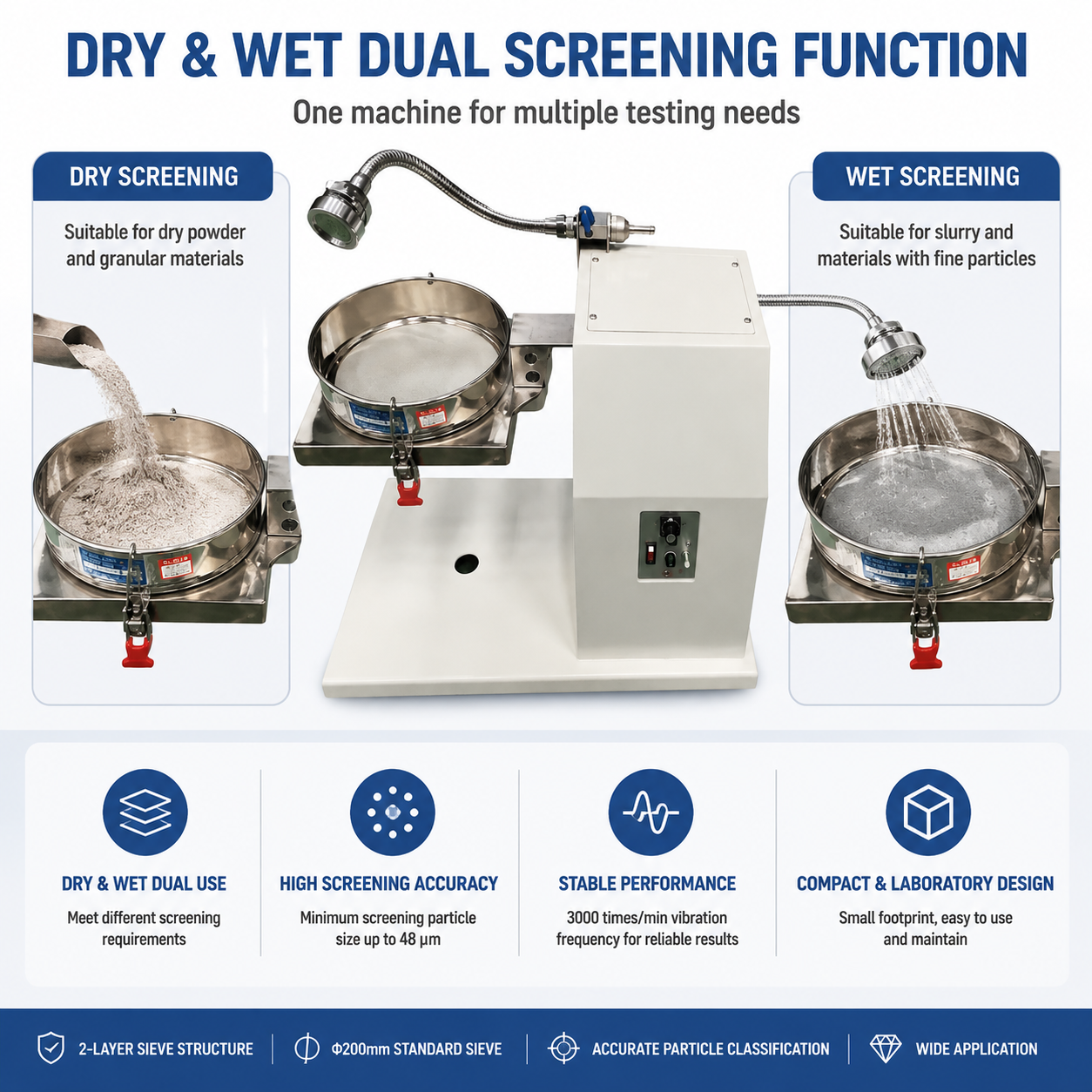

  • Dual Dry & Wet Screening Function: Supports both dry and wet sieving methods for different material testing requirements.
  • Accurate Particle Size Classification: Provides reliable screening performance with minimum particle size separation down to 48 μm.
  • 2-Layer Test Sieve Structure: Compatible with Φ200 mm standard laboratory sieves for efficient classification.
  • Compact Laboratory Design: Small footprint and lightweight structure suitable for laboratory environments.
  • Stable Vibration System: Ensures uniform screening and repeatable testing results.
  • Easy Operation & Maintenance: Simple control design reduces operation difficulty.

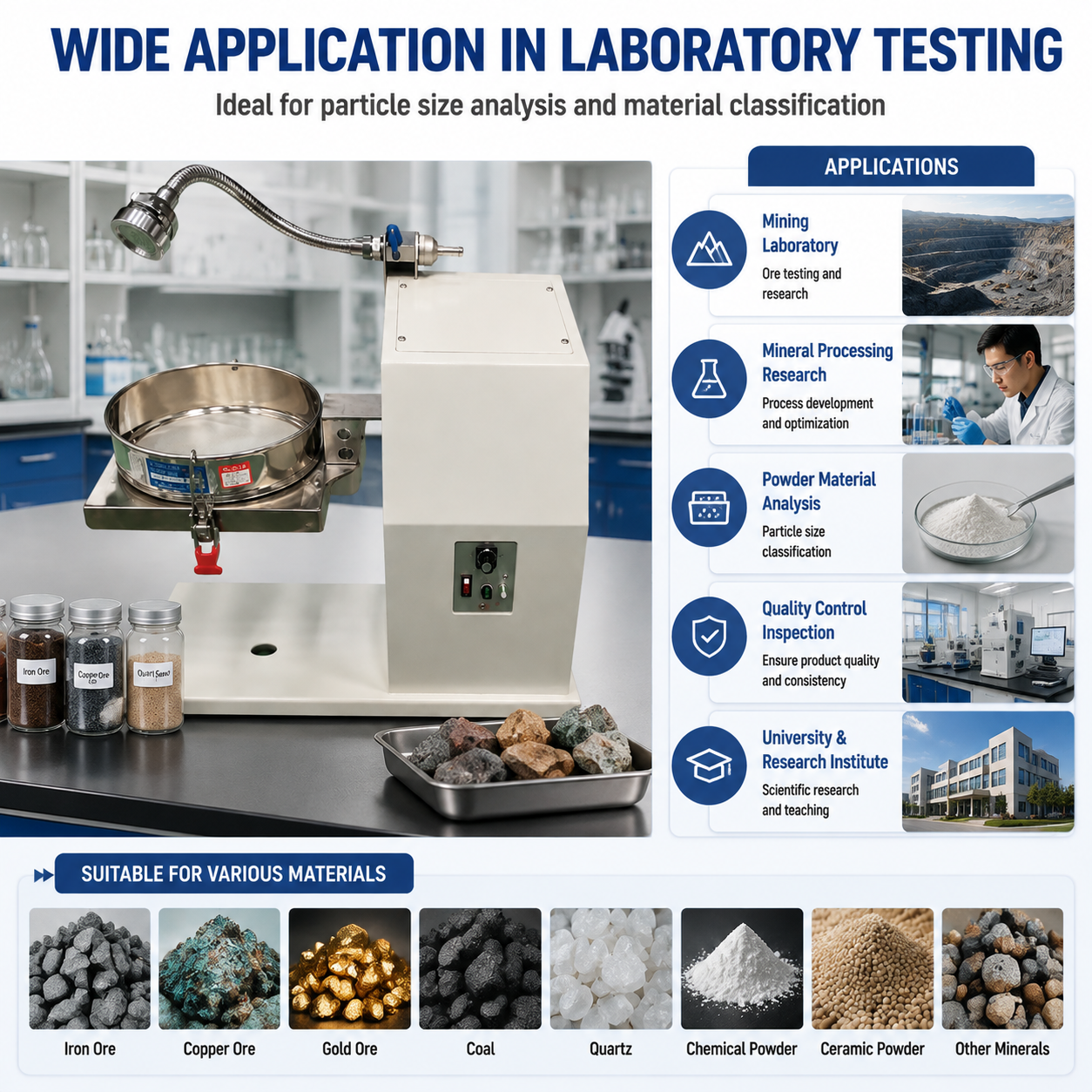

Applications
  • Mining laboratory testing
  • Mineral processing research
  • Geological sample analysis
  • Powder material classification
  • Chemical material testing
  • Metallurgical laboratory
  • Quality control inspection
SZ-Φ200 Laboratory Vibrating Sieve Shaker with Dry & Wet Screening 2 Layers and 48 μm Minimum Particle Size

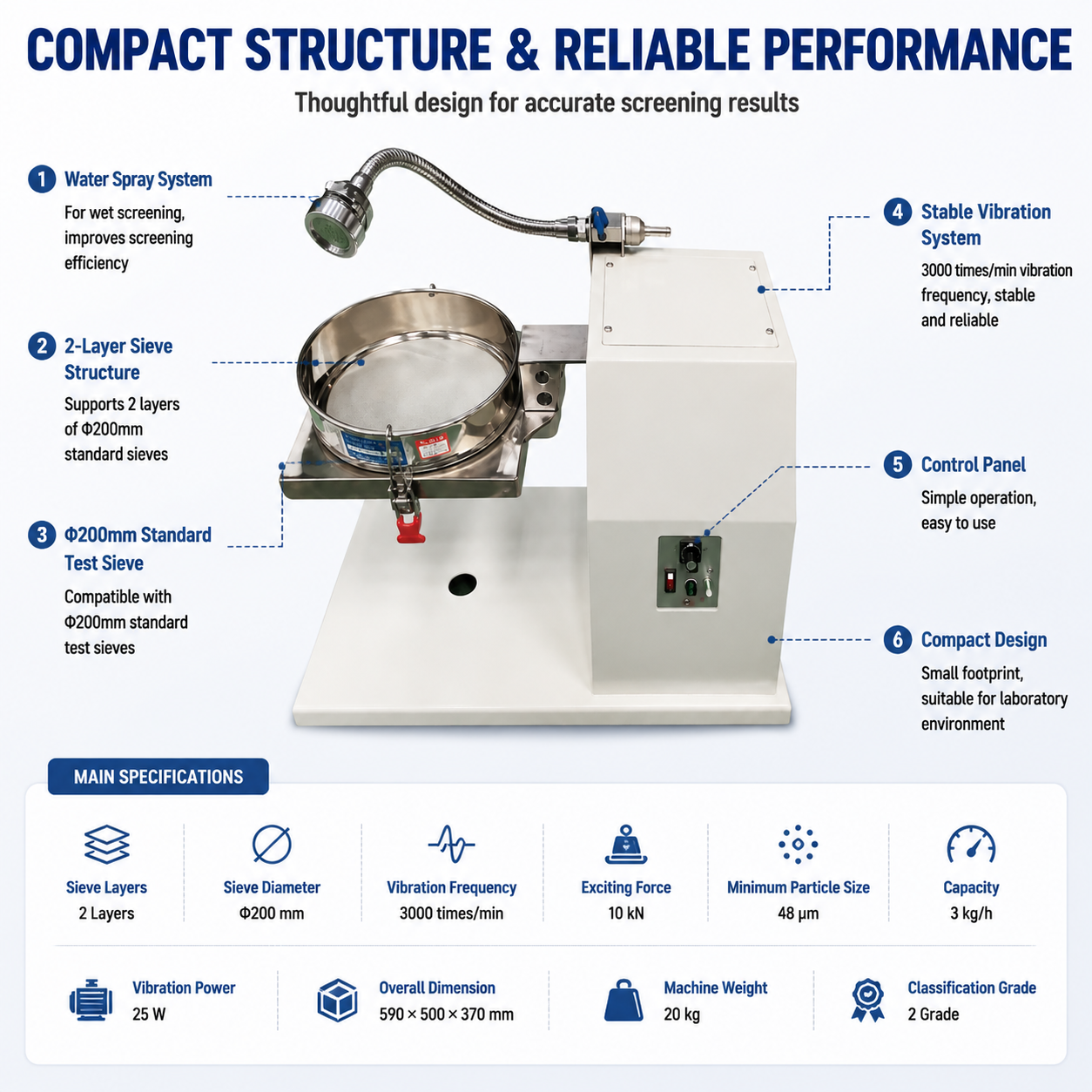

Technical Parameters
ItemUnitValue
Model-SZ-Φ200
Sieve LayerLayer2
Standard Sieve SpecificationmmΦ200
Vibration FrequencyTimes/min3000
Exciting Forcekn10
Classification GradeGrade2
Minimum Screening Particle Sizeμm48
Production Capacitykg/h3
Vibration PowerW25
Overall Dimension (L*W*H)mm590*500*370
Machine Weightkg20
Packaging & Trade Information

Condition: New

After-sales Service: Online Technical Support

Customization: Available

Lead Time: Negotiable

Packing: Standard Export Wooden Case / Carton Packing

Frequently Asked Questions
Q1: What is the SZ-Φ200 vibrating sieve machine used for?
The SZ-Φ200 vibrating sieve machine is mainly used for laboratory particle size classification and material screening. It is suitable for mineral samples, powders, chemicals, ceramics, and other granular materials in mining laboratories, research institutes, and quality control departments.
Q2: Can this sieve shaker perform both dry and wet screening?
Yes. The SZ-Φ200 is designed for both dry and wet screening applications. It can be used for dry powder screening as well as wet screening of fine particles or slurry materials, providing flexible testing solutions.
Q3: What is the sieve size and how many sieve layers does it support?
This laboratory sieve shaker supports 2 sieve layers and is compatible with Φ 200 mm standard test sieves, allowing efficient particle classification and analysis.
Q4: What is the minimum particle size that can be screened?
The minimum screening particle size can reach 48 μm, making it suitable for fine powder and mineral particle classification.
Q5: Is this equipment suitable for mining laboratory applications?
Yes. The SZ-Φ200 vibrating sieve shaker is widely used in mining laboratories for ore sample preparation, particle size analysis, mineral processing research, and quality control testing.
Q6: Can you provide customized solutions or OEM service?
Yes. We can provide OEM service and customized solutions according to different screening requirements, including sieve specifications, power supply, and application conditions.
