XSZ-600×300 Double Layer Vibrating Screen Machine with 1400 times/min Vibration Frequency for Laboratory Mineral Screening
XSZ-600×300 Double Layer Vibrating Screen Machine with 1400 times/min Vibration Frequency for Laboratory Mineral Screening
XSZ-600×300 Double Layer Vibrating Screen Machine with 1400 times/min Vibration Frequency for Laboratory Mineral Screening
XSZ-600×300 Double Layer Vibrating Screen Machine with 1400 times/min Vibration Frequency for Laboratory Mineral Screening
Specifications
Application :
Mineral Screening
Model Number :
Double Layer Vibrating Screen
Vibration Frequency :
1400 times/min
Certification :
Iso 9001
Capacity :
5 t/h
Weight :
55kg
Motor Power :
0.55 kW
Max Feeding Size :
44mm
Price :
Negotiate
Delivery Time :
1-3 working days
MOQ :
1
Product Name :
Double Layer Vibrating Screen
Brand Name :
Y&X
Packaging Details :
Standard export packing is provided, and customized packing is available upon request.
Screen Size :
600×300 mm
Place of Origin :
China
Payment Terms :
T/T,L/C
Screen Area :
0.18 m²
Description
Double Layer Vibrating Screen Machine XSZ-600×300 Laboratory Mineral Screening Equipment
Product Overview

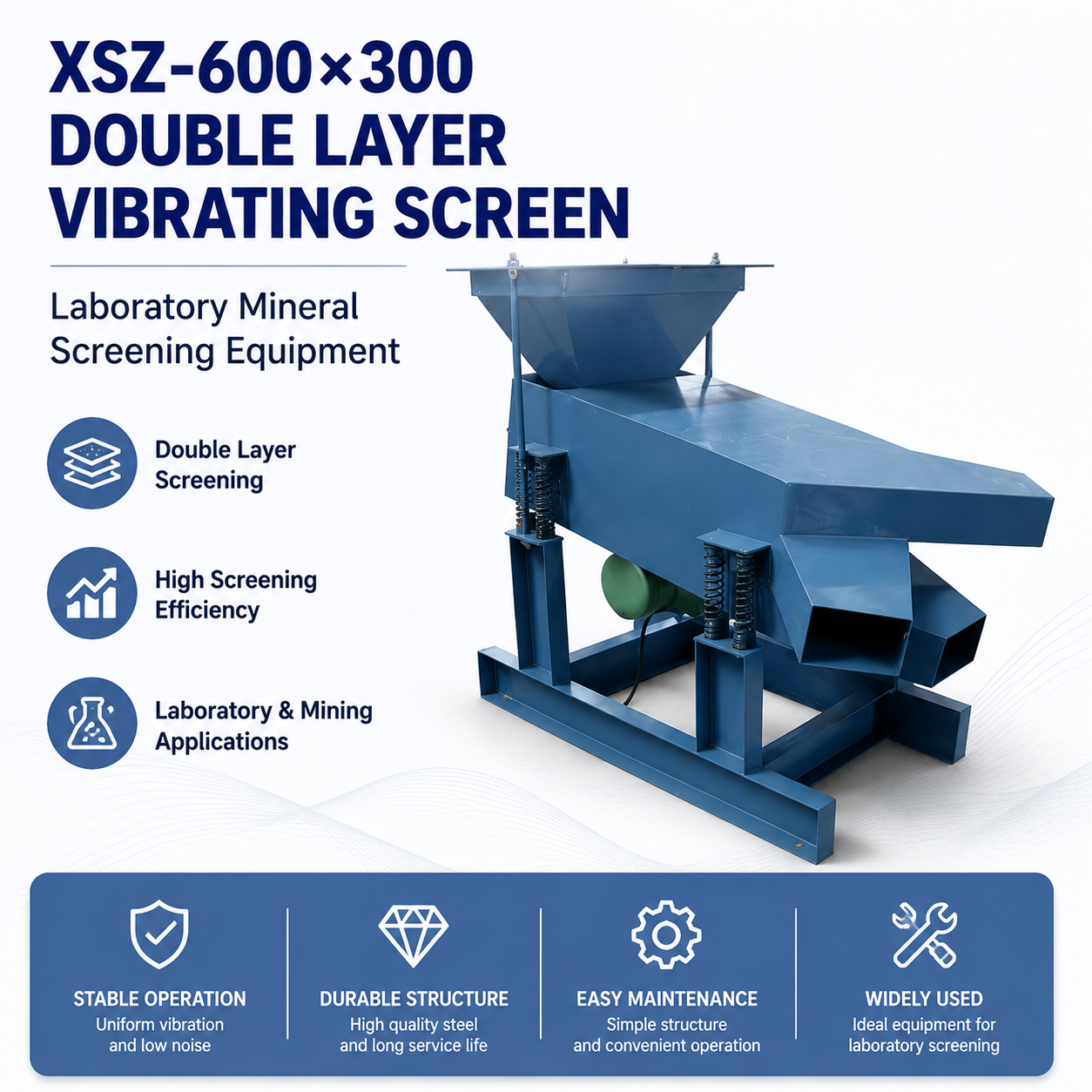

XSZ-600×300 Double Layer Vibrating Screen Machine

The XSZ-600×300 double layer vibrating screen is a professional laboratory screening equipment designed for scientific research institutes, mining laboratories, metallurgical laboratories and mineral processing plants.

This vibrating sieve can classify materials into two or three particle size grades according to different screening requirements. The screen mesh can be quickly replaced, making it suitable for various experimental screening applications.

With compact structure, stable operation and convenient maintenance, it is an ideal equipment for mineral sample preparation and particle size analysis.

XSZ-600×300 Double Layer Vibrating Screen Machine with 1400 times/min Vibration Frequency for Laboratory Mineral Screening

Key Features
XSZ-600×300 Double Layer Vibrating Screen Machine with 1400 times/min Vibration Frequency for Laboratory Mineral Screening

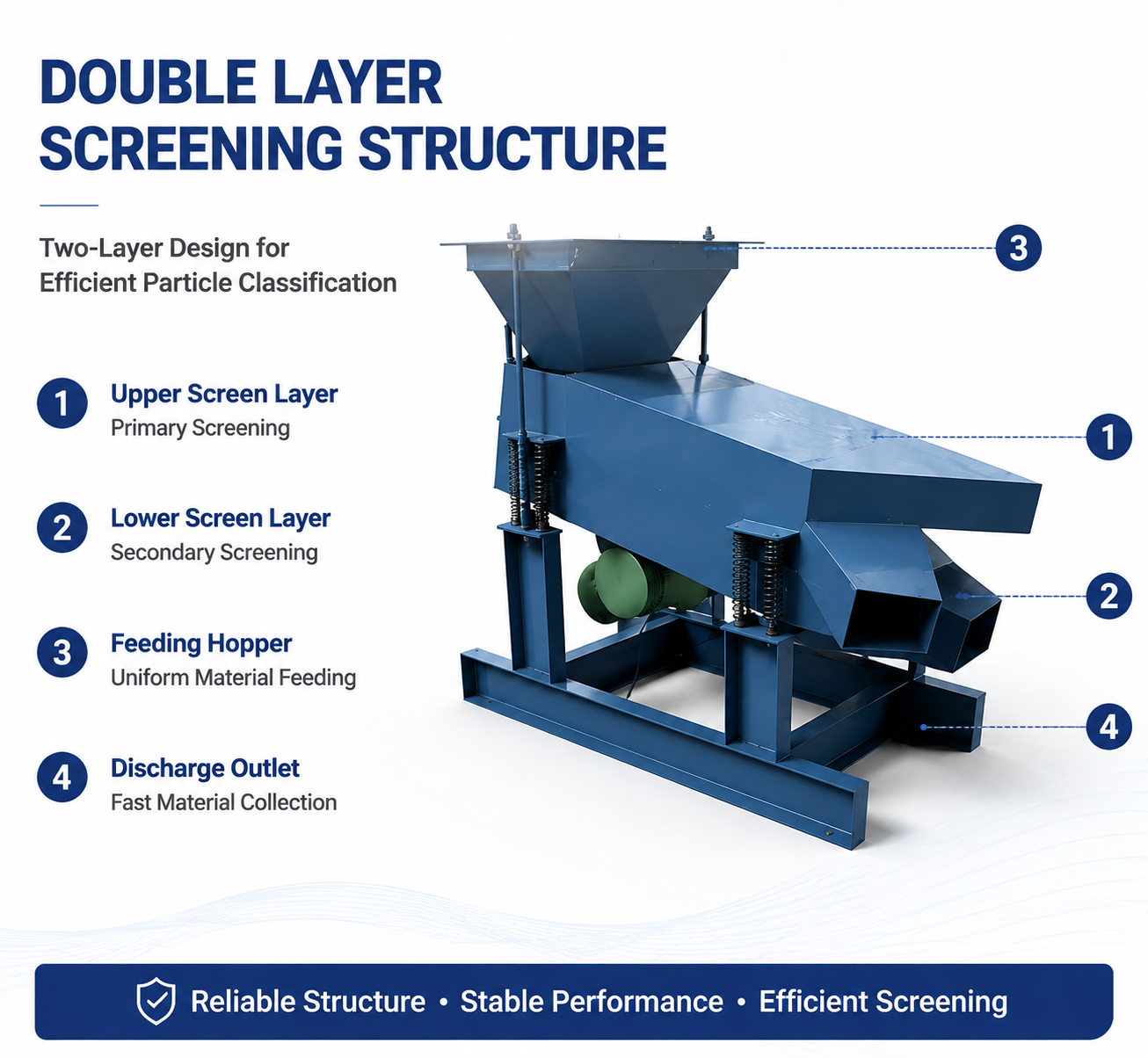

Double Layer Screening Design

Equipped with two-layer screen structure, the machine can simultaneously separate materials into different particle sizes, improving screening efficiency.

Adjustable Screening Performance

Different screen meshes can be installed according to material characteristics and testing requirements.

Wide Application Range

Suitable for screening and classification of minerals, ores, building materials, chemical materials and other solid particles.

Compact Laboratory Design

Small footprint and easy operation, specially designed for laboratory testing and small batch processing.

Stable Vibration Performance

High-frequency vibration ensures uniform material distribution and efficient screening.

Easy Screen Replacement

The screen frame structure allows convenient replacement of different mesh sizes.

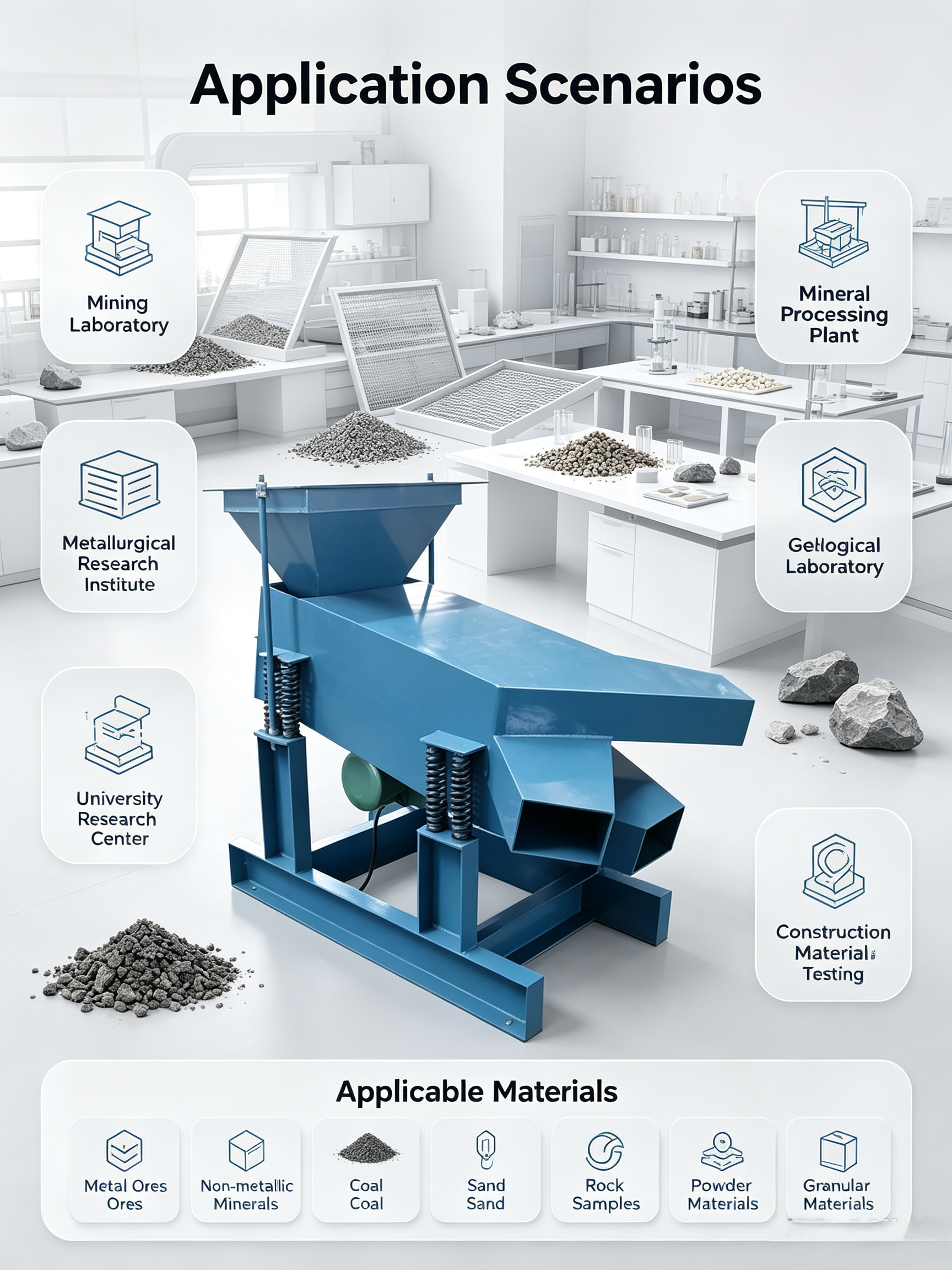

Application

Applications:

  • Mining laboratories
  • Mineral processing plants
  • Metallurgical research institutes
  • Geological laboratories
  • Universities and research centers
  • Construction material testing
  • Chemical material analysis

Applicable Materials:

  • Metal ores
  • Non-metallic minerals
  • Coal
  • Sand
  • Rock samples
  • Powder materials
  • Granular materials
XSZ-600×300 Double Layer Vibrating Screen Machine with 1400 times/min Vibration Frequency for Laboratory Mineral Screening

Technical Specifications
Item Specification
Model XSZ-600×300
Screening Layers 2 Layers
Screen Size 600 × 300 mm
Screening Area 0.18 m²
Screen Mesh Size 5×5 mm / 8×8 mm
Vibration Amplitude 2 mm
Vibration Frequency 1400 times/min
Screen Inclination Angle 8°-20°
Feeding Particle Size 0-35 mm
Maximum Feeding Size ≤45 mm
Capacity 5 t/h (screening particle size 5-8 mm)
Motor Model A02-7114TH
Motor Power 0.55 kW
Motor Speed 1400 r/min
Overall Dimension 900 × 550 × 680 mm
Machine Weight 55 kg

Why Choose This Product
Professional laboratory screening equipment - Designed for mineral testing and research applications.
Accurate particle size separation - Multiple mesh options provide flexible screening solutions.
Durable structure - Strong steel frame ensures stable operation and long service life.
Easy operation and maintenance - Simple structure allows quick installation and screen replacement.
Suitable for customized laboratory solutions - Different screen specifications can be supplied according to customer requirements.

Frequently Asked Questions
What materials can this vibrating screen process?
It can screen ores, minerals, rocks, powders and other granular materials used in laboratory testing.
Can the screen mesh size be customized?
Yes. Different mesh sizes can be installed according to customer requirements.
Is this machine suitable for mineral laboratories?
Yes. It is specially designed for mineral analysis, sample preparation and particle classification.
What is the capacity of XSZ-600×300 vibrating screen?
The maximum capacity can reach approximately 5 t/h depending on material characteristics and screening conditions.
