SZMXQ-Φ460×600 Laboratory Ball Mill for Mineral Ore Grinding and Sample Preparation
SZMXQ-Φ460×600 Laboratory Ball Mill for Mineral Ore Grinding and Sample Preparation
SZMXQ-Φ460×600 Laboratory Ball Mill for Mineral Ore Grinding and Sample Preparation
SZMXQ-Φ460×600 Laboratory Ball Mill for Mineral Ore Grinding and Sample Preparation
SZMXQ-Φ460×600 Laboratory Ball Mill for Mineral Ore Grinding and Sample Preparation
SZMXQ-Φ460×600 Laboratory Ball Mill for Mineral Ore Grinding and Sample Preparation
Specifications
Model Number :
SZMXQ-Φ460×600　Laboratory Ball Mill
Price :
Negotiate
Model :
SZMXQ-Φ460×600
Capacity :
15–30 kg/batch
Application :
Mining Laboratory / Mineral Testing
Feeding Size :
2–15 mm
Packaging Details :
Standard export packing is provided, and customized packing is available upon request.
Grinding Method :
Impact Grinding + Friction Grinding
Product Name :
Laboratory Ball Mill
Customized Service :
Available
Cylinder Volume :
100 L
Place of Origin :
China
Payment Terms :
T/T,L/C
Delivery Time :
1-3 working days
Certification :
Iso 9001
Brand Name :
Y&X
MOQ :
1
Description
SZMXQ-Φ460×600 Laboratory Ball Mill for Mineral Ore Grinding and Sample Preparation
Product Description

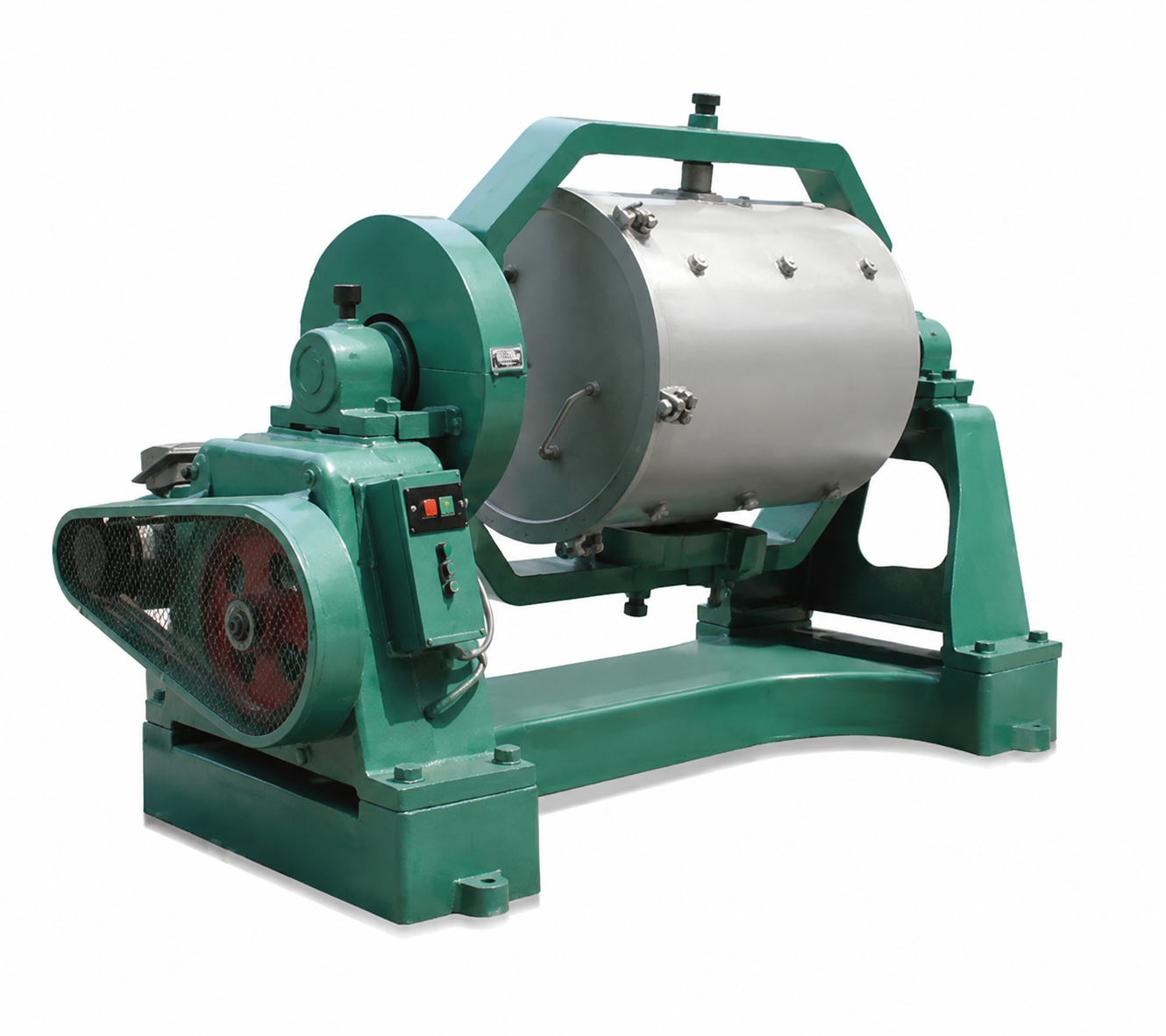

The SZMXQ-Φ460×600 Laboratory Ball Mill is a cylindrical grinding machine designed for mineral sample preparation, grinding tests, and laboratory research. This equipment uses a rotating cylindrical drum with grinding media to achieve material crushing and fine grinding through impact and friction. It is widely used in mining laboratories, geological research, metallurgy, ceramics, building materials, and chemical industries.

This laboratory ball mill is suitable for grinding metallic ores, non-metallic minerals, and other industrial materials, providing reliable test conditions before large-scale production.

SZMXQ-Φ460×600 Laboratory Ball Mill for Mineral Ore Grinding and Sample Preparation


Main Features
  • Compact laboratory design with stable operation
  • Suitable for mineral grinding tests and sample preparation
  • Uniform grinding through impact and friction
  • Applicable for various ores and industrial materials
  • Easy operation, cleaning, and maintenance

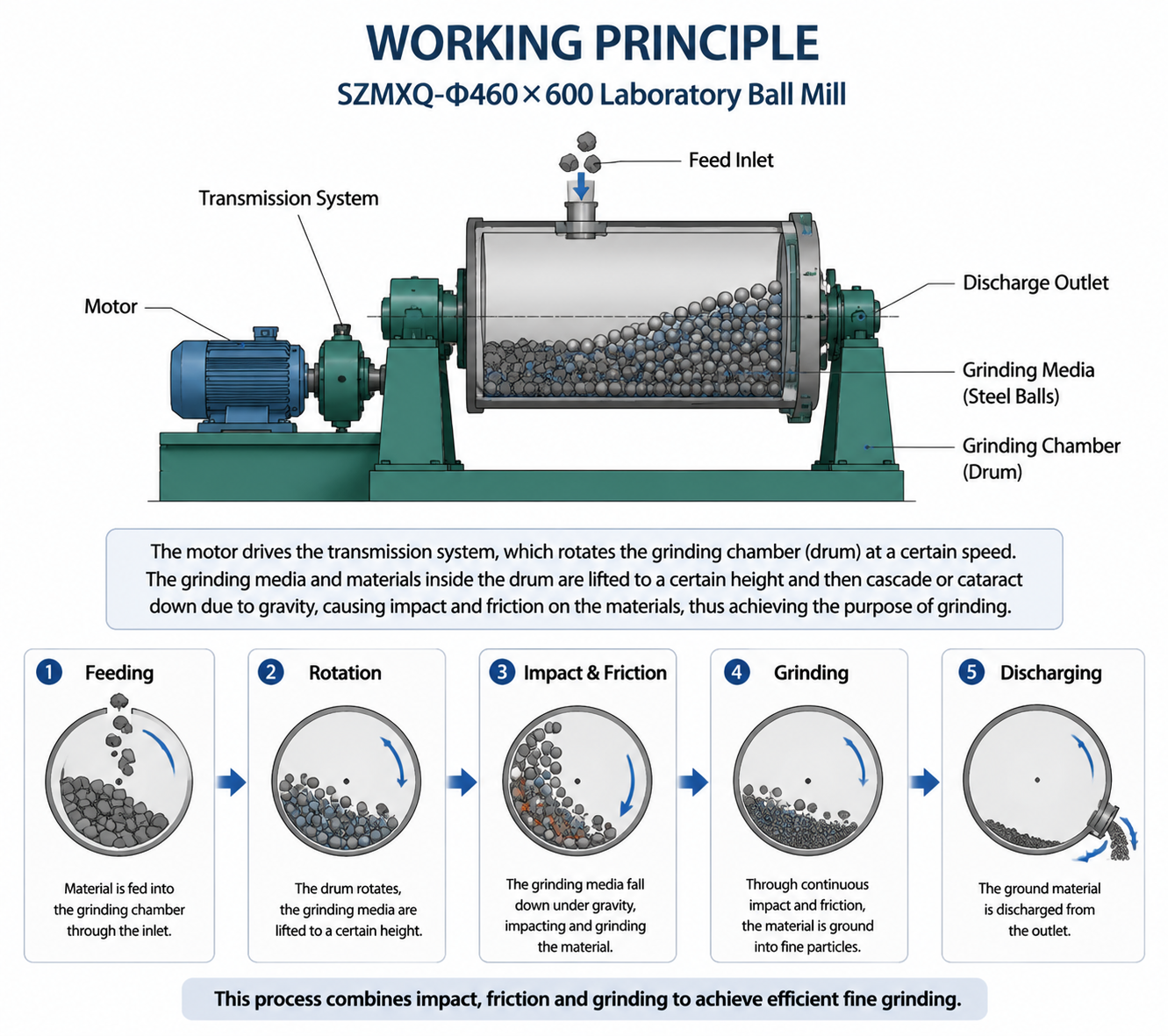

Working Principle

The material and grinding media are placed inside the cylinder. When the motor drives the cylinder to rotate, the grinding media move with the cylinder and fall to impact and grind the material, achieving particle size reduction through repeated crushing and friction.

SZMXQ-Φ460×600 Laboratory Ball Mill for Mineral Ore Grinding and Sample Preparation

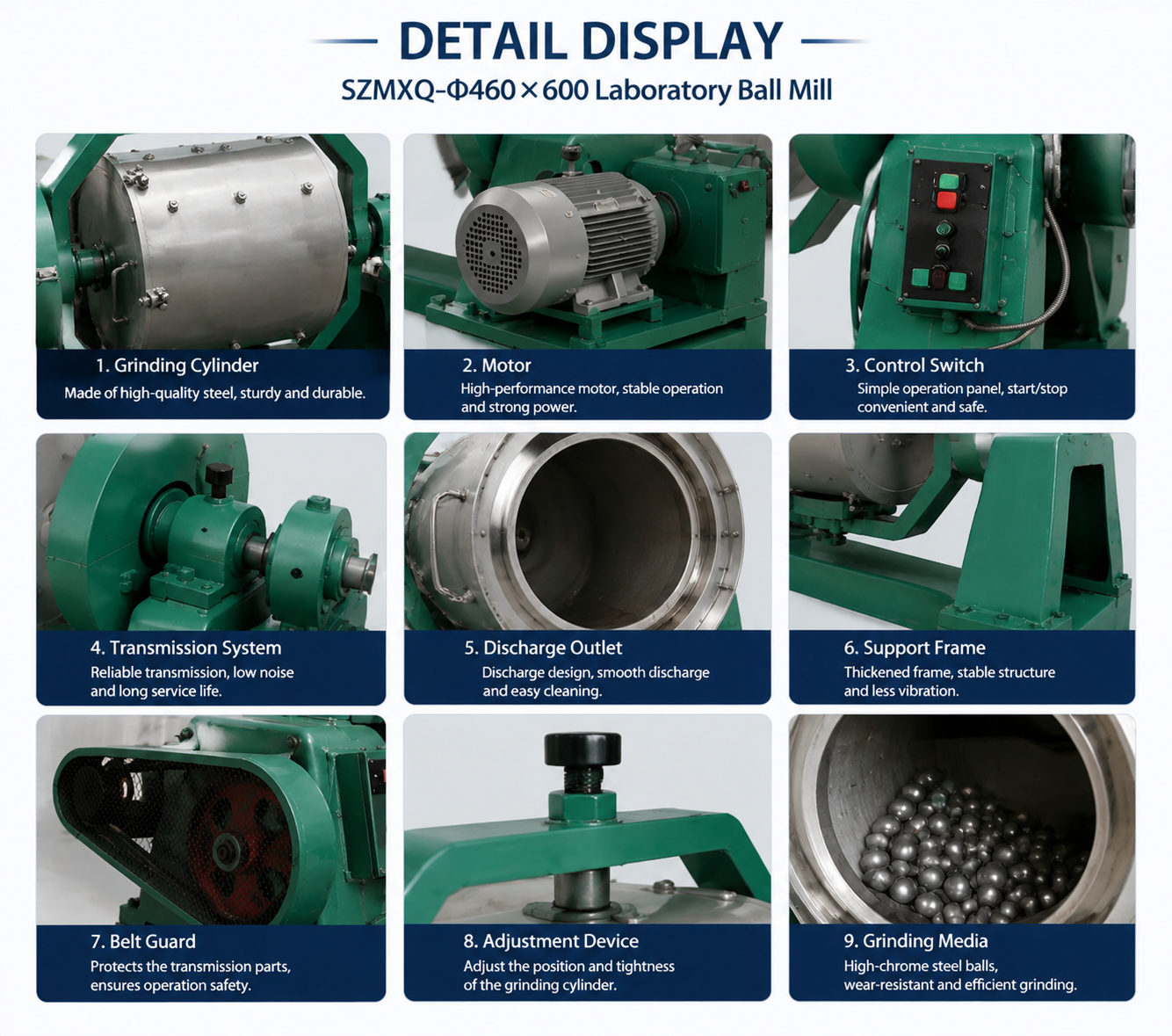

Technical Specifications
ItemSpecification
ModelSZMXQ-Φ460×600
TypeCylindrical Ball Mill
Cylinder SizeΦ460×600 mm
Cylinder Volume100 L
Speed46 r/min
Feeding Size2–15 mm
Capacity15–30 kg/batch
Motor ModelY100L-4
Motor Power2.2 kW
Dimension1730×785×1500 mm
Weight700 kg
Grinding Media Specifications
Grinding Ball DiameterQuantityWeightPercentage
40 mm270 pcs69 kg50.0%
30 mm320 pcs35 kg25.0%
25 mm380 pcs25 kg17.8%
15 mm720 pcs9 kg7.2%
Total1690 pcs138 kg100%

Applications
Mining & Mineral Processing
  • Ore grinding test
  • Mineral sample preparation
  • Beneficiation research
Other Industries
  • Metallurgy
  • Geological testing
  • Ceramic materials
  • Building materials
  • Chemical materials

SZMXQ-Φ460×600 Laboratory Ball Mill for Mineral Ore Grinding and Sample Preparation


Operation Notes
  1. Check installation and electrical connection before operation
  2. Do not exceed the recommended feeding capacity
  3. Use suitable grinding media according to material characteristics
  4. Clean the cylinder after each test
  5. Disconnect power before maintenance

Packaging & Service

The machine is packed with protective measures for safe transportation.

We provide:

  • Technical support
  • Operation guidance
  • Spare parts supply

Customized solutions according to customer requirements

SZMXQ-Φ460×600 Laboratory Ball Mill for Mineral Ore Grinding and Sample Preparation


Frequently Asked Questions
Q1: What materials can be ground by this laboratory ball mill?
This laboratory ball mill is suitable for grinding various materials, including metallic ores, non-metallic minerals, ceramic materials, building materials, and other industrial samples.
Q2: What is the maximum feeding size of the machine?
The recommended feeding particle size is 2–15 mm. The actual grinding performance may vary depending on material characteristics and grinding conditions.
Q3: What is the capacity of SZMXQ-Φ460×600 ball mill?
The feeding capacity is 15–30 kg per batch, which is suitable for laboratory testing and small-scale grinding experiments.
Q4: Does the machine include grinding media?
The grinding media configuration can be provided according to customer requirements. Different sizes of grinding balls can be selected based on the material and testing purpose.
Q5: How should the equipment be maintained?
Regular inspection of transmission parts, lubrication, and fastening components is recommended. The grinding cylinder should be cleaned after each test to ensure stable operation and prevent material contamination.
Q6: Can the voltage and configuration be customized?
Yes. Motor voltage, plug type, and other configurations can be customized according to the customer's country and operating requirements.
