Our drying oven incorporates market-tested components, primarily imported, ensuring exceptional stability and aging resistance. Built with advanced technology, it features an extremely low failure rate, high stability, and excellent cost performance. Multiple safety protection systems including over-temperature protection, leakage protection, fan overload protection, and phase sequence protection automatically alert operators to abnormal conditions and include emergency shutdown functionality for unstable power input.

The unit's environmentally conscious design prioritizes energy efficiency and sustainability, meeting modern enterprise requirements for environmental protection and energy conservation. High-quality fan components and optimized air duct circulation ensure minimal operational noise, providing superior working conditions.

• Inner Box: SUS stainless steel 1.2mm
• Outer Box: High-quality SPCC 201 1.2mm cold rolled sheet
• Insulation: Imported aluminum silicate fiber rock wool (100mm thickness)
• Structural Framework: National standard 8# & 10# channel steel, 10# H steel, and 5# angle steel
• Control System: SSR thyristor dual display control with automatic blasting and heating
• Temperature Sensor: K-type armored thermocouple
• Sealing: Full argon arc welding with high-temperature resistant coating
• Exhaust System: 60mm diameter adjustable exhaust valve

• Controller: High-precision dual display with PID automatic computing
• Temperature Measurement: K-type thermocouple
• Setting Accuracy: 1°C
• Setting Range: 0°C to +300°C
• Emergency Stop: Control cabinet emergency stop switch
• Heating Elements: High-temperature resistant stainless steel heating tubes
• Heating Power: 4.5KW (30% power usage after reaching constant temperature)

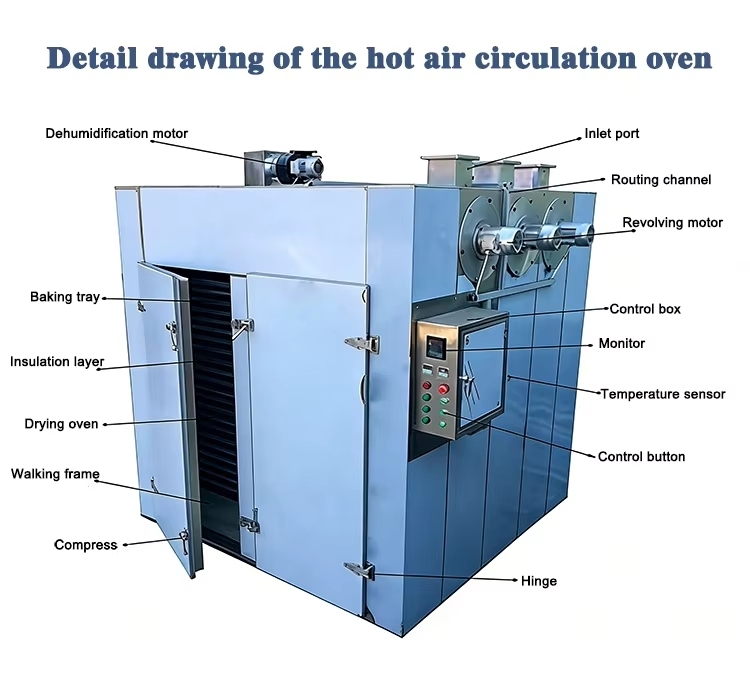

• Air Duct Design: 3 independent air ducts with upper blower motor installation
• Blower Motor: YBX3 high-efficiency energy-saving embedded high-temperature resistant motor with 40W centrifugal fan
• Electrical Components: Schneider/Himanton brand contactors, protection devices, solid state relays, and circuit breakers

• Over-temperature protection with heating cutoff and audible/visual alarm
• Total power phase sequence and phase loss protection
• Leakage protection
• Thermal overload protection for motor safety

Power Supply: 220V ±10%, 50Hz ±0.5Hz, 2-phase 2-wire, Installation power: 5KW

• Temperature: -30°C to 70°C
• Relative Humidity: ≤85% RH
• Atmospheric Pressure: 86-106 Kpa
• No strong vibration, direct sunlight, or heat radiation
• No strong airflow directed at the unit
• No strong electromagnetic fields
• No high concentration of dust or corrosive substances
• Well-ventilated location with ≥600mm clearance around unit

Touch LCD screen, PLC programming, temperature module, RS485 port, MODBUS protocol, programmed temperature curve graphs, data saving and exporting capabilities.

Quotation Validity: 2 months from quotation date

Inclusions: Equipment fee, transportation, and one-year after-sales service (tax included)
