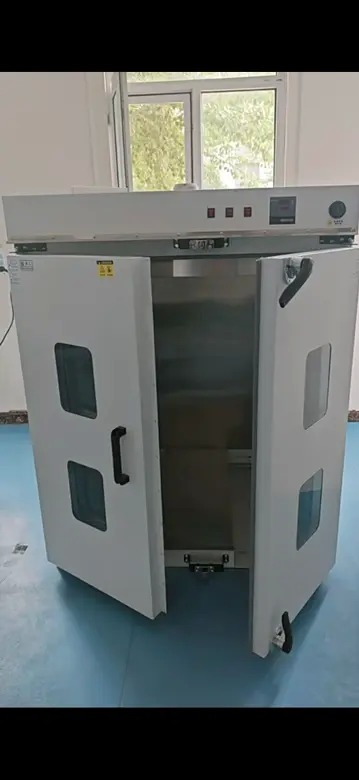

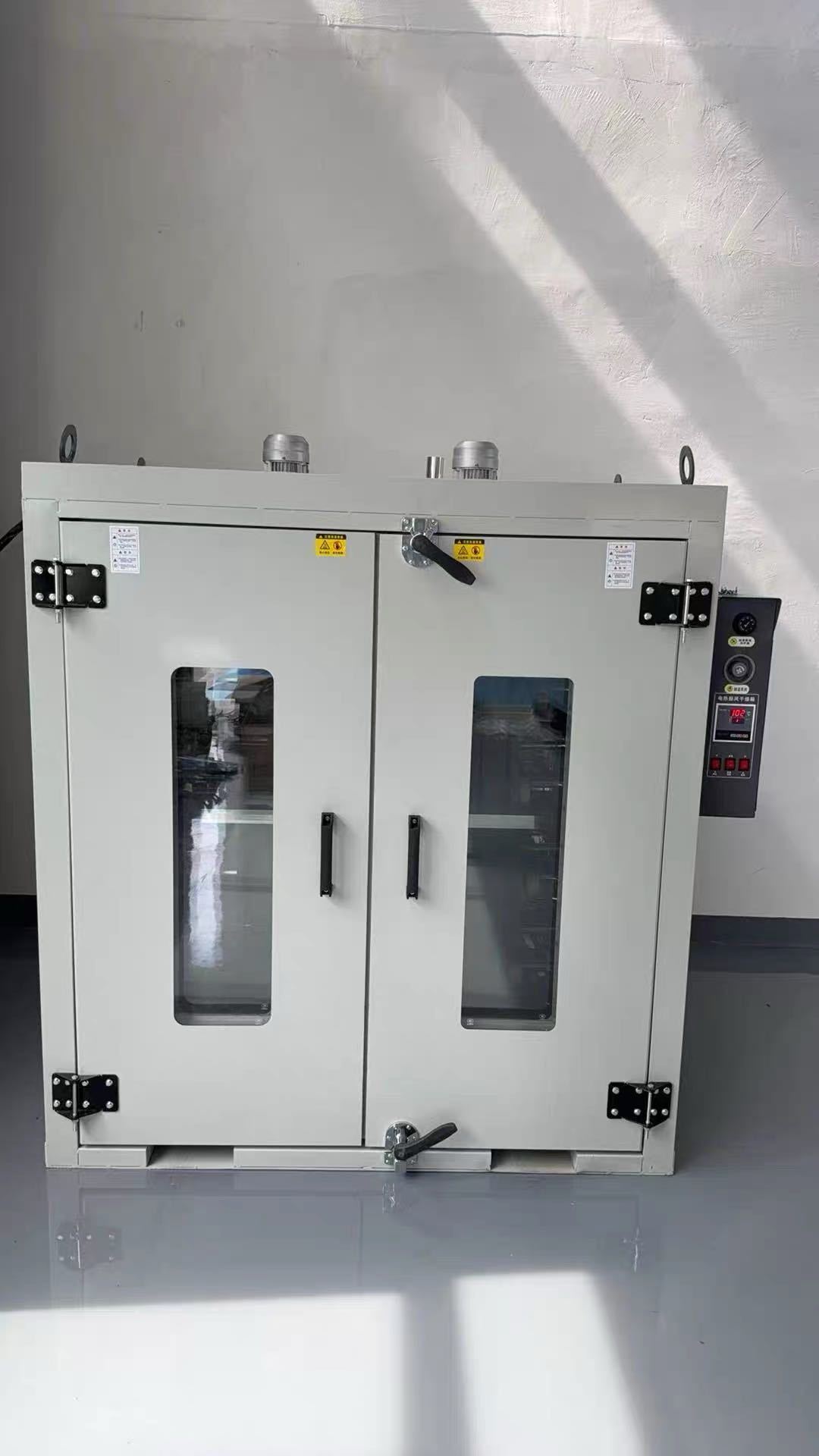

0.1° Temperature Resolution 4.5KW Heating Power Electric Blast Drying Oven with ±0.5° Temperature Fluctuation
0.1° Temperature Resolution 4.5KW Heating Power Electric Blast Drying Oven with ±0.5° Temperature Fluctuation
0.1° Temperature Resolution 4.5KW Heating Power Electric Blast Drying Oven with ±0.5° Temperature Fluctuation
0.1° Temperature Resolution 4.5KW Heating Power Electric Blast Drying Oven with ±0.5° Temperature Fluctuation
0.1° Temperature Resolution 4.5KW Heating Power Electric Blast Drying Oven with ±0.5° Temperature Fluctuation
0.1° Temperature Resolution 4.5KW Heating Power Electric Blast Drying Oven with ±0.5° Temperature Fluctuation
Specifications
Specification :
OW-881—TG type
Outer box size: :
970 high, 1030 wide, 730 deep
Temperature fluctuation: :
±0.5°
Heating power: :
4.5KW
Packaging Details :
Cartons
Brand Name :
Y&X
Model Number :
Electric blast oven
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T,L/C
Temperature range: :
RT.+10℃～300℃
Temperature uniformity: :
±3°
Production Name :
blast oven
Model :
blast oven
Delivery Time :
1-3 working day
Description
0.1° OW-881—TG 4.5KW Mineral Testing Machine Electric Blast Drying Oven Industrial
Product Overview

The OW-881—TG Electric Blast Drying Oven features high-quality, market-tested components, primarily imported, ensuring exceptional stability and aging resistance. Built with advanced technology, this product offers extremely low failure rates, high stability, and excellent cost performance. Equipped with comprehensive safety protection systems including over-temperature, leakage, fan overload, over-current, and phase sequence protection, it automatically alerts operators to abnormal conditions and includes emergency shutdown functionality for unstable power input.

Technical Specifications
Model OW-881--TG
Inner Box Size 550mm (H) * 550mm (W) * 450mm (D)
Outer Box Size 970mm (H) * 1030mm (W) * 730mm (D)
Temperature Resolution 0.1°
Temperature Fluctuation ±0.5°
Temperature Uniformity ±3°
Temperature Range RT.+10℃～300℃ (adjustable)
Heating Rate Room temperature to 200℃ in approximately 20 minutes
Construction & Materials
  • Inner Box Material: SUS stainless steel 1.2mm
  • Outer Box Material: High-quality SPCC 201 1.2mm cold rolled sheet
  • Insulation Layer: Imported aluminum silicate fiber rock wool, 100mm thickness
  • Structural Materials: National standard 8# channel steel, 10# channel steel, 10#H steel, and 5# angle steel
  • Control Method: SSR thyristor dual display control with automatic blasting and heating process
  • Temperature Measurement: K-type armored thermocouple
  • Exhaust System: 60mm diameter exhaust valve with adjustable exhaust volume
  • Internal Sealing: All gaps fully welded with argon arc welding and coated with high-temperature resistant glue
Temperature Control System
  • Controller: High-precision dual display controller with PID automatic computing
  • Temperature Measurement: K-type thermocouple
  • Setting Accuracy: 1℃
  • Setting Range: 0℃～+300℃
  • Emergency Stop Switch: Installed on control cabinet for equipment accidents
  • Temperature Control Element: SSR temperature control
  • Heating Element: High-temperature resistant stainless steel heating tube
  • Heating Power: 4.5KW (30% power usage after constant temperature)
Blower System
  • Air Duct Design: 3 independent air duct system with upper duct housing blower motor and centrifugal fan
  • Blower Motor: YBX3 high-efficiency energy-saving embedded high-temperature-resistant special motor
  • Fan Configuration: 1*40W special centrifugal fan
  • Electrical Components: Schneider/Himanton brand contactors, protection devices, solid state relays, and air circuit breakers
Safety Protection Systems
  • Over-temperature protection with heating cut-off and sound/light alarm
  • Total power phase sequence and phase loss protection
  • Leakage protection
  • Thermal overload protection for motor
Power & Environmental Requirements
  • Power Supply: 220V±10%, 50±0.5Hz, 2-phase 2-wire, Installation power 5KW
  • Ambient Temperature: -30℃～70℃
  • Relative Humidity: ≤85%RH
  • Atmospheric Pressure: 86～106Kpa
  • No strong vibration, direct sunlight, or heat radiation
  • No strong electromagnetic fields, high dust concentration, or corrosive substances
  • Minimum clearance: ≥600mm around equipment
Warranty & Delivery Information
  • Warranty Period: 1 year from delivery date
  • Included Documentation: Operating instructions, factory inspection certificate, after-sales guarantee
Optional Configurations

Touch LCD screen, PLC programming, temperature module, RS485 port, MODBUS protocol, programmed temperature curve graph, data saving and exporting capabilities.

Frequently Asked Questions
Q1: What is the OW-881-TG electric blast drying oven used for?
A: It is used in mineral testing laboratories and industrial applications for drying, baking, curing and heat treatment of samples and materials at temperatures up to 300°C.
Q2: What is the temperature range and accuracy?
A: The temperature range is RT.+10℃ to 300℃ (adjustable), with 0.1° temperature resolution, ±0.5° temperature fluctuation and ±3° temperature uniformity.
Q3: How long does it take to reach the working temperature?
A: It takes approximately 20 minutes from room temperature to 200°C, powered by a 4.5KW heating system.
Q4: What safety protection systems are included?
A: The oven is equipped with over-temperature protection with heating cut-off and sound/light alarm, leakage protection, motor thermal overload protection, total power phase sequence and phase loss protection, and an emergency stop switch.
Q5: What power supply does the oven require?
A: It requires 220V±10%, 50±0.5Hz, 2-phase 2-wire power supply with 5KW installation power (4.5KW heating power).
Q6: What is the inner chamber made of?
A: The inner box is made of SUS stainless steel 1.2mm, with a 100mm imported aluminum silicate fiber rock wool insulation layer for excellent heat retention.
Q10: Can the oven be customized with optional features?
A: Yes. Optional configurations include touch LCD screen, PLC programming, temperature module, RS485 port, MODBUS protocol, programmed temperature curve graph, and data saving and exporting capabilities.
