80Kg/H AC Motor Ball Mill laboratoryand Rod Mill 600×1200mm for Mining Industry
80Kg/H AC Motor Ball Mill laboratoryand Rod Mill 600×1200mm for Mining Industry
Specifications
Applicable Industries :
Building Material Shops
Purpose :
Mining Industies
Keyword :
Rod Mill and Ball Mill
Application :
caoline, limestone, bentonite
Classification :
Lab Grinding Machine
Core Components :
Motor
Motor Type :
AC Motor
Supply Ability :
10000pieces/year
Brand Name :
Y&X
Model Number :
Rod(ball) Mill
Certification :
Iso 9001
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T,L/C
Delivery Time :
1-3 working days
Packaging Details :
Standard export packing is provided, and customized packing is available upon request.
Name :
Lab Grinding Machine Rod Mill and Ball Mill for Mining Industy
Description

80Kg/H Lab Grinding Machine Rod Mill and Ball Mill for Mining Industry

Product Introduction

XMB(Q)-Φ600×1200 rod mill is a wet mill specifically designed for crushing materials in mining, coal, building materials, and water and electricity departments. This equipment is particularly suitable for grinding materials in small mines. The machine features a compact structure, excellent overall performance, and easy transportation and installation, making it ideal for small mobile concentrators.

Technical Parameters

Item Value Unit Remarks
Diameter Φ600 mm
Length 1200 mm
Effective Volume 0.267 m³
Mill Speed Rod Mill: 31 r/min
Ball Mill: 43 r/min		 r/min
Feed Size 15-25 mm ≤10mm Best
Discharging Size 0.074-0.5 mm
Motor Rod Mill: Y132M26, 5.5kw
Ball Mill: Y132M4, 7.5kw

Throughput 80-600 Kg/h
Outline Size 2983×938×930 mm
Weight 2000 kg

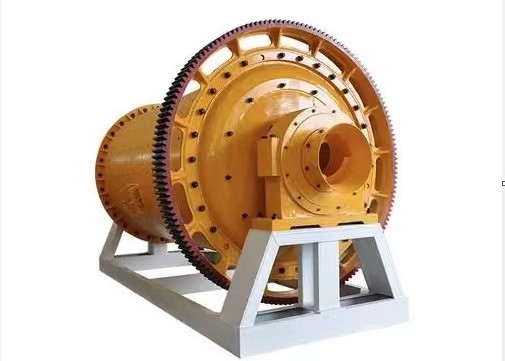

Product Images

80Kg/H AC Motor Ball Mill laboratoryand Rod Mill 600×1200mm for Mining Industry 80Kg/H AC Motor Ball Mill laboratoryand Rod Mill 600×1200mm for Mining Industry

Key Features

  • Ultra-thick steel plate construction with strong cylinder structure design
  • High manganese steel lining plate with excellent wear resistance and long service life
  • Mini ball mill base seat made of high-quality Babbitt metal ensuring stable operation
  • High-strength, high-precision pinion gear and bull gears with quality reduction gear and motor
  • Professional design and manufacturing process with on-time delivery
  • Stable and reliable operation, available in dry and wet ball mill configurations

Company Profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, China. Our company has evolved into a professional enterprise integrating scientific research, design, new product development, production, and manufacturing with strong technical capabilities.

As a family group, our mission from inception has been to expand overseas markets and provide comprehensive professional solutions for international mining companies. We specialize in the research and supply of mineral processing reagents and equipment, including both industrial mineral processing equipment and laboratory mineral processing equipment.

Our products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, research departments, dressing plants, and mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing includes: crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute, and other laboratory and gravity separation equipment.

Our products sell successfully in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia, Tanzania, Nigeria, and other countries and regions. The enterprise has passed IS09001 quality management system certification, and our product quality conforms to relevant national and enterprise technical standards.

80Kg/H AC Motor Ball Mill laboratoryand Rod Mill 600×1200mm for Mining Industry

Frequently Asked Questions

Q1: What's the standard length of your profiles and tube?

A: The standard length of profiles and tube are 5800mm to suit small containers. We can also cut to specific lengths, however a surcharge for machining and material scrap cost will be applied based on each individual invoice.

Q2: What's your MOQ?

A: We have no MOQ for new customers. However, a surcharge of USD 80 will apply for all orders less than USD 1000 for custom handling cost purposes.

Q3: What is your payment terms?

A: We accept T/T or irrevocable L/C at sight, with T/T preferred.

Q4: What's the lead time for small order and mass production?

A: 1-3 working days for small orders, and 3-10 working days for mass production of material. The final lead time will be subject to each individual invoice.

Q5: What certification do you have?

A: We have ISO 9001:2008 certificate.
