Specifications
Core Components :
PLC, Engine
Feature :
Small Ball Mill
Keyword :
Ball Mill for Laboratory
Motor Type :
AC Motor
Brand Name :
Y&X
Model Number :
Rod(ball) Mill
Certification :
Iso 9001
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T,L/C
Delivery Time :
1-3 working days
Packaging Details :
Standard export packing is provided, and customized packing is available upon request.
Model :
Mill
Purpose :
geology, chemical
Name :
Small Ball Mill for Laboratory, Gold Milling Site
Description

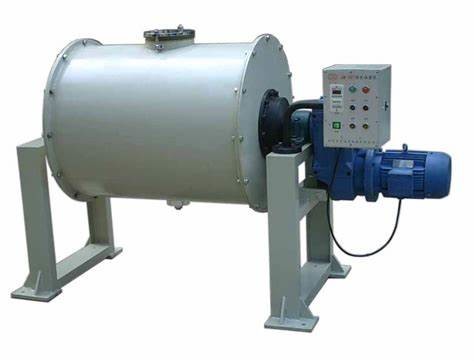

Copper 43r/Min Lab Ball Milling Machine Ac Motor
Ball Mill For Laboratory Machine Copper Rod Mill

Introduction: Small ball mill is the key equipment for crushing materials after crushing. Small ball mills can be divided into grid type ball mills and overflow type ball mills according to different ways of discharging ore. The experimental ball mill produced by our company from Φ0.9*1.12-Φ1.8*2.1, and the filling amount is 0.2-1.5t each time, which can meet various experimental needs.

Technical Parameters
Item Value Unit Remarks
Diameter Φ600 mm
Length 1200 mm
Effective Volume 0.267
Mill Speed Rod Mill: 31
Ball Mill: 43
r/min
Feed Size 15~25 mm ≤10mm Best
Discharging Size 0.074~0.5 mm
Motor Type: Y132M26
Power: 5.5kw
Rod Mill
Motor Type: Y132M4
Power: 7.5kw
Ball Mill
Throughput 80~600 Kg/h
Outline Size 2983*938*930 mm
Weight 2000 kg
Company Profile

Y&X Beijing Technology Co., Ltd. was founded in 2014 and is based in Beijing, the capital of China. Our company has become a professional business that combines scientific research, design, innovation development, product development and manufacturing with strong technical capabilities. As a family group, the mission from the beginning was to expand into foreign markets and provide a one-stop shop for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipment, including mineral processing equipment and laboratory mineral processing equipment; production is widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-ferrous ammunition, Research departments have services te as dressing plants, mineral processing laboratories in colleges and universities.

Mineral processing experimental equipment: mainly including crushing, grinding, screening, classification, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other experimental equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia, Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality complies with the relevant technical standards promulgated by the state and the enterprise.

600×1200mm 43r/min AC Motor Lab Ball Mill for Laboratory Small Ball Milling Machine
Frequently Asked Questions
Q1: What's the standard length of your profiles and tube?
A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.
Q2: What's your MOQ?
A: We have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.
Q3: What is your payment terms?
A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.
Q4: What's the lead time for small order and mass production?
A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.
Q5: What certification do you have?
A: We have ISO 9001:2008 certificate.
