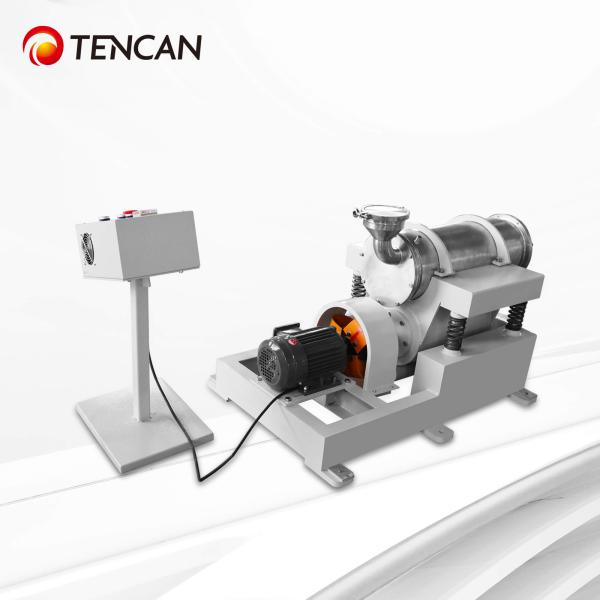

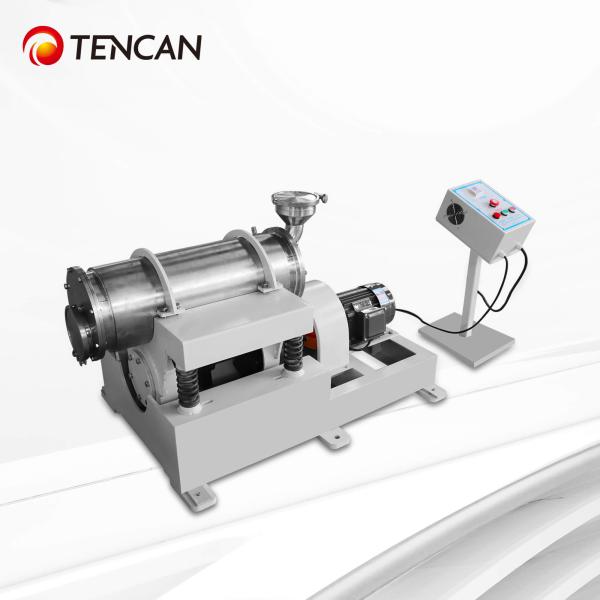

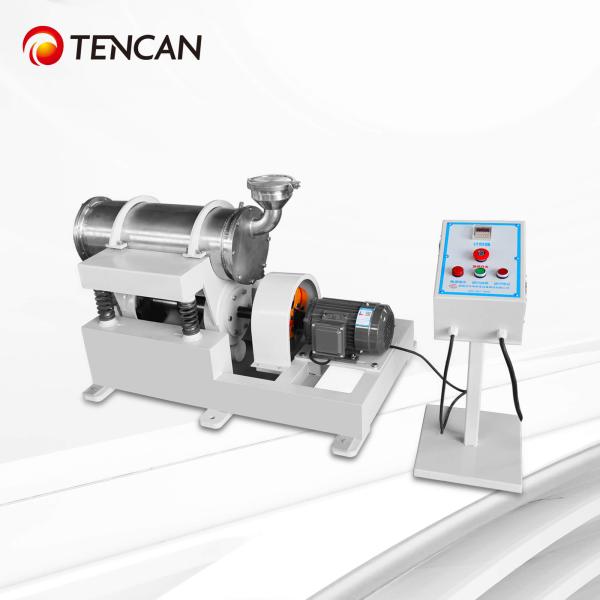

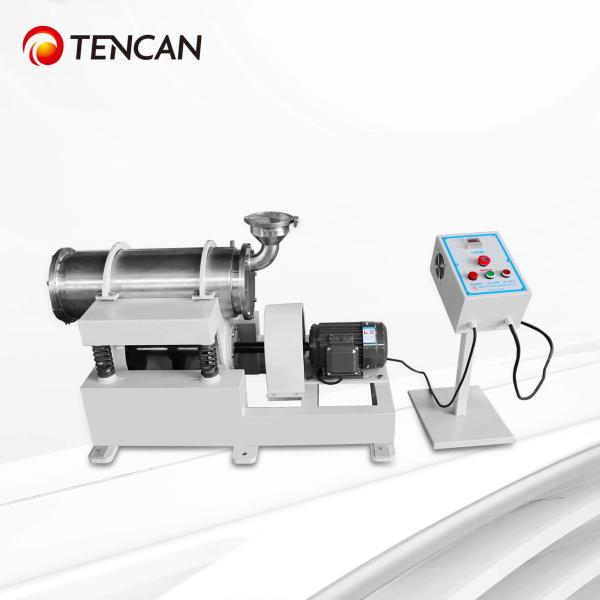

20L Light Vibrating Ball Mill With Frequency Converter And Ceramic, Zirconia & PTFE Liners

Overview

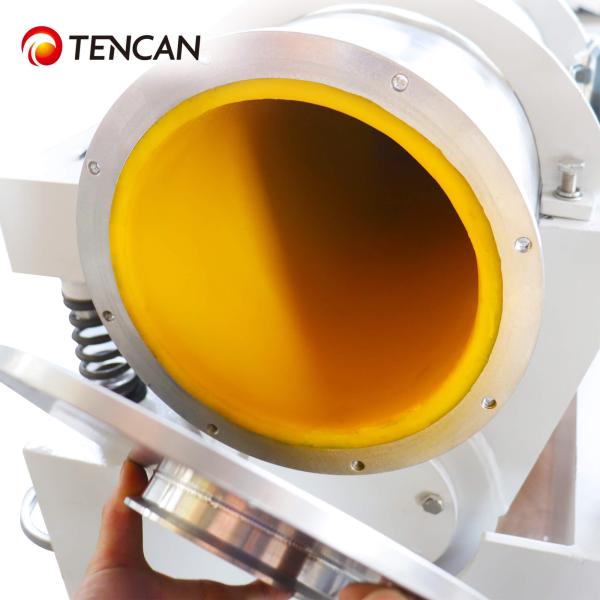

The light type vibrating ball mill, also referred to as vibration mill, represents an innovative generation of high-efficiency powder processing equipment. Available in three configurations - single cylinder, double cylinders, and three cylinders - this compact milling solution combines exceptional performance with user-friendly operation. The laboratory vibrating ball mill delivers reliable processing capabilities, requires minimal maintenance, demonstrates excellent environmental compatibility (zero pollution emissions), and supports both dry and wet grinding applications. Customers may select from multiple cylinder liner options including: food-grade 304/316L stainless steel, high-purity alumina ceramic (corundum), yttria-stabilized zirconium oxide, as well as engineering polymers (nylon, polyurethane, PTFE, PP, PE).

Working Principle

The light type vibrating ball mill's optimized mechanical system comprises a reinforced frame, precision-engineered chassis, high-performance vibration exciter, grinding cylinder assembly, damping springs, and energy-efficient motor. Upon activation, the motor transmits power to the vibration generator, creating controlled high-frequency oscillations (typically 1000-3600 vibrations per minute) with precisely regulated amplitude (0.5-5mm). This motion induces intensive multi-directional movement of grinding media, facilitating:
Continuous high-velocity impacts
Efficient surface abrasion
Homogeneous particle size reduction
Resulting in superior grinding efficiency and uniform product fineness.

Applications

This versatile light-type vibration mill serves diverse industrial and research applications:
Electronics Manufacturing: Dielectric ceramics, ferrite cores, conductive pastes
Advanced Materials: Nanocomposites, quantum dots, battery materials
Chemical Processing: Catalysts, inorganic pigments, polymer additives
Powder Metallurgy: Tungsten alloys, carbide powders, metal matrix composites
Pharmaceuticals: API micronization, controlled-release formulations
Specialty Products: Magnetic materials, rubber compounds, radio-frequency components

Features

1, It has larger capacity compared with other ball mills.

2, Simple structure, by adjusting the amplitude, frequency, media. Different ratio produces different particle size.

3. The vibrating ball mill with a jacket tube can adjust grinding temperature.

4. The vibrating ball mill with sieve and collecting devices keeps production continuously.

5, Simple and convenient operation, reliable work, easy cleaning, strong adaptability to working conditions.

6, No environmental pollution, dry and wet ball milling can be carried out.

7, Light weight, small volume, high efficiency.

8. Special order can be made according to the requirements.

Technical Parameters of Tencan Light Type Vibrating Ball Mill

Available Mill Jars: Stainless steel mill jar, alumina ceramic mill jar, Zirconia mill jar, agate mill jar, tungsten carbide mill jar, PU mill jar, nylon mill jar, PTFE mill jar, and etc.
