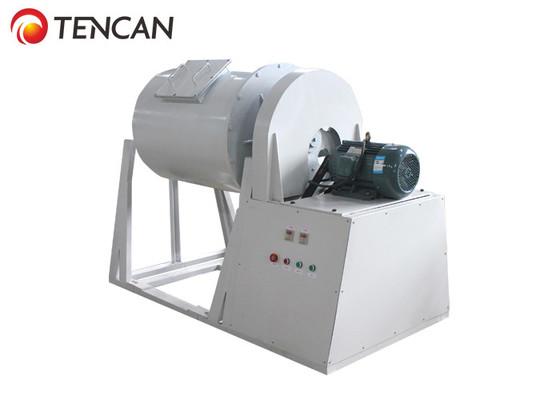

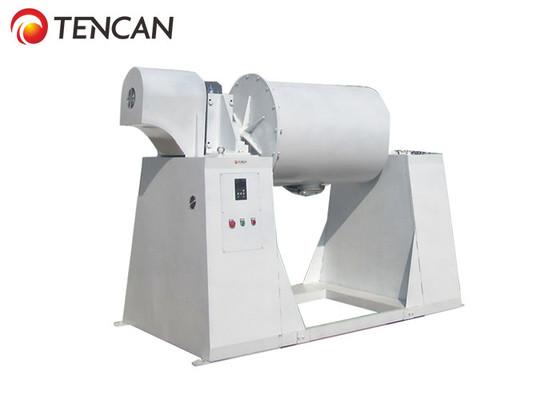

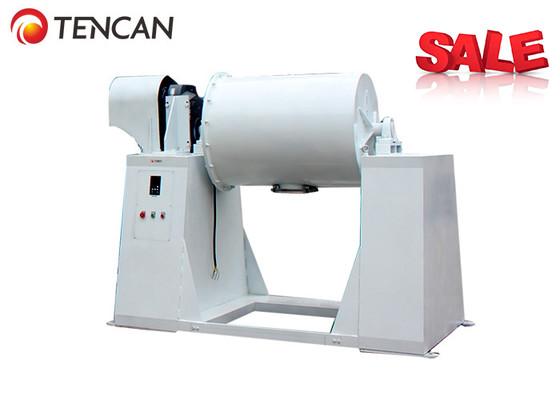

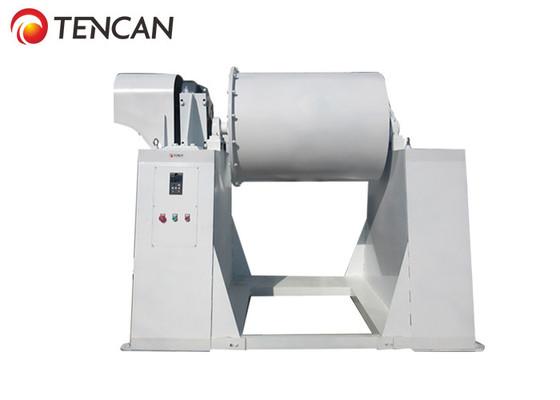

500L Industrial Roll Ball Mill – 380V High-Efficiency Fine Powder Grinding System with Polyurethane/Zirconia Liner Options
500L Industrial Roll Ball Mill – 380V High-Efficiency Fine Powder Grinding System with Polyurethane/Zirconia Liner Options
500L Industrial Roll Ball Mill – 380V High-Efficiency Fine Powder Grinding System with Polyurethane/Zirconia Liner Options
500L Industrial Roll Ball Mill – 380V High-Efficiency Fine Powder Grinding System with Polyurethane/Zirconia Liner Options
500L Industrial Roll Ball Mill – 380V High-Efficiency Fine Powder Grinding System with Polyurethane/Zirconia Liner Options
500L Industrial Roll Ball Mill – 380V High-Efficiency Fine Powder Grinding System with Polyurethane/Zirconia Liner Options
500L Industrial Roll Ball Mill – 380V High-Efficiency Fine Powder Grinding System with Polyurethane/Zirconia Liner Options
500L Industrial Roll Ball Mill – 380V High-Efficiency Fine Powder Grinding System with Polyurethane/Zirconia Liner Options
Specifications
Brand Name :
TENCAN
Model Number :
QM-500
Certification :
CE ISO
Place of Origin :
Hunan, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
220 sets per month
Delivery Time :
8-10 working days after getting full payment
Packaging Details :
Plywood Case+Foam
Product Name :
Roll Ball Mill
Model No. :
QM-500
Voltage :
380V-50Hz
Power :
7.5KW
Rotation Speed :
20-36 RPM
Speed Control :
Frequency Control
Total Volume :
500L
Max Capacity :
175L
Description
500L Industrial Roll Ball Mill – 380V High-Efficiency Fine Powder Grinding System with Polyurethane/Zirconia Liner Options
Overview
The 500L Roll Ball Mill is a professional-grade grinding system designed for ultra-fine powder processing in laboratory, pilot-scale, and small-batch production applications. Engineered for high efficiency, precision, and durability, this heavy-duty mill features customizable polyurethane or zirconia liners, making it ideal for industries requiring contamination-free grinding.
Key Advantages
✔ Large 500L Capacity – Optimized for high-volume fine grinding & mixing
✔ Multi-Material Liner Options – Choose between polyurethane, zirconia, stainless steel, or ceramic for contamination control
✔ Precision Grinding Control – Adjustable speed & programmable timing with pause/cumulative functions
✔ Wet & Dry Grinding – Supports both methods for versatile material processing
✔ Automated Powder Discharge – Built-in pouring system for efficient media separation & clean operation
✔ Industrial-Grade Construction – 380V powered with low-noise, high-stability performance
Working Principle
The mill rotates grinding media (balls) and material inside the tank, creating impact, friction, and shear forces for ultra-fine particle reduction. The inclined-flow movement ensures uniform grinding, achieving micron-level fineness.
Applications
