YBB 0034 200mm/Min Tape Peeling Strength Testing Machine
YBB 0034 200mm/Min Tape Peeling Strength Testing Machine
Specifications
Brand Name :
KERANG
Model Number :
BLL0698-C
Certification :
Calibration Certificate（Cost Additional）
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10set/month
Delivery Time :
30days
Packaging Details :
plywood
name :
Tape peeling strength testing machine
standard :
YBB 0034, en 868-5-1999, YYT 0698.5-2009, etc. are acceptable
Moving speed :
10----200mm/min
Test scope :
0.1 ~ 50.0n, accuracy: ± 0.1N
Net weight :
11kg
Dimensions :
400×290×240（mm)
Description

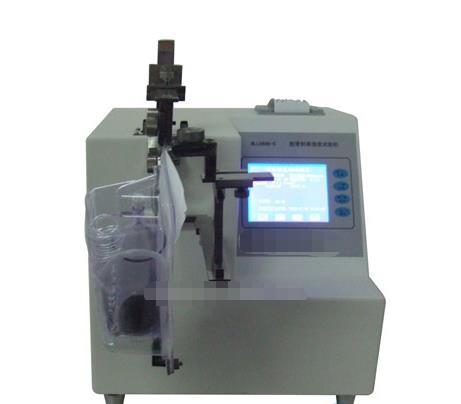

Tape peeling strength testing machine

Product introduction:
It adopts 5.7 inch (120 × 90) single color LCD touch screen and Chinese menu display. Product specifications, test times, peel strength, uplink, downlink, time, calibration. The menu on LCD is controlled by keyboard, and test data is printed on board. The perpendicularity is not higher than ± 3 ° and the stripping force and peak force data can be displayed in real time, and the maximum stripping force and average force can be displayed. It has the function of automatic judgment and can be used for heat sealing strength test.

Executive Standards: YBB 0034, en 868-5-1999, YYT 0698.5-2009, etc. non standard customization is acceptable

Moving speed: 10-200 mm / min;
Test range: 0.1 ~ 50.0n, accuracy: ± 0.1N;
Printing method: 10 test data, average peeling force and deviation value can be printed each time.
Stripping width: 1-30 mm, in accordance with the standard.
Net weight: 11kg
Overall dimension: 400 × 290 × 240 (mm)
