0.25n 400kPa Injector Tightness Positive Pressure Tester
0.25n 400kPa Injector Tightness Positive Pressure Tester
Specifications
Brand Name :
KERANG
Model Number :
ZY15810-C
Certification :
Calibration Certificate（Cost Additional）
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10set/month
Delivery Time :
30days
Packaging Details :
plywood
name :
Injector tightness positive pressure tester
Lateral force :
25n-3n, the error is not more than ± 5%
Axial pressure :
100KPA ~ 400kPa, error no more than ± 5%
Nominal capacity :
1ml ~ 60ml, optional
Test time :
30s ± 5S, error no more than ± 1s
Net weight :
12kg
Dimensions :
485×345×300（mm)
Description

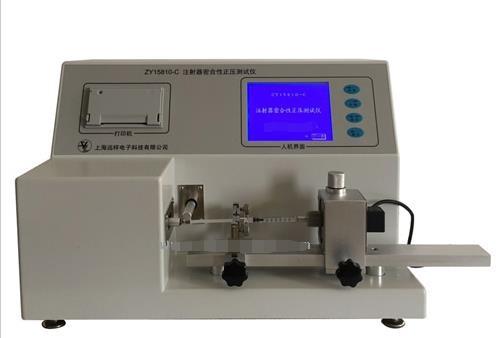

Injector tightness positive pressure tester

Product description
It adopts 5.7 inch (120 × 90) single color LCD touch screen and Chinese menu display. The nominal capacity of the syringe, the lateral force and axial pressure used in the leakage test are selected by the keyboard, and the lateral force and axial pressure as well as the action time on the mandrel are displayed in the test process, and the test results can be printed out by the airborne printer.

Product introduction:

Lateral force: 0.25n-3n, error no more than ± 5%;

Axial pressure: 100KPA ~ 400kPa, the error is not more than ± 5%;

Nominal capacity: 1ml ~ 60ml, optional;

Test time: 30s ± 5S, error no more than ± 1s.

Net weight: 12kg

Dimension: 485 × 345 × 300 (mm)
