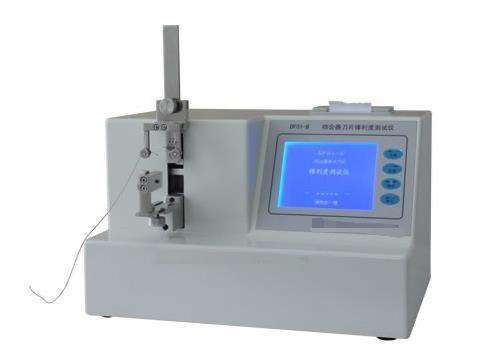

0.01N Stapler Blade Sharpness Tester Medical Device Testing Equipment
0.01N Stapler Blade Sharpness Tester Medical Device Testing Equipment
Specifications
Brand Name :
KERANG
Model Number :
DF01-A
Certification :
Calibration Certificate（Cost Additional）
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10set/month
Delivery Time :
30days
Packaging Details :
plywood
name :
Stapler blade sharpness tester
Test scope :
0.1-10n, accuracy: ± 0.01N; sharpness of different kinds of blades (straight, round and annular) can be measured
Moving speed :
100mm/min
Net weight :
11kg
Dimensions :
400×290×275（mm)
Description

Product description
Stapler blade is programmed in the same instrument, which can meet the test requirements of different blade shapes

Product introduction:
It adopts 5.7 inch (320 × 240) single color LCD touch screen and Chinese menu display. Nominal specification, test times, pressurization, up, down, time, calibration. The menu on LCD is controlled by keyboard, and test data is printed on board. Real time display of edge sharpness force and peak force data, maximum sharpness and other peak force curves can be displayed. Stapler blade is programmed in the same instrument, which can meet the test requirements of three different blade shapes, and different fixtures need to be replaced.

Test range: 0.1 ~ 10N, accuracy: ± 0.01N; sharpness of different kinds of blades (straight, round, annular) can be measured.

Moving speed: 100 mm / min;

Cutting material: 4-0 suture, in line with yy0174-2005 and other relevant standards;

Printing mode: it can print the test data, average cutting force and deviation value of 3 points of the blade each time.

LCD: made in Taiwan. Sensor: Mettler Toledo.

Machinery: aluminum alloy oxidation treatment, 304 stainless steel, high speed AD conversion, closed-loop loading cutting force.

Motor: subdivided stepping motor.

Software: the main CPU adopts AVR technology, with RS232 communication interface, and the software can be timely upgraded.

Net weight: 11kg

Overall dimension: 400 × 290 × 275 (mm).
