500 Mm / Min Medical Mask Tension Tester
500 Mm / Min Medical Mask Tension Tester
Specifications
Brand Name :
KERANG
Model Number :
WDS-02E
Certification :
Calibration Certificate（Cost Additional）
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10set/month
Delivery Time :
30days
Packaging Details :
plywood
Description

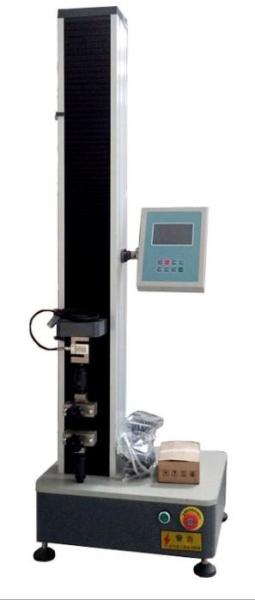

Medical Mask Tension Tester

This product is widely used in the tensile, compression, bending and shear tests of metal and nonmetal materials. Equipped with various accessories, it can also be used for the mechanical property test of profiles and members. In the test field of rope, belt, wire, rubber, plastic and other materials with large sample deformation and fast test speed, it also has a very wide application prospect. It is suitable for quality supervision, teaching and research, aerospace, iron and steel metallurgy, automobile, construction materials and other test fields.
Technical parameters.jpg
Maximum test force (n)
One hundred
Two hundred
Five hundred
one thousand
two thousand
five thousand
Accuracy class
Level 1
Test force measurement range
2%-100%
Relative error of test force indication
＜±1%
Test force resolution
1 / 300000 of the maximum test force
Deformation measurement range
2%-100%
Relative error of deformation indication
＜±1%
Deformation resolution
Maximum deformation 1 / 300000
Relative error of displacement indication
＜±1%
Displacement resolution (mm)
zero point zero zero one
Speed range (mm / min)
0.01-500
Tensile stroke (mm)
Eight hundred
Compressed space (mm)
Eight hundred
Test width (mm)
One hundred and eighteen
Available fixture
Stretching, compression, bending, shearing, peeling, tearing, etc
Overall dimension of main engine (mm)
500*410*1550
Servo motor power (kw)
zero point seven five
Total weight (kg)
One hundred
