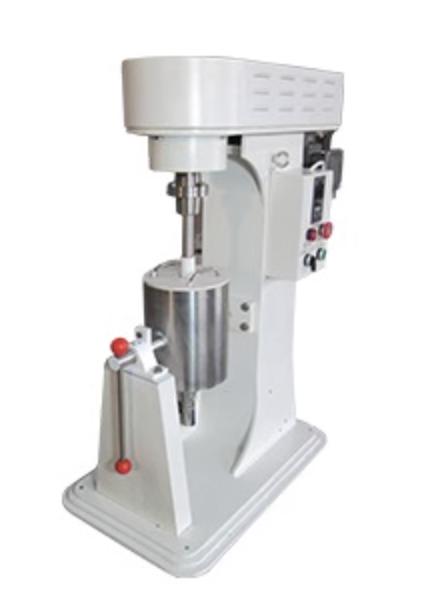

A Small Stainless Steel Experimental Stirred Ball Mill is a versatile and efficient grinding system designed for research and development, pilot-scale projects, and small-batch production of fine and ultra-fine powders. It is particularly valued for its ability to achieve a narrow particle size distribution with high energy efficiency.

Unlike planetary ball mills that rely on the complex rotation of jars, a stirred ball mill operates on a simpler, more direct principle:

1. Stationary Grinding Chamber: A fixed cylindrical tank (the grinding chamber) contains the material to be ground and the grinding media.

2. High-Speed Agitator: A central shaft equipped with agitator arms (or discs) rotates at high speeds within the chamber.

3. Intense Shear and Impact: The rotation of the agitator vigorously stirs the grinding media (small beads), creating a high density of collisions and intense shear forces between the beads, between the beads and the agitator, and between the beads and the chamber wall. This action rapidly reduces the particle size of the powder suspended within.

1. Grinding Chamber & Material: Stainless Steel (SS304 or SS316)

   Durability: Resistant to wear and impact.

   Corrosion Resistance: Especially SS316, which offers better resistance to acids and solvents, making it suitable for a wide range of chemical environments.

   Hygienic & Easy to Clean: The smooth surface of stainless steel prevents contamination and allows for easy cleaning between batches, which is crucial for experimental work.

2. Stirring System (Shaft & Agitator):

   Typically made of hardened stainless steel.

   The design of the agitator (e.g., pins, discs) is optimized to maximize energy transfer to the grinding media.

3. Grinding Media:

   Small, hard beads made of materials like zirconia, steel, or glass.

   Sizes typically range from 0.3 mm to 3 mm. Smaller beads provide more contact points for finer grinding but require more energy to agitate.

4. Sealing System:

   A robust mechanical seal ensures the chamber is leak-proof, which is essential for wet grinding and when processing volatile solvents.

5. Control System:

   Variable speed drive to precisely control the agitator's RPM, allowing optimization of grinding energy.

   Digital timer and temperature monitoring to ensure reproducible results and prevent overheating of heat-sensitive materials.

This type of mill is highly versatile:

1. Dry Grinding: The powder is fed directly into the chamber. The agitator's action fluidizes the powder and media, causing comminution primarily through impact and friction. Effective for hard, brittle materials.

2. Wet Grinding: The powder is mixed with a solvent to form a slurry. This is the most common and efficient method for stirred mills, as it:

   1. Carries away heat, preventing thermal degradation.

   2. Helps transport the product.

   3. Prevents re-agglomeration of fine particles, enabling achievement of micron and sub-micron (nano) sizes.

1. High Energy Efficiency: Direct energy transfer to the grinding media is more efficient than tumbling a large drum, leading to faster grinding times and lower energy consumption.

2. Superior Fineness: Capable of producing particles in the 1-10 micrometer range consistently, and down to the nanometer scale with optimized parameters.

3. Scalability: Results from small experimental models can be directly scaled up to large production-sized stirred mills, de-risking process development.

4. Controllability: Precise control over speed, time, and media size allows for excellent reproducibility and optimization of particle size distribution.

This mill is ideal for industries requiring precise control over powder properties:

1. Inks & Pigments: For dispersing pigments to achieve high color strength and gloss.

2. Paints & Coatings: For grinding and homogenizing formulations to ensure a smooth finish.

3. Ceramics: For producing ultra-fine ceramic powders for advanced materials.

4. Pharmaceuticals: For the micronization of active pharmaceutical ingredients (APIs).

5. Battery Materials: For the fine grinding of cathode and anode materials to improve battery performance.

6. Metal Powders: For producing fine metal powders for additive manufacturing or metallurgy.
