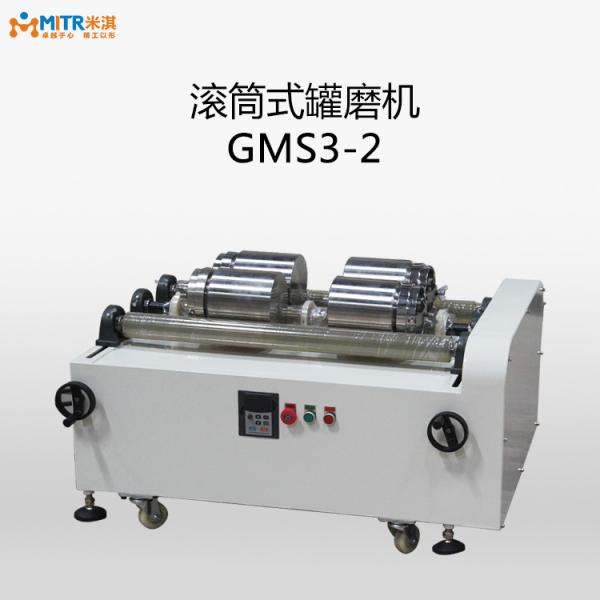

0.5-3L Capacity Horizontal Roller Ball Mill Grinder With 2 Stainless Steel Jar
0.5-3L Capacity Horizontal Roller Ball Mill Grinder With 2 Stainless Steel Jar
0.5-3L Capacity Horizontal Roller Ball Mill Grinder With 2 Stainless Steel Jar
0.5-3L Capacity Horizontal Roller Ball Mill Grinder With 2 Stainless Steel Jar
Specifications
Brand Name :
MITR
Model Number :
GMS3-2
Certification :
ISO9001:2008/CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
TT,Western union
Supply Ability :
10set per week
Delivery Time :
7-15 working days
Packaging Details :
Export Standard Wooden Package
Work station :
2
Jar capacity :
0.5-3L
Roller layer :
1
Speed range :
0-300 rpm
Current :
220V
Motor power :
0.75Kw
Jar material :
stainless steel
Dimension :
660*440*410mm
Description

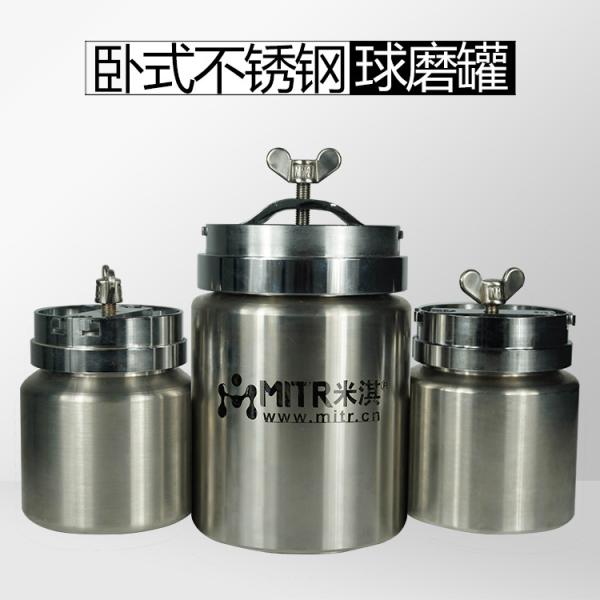

3l Roller Ball Mill With 2 Stainless Steel Jar

Main features

Frequency conversion control speed,program control,

Adjusting the roller wheelbase by the hand wheel to prevent the jar movement.

The outer lining of the roller shaft with wear-resistant polyurethane to increase friction coefficient and prevent sliding jar deformation.

Feeding granularity less than 3mm,soil <=10mm

Discharging granularity over 300 mesh

Detail introduction

GMS series have 2 work station and single layer

GMS series have 4 work station and could single layer or double layer(need customization and above 10L)

GMS series have 8 work station and double layer

Technical parameter

Model Jar volume*quantity(piece) Roller layers Roller piece Roller diameter*length*part Adjust distance with hand wheel Jar diameter selection range to adjust(mm) Frequency conversion speed range rpm Voltage(V) Power(KW) External dimension W*L*H mm

Driving mode
GMS1-2 (0.5-1L)*2 1 2 φ40*180 52~160 φ50-φ160 0~300 220V 0.75 580*420*410 Belt
GMS3-2 (0.5-3L)*2 1 2 φ50*220 52~210 φ50-φ200 0~300 220V 0.75 660*440*410 Belt
JGMS3-2 (0.5-3L)*2 1 2 φ58*220 76~225 φ60-φ200 0~300 220V 0.75 940*440*400 Belt
GMS5-2 (0.5-5L)*2 1 2 φ60*390 67~280 φ70-φ260 0~270 220V 0.75 760*610*530 Belt
GMS10-2 (0.5-10L)*2 1 2 φ70*390 67~230 φ60-φ280 0~220 220V 1.5 790*630*530 Synchronize belt
GMS20-2 (0.5-20L)*2 1 2 φ80*470 30~340 φ60-φ320 0~220 380V 2.2 827*952*724 Synchronize belt
GMS30-2 (1-30L)*2 1 2 φ80*(425*2) 35~290 φ60-φ360 0~200 380V 2.2 1328*658*720 Synchronize belt
GMS1-4 (0.5-1L)*4 1 3 φ40*180 62~160 φ50-φ160 0~300 220V 0.75 580*520*410 Belt
GMS3-4 (0.5-3L)*4 1 3 φ50*230 76~230 φ70-φ180 0~270 220V 0.75 780*648*530 Belt
GMS5-4 (0.5-5L)*4 1 3 φ60*390 67~280 φ70-φ260 0~270 220V 1.5 850*748*530 Belt
GMS10-4 (0.5-10L)*4 1 3 φ70*(390*2) 67~230 φ60-φ280 0~220 380V 2.2 1189*890*680 Synchronize belt
GMS10-4B (0.5-10L)*4 2 2 φ70*(390*2) 67~230 φ60-φ280 0~220 380V 2.2 742*890*1111 Synchronize belt
GMS20-4 (0.5-20L)*4 2 3 φ80*(470*2) 30~340 φ60-φ320 0~220 380V 2.2 1309*1128*724 Chain wheel
GMS30-4 (1-30L)*4 1 3 φ80*(425*2) 35~290 φ60-φ360 0~200 380V 4 1328*1048*680 Synchronize belt
GMS3-8 (0.5-3L)*8 2 3 φ50*(230*2) 76~230 φ70-φ200 0-280 380V 1.1 780*717*965 belt
GMS5-8 (0.5-5L)*8 2 3 φ60*(310*2) 67~280 φ70-φ260 0-270 380V 2.2 1020*868*950 Chain wheel
GMS10-8 (0.5-10L)*8 2 4 φ70*(410*2) 67~302 φ60-φ280 0~220 380V 3 1210*890*1050 Chain wheel
GMS20-8 (0.5-20L)*8 2 4 φ80*(470*2) 30~340 φ60-φ320 0~220 380V 3 1390*1128*1100 C W
