Specifications
Brand Name :
Lonroy
Model Number :
NLD200
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Warranty :
1 year
Temperature :
10-40℃
Humidity :
≤ 75%
Size :
370*230*300 mm
Weight :
22 Kg
Description

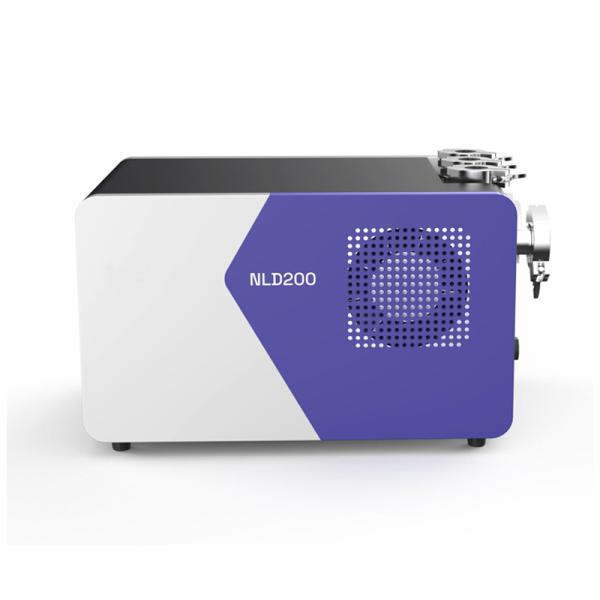

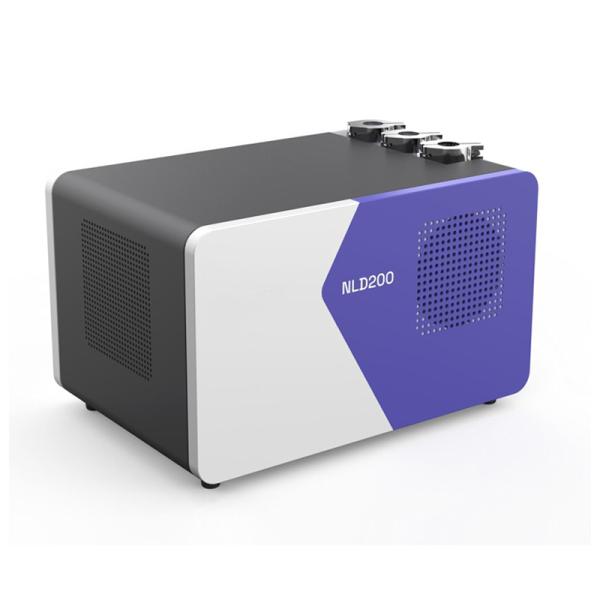

Module Leak Detector Spectrometer Leak Detector Helium Mass Spectrometry Leak Detector

Introduction

NLD200 module leak detector is a modular type leak detector,small volume can be flexible with the vacuum system, a variety of air combination, can be applied to a variety of detection requirements.

It has the characteristics of short start time, fast leak detection speed, high sensitivity, strong ability to clear helium and no pollutant removal.

Compact structural design to facilitate integration into leak detection systems according to customer needs.

Double iridium ion source, strong antioxidant capacity and long service life.


Features

NLD200 module leak detector is a modular type leak detector,small volume can be flexible with the vacuum system, a variety of air combination, can be applied to a variety of detection requirements.

It has the characteristics of short start time, fast leak detection speed, high sensitivity, strong ability to clear helium and no pollutant removal.

Compact structural design to facilitate integration into leak detection systems according to customer needs

Double iridium ion source, strong antioxidant capacity and long service life.


Product Parameter

Minimum leak detection rate

3×10-13 Pa·m3/s

Maximum intake pressure

≤1500 Pa

Start time

≤90 S

Response time

≤0.5 S

Communication

RS232,RS485,USB

Calibration

Internal automatic/external manual

Language

Chinese/English

Interface dimensions

DN KF25/DN KF16

Power / Voltage

DC24V,240W

Backing pump

≥2.5L/S

Weight

22 Kg

Size

370*230*300 mm

Work environment

Temperature:10-40℃ Humidity:≤ 75%

Detectable masses

H2,He3,He4
