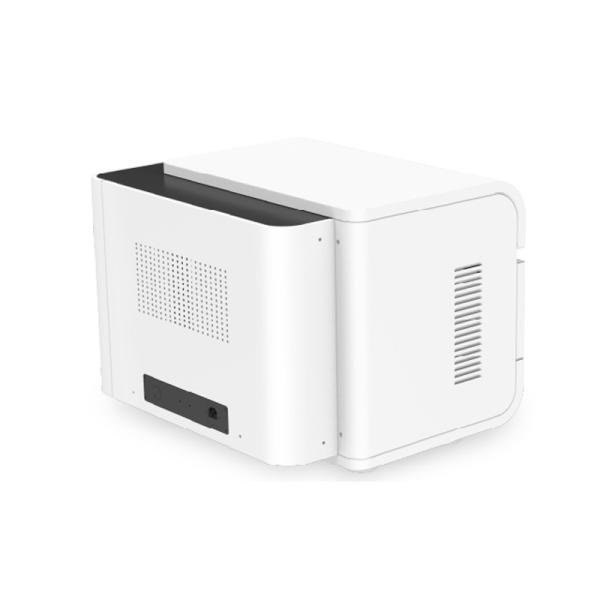

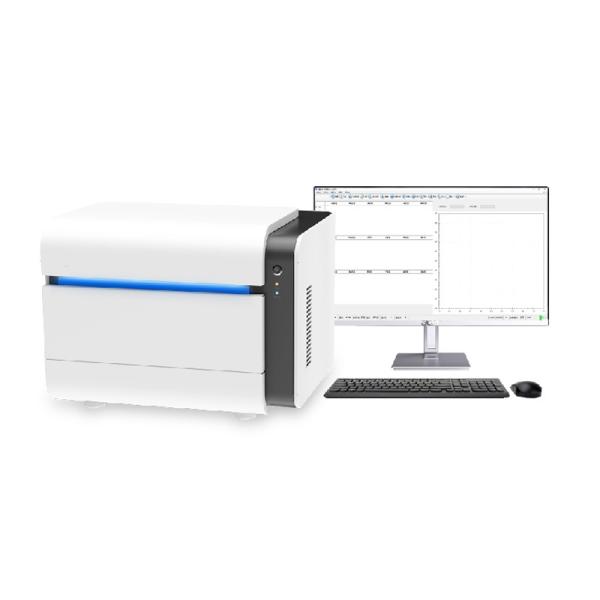

EDX-6000 XRF Test Machine XRF Gold Tester Metal Analyzer
EDX-6000 XRF Test Machine XRF Gold Tester Metal Analyzer
EDX-6000 XRF Test Machine XRF Gold Tester Metal Analyzer
EDX-6000 XRF Test Machine XRF Gold Tester Metal Analyzer
EDX-6000 XRF Test Machine XRF Gold Tester Metal Analyzer
EDX-6000 XRF Test Machine XRF Gold Tester Metal Analyzer
Specifications
Brand Name :
Lonroy
Model Number :
EDX-6000
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Dimension :
550(W)*450(D)*450(H)mm
Weight :
40KG
Test time :
100-300s
Temperature :
10-35ºC
Power requirements :
AC220 10% 50/60Hz
Humidity :
30-70%RH
Warranty :
1 Year
Description

EDX-6000 XRF Test Machine XRF Gold Tester Metal Analyzer
Description:

X-ray fluorescence analyzer provides stable, most accurate and most economic methods for the determination. It is an ideal analyzer to control the quality of products.

It can be used for wide range of elements, from Na(11)-U(92). The Silicon Drift Detector with multi-channel analyzer detects the X-ray fluorescence radiation and accumulates counts to form an intensity versus energy spectrum of the sample.

Feature

1.High accuracy and affordable.

2. Complete analysis within a few seconds.

3. Optimized to customer requirements and optimal advisory services.

4. Open working curve, tailor-made for the user with the best detection and control program of hazardous substances.

5. Easily upgrade for future test samples types expansion.

6. Automatic quantitative analysis report is concise and accurate

7. It has the function of automatically detecting the working state of the instrument.

8. Humanized design, configuring as a bench top or floor model with storage possibilities for consumables and spares.

Applications

Electronics, Petrochemical products, Metal materials, Mineral ,Medicine ,Building materials, Plastics and Polymers, Food and Cosmetics, Product analysis in central laboratory etc.


Technical Parameter

Analysis range From Na(11) to U(92)
Detection limit Cd/Hg/Br/Cr/Pb≤2 ppm
Sample shape No requirement
Sample type Solid/Powder/Liquid
X-Ray Tube Target Mo
Voltage range 5-50kV
Current range 1-1000µA
Collimator 2,5,8mm
Detector Si-PIN Detector from America (MCC)
High-voltage generator SPELLMAN from America
Pre-Amp Imported from America
Main amplifier Imported from America
AD conversion module Imported from America
ADC 2048
Filter Automatic selection and conversion(six filters)
Sample observation 1.3 million pixels of CCD camera
Analysis software

Proprietary soft products

Free lifetime upgrade
Test method Theoretical a-coefficient Method ,FP and EC
Test environment Temperature:10-35℃ Humidity:30-70%RH
Dimension and Weight 550(W)*450(D)*450(H)mm 40kg(Host)
Power supply requirements AC220±10%,50/60Hz
Test time 100-300s(Adjustable)
