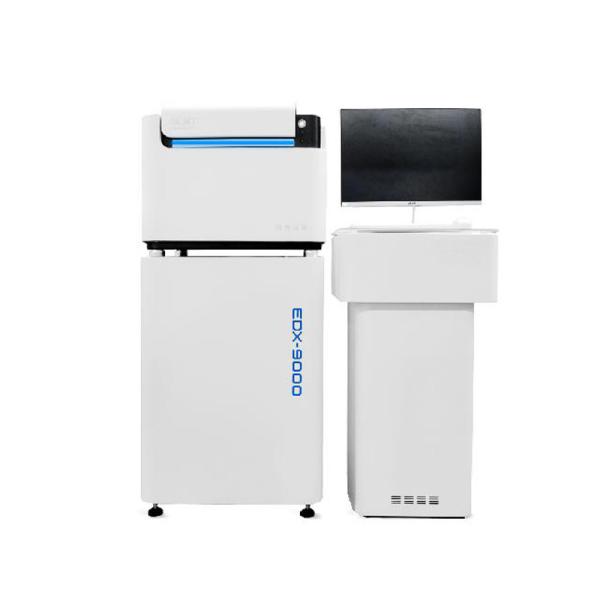

EDX-9000PRO X-ray Fluorescence Analyzer XRF Metal Test Machine Emission Spectrometer
EDX-9000PRO X-ray Fluorescence Analyzer XRF Metal Test Machine Emission Spectrometer
EDX-9000PRO X-ray Fluorescence Analyzer XRF Metal Test Machine Emission Spectrometer
EDX-9000PRO X-ray Fluorescence Analyzer XRF Metal Test Machine Emission Spectrometer
EDX-9000PRO X-ray Fluorescence Analyzer XRF Metal Test Machine Emission Spectrometer
EDX-9000PRO X-ray Fluorescence Analyzer XRF Metal Test Machine Emission Spectrometer
EDX-9000PRO X-ray Fluorescence Analyzer XRF Metal Test Machine Emission Spectrometer
EDX-9000PRO X-ray Fluorescence Analyzer XRF Metal Test Machine Emission Spectrometer
EDX-9000PRO X-ray Fluorescence Analyzer XRF Metal Test Machine Emission Spectrometer
EDX-9000PRO X-ray Fluorescence Analyzer XRF Metal Test Machine Emission Spectrometer
Specifications
Brand Name :
Lonroy
Model Number :
EDX-9000PRO
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Dimension :
600(W)*500(D)*500(H)mm
Weight :
60KG
Test time :
100-300s
Lower limit :
1ppm-100ppm
Temperature :
10-35ºC
Humidity :
30-70%RH
Warranty :
1 Year
Description

EDX-9000PRO X-ray Fluorescence Analyzer XRF Metal Test Machine Emission Spectrometer
Description:

X-ray fluorescence analyzer provides stable, most accurate and most economic methods for the determination. It is an ideal analyzer to control the quality of products.

It can be used for wide range of elements, from Na(11)-U(92). The Silicon Drift Detector with multi-channel analyzer detects the X-ray fluorescence radiation and accumulates counts to form an intensity versus energy spectrum of the sample.

Feature

1.Highly efficient and extremely thin window X-ray tube which achieves international advanced level.

2.Silicon Drift Detector (SDD), great energy linearity,excellent energy resolution and spectrum, high peak/base rate

3.Low energy X-ray excitation to elements, great excitation to Si, P and other light elements

4.Intelligent vacuuming system eliminates air influences, which greatly improves testing range

5.Automatic spectrum-stabilizing device ensures stability of the instrument

6.High Signal-to-Noise electronic circuit unit

7.Automatic switch of collimators and filters instead of manual operation

8.Analysis spectrum technology ensures great repeatability

9.Multi-parameter linear regression method restrains absorptions between different elements

10.Built-in HD camera

11.LCD screen directly displays testing results (tube voltage, tube current, and vacuum degree)

Applications

Electronics, Petrochemical products, Metal materials, Mineral, Medicine, Building materials, Plastics and Polymers, Food and Cosmetics, Product analysis in central laboratory etc.


Technical Parameter

TECHNICAL PARAMETER
Analysis range From Na(11) to U(92)
Lower limit 1ppm-100ppm
Sample shape Soild/Power
Sample room size φ270x100mm
X-Ray Tube Target Optional
X-Ray Tube Voltage range 5-50kV
X-Ray Tube Current range 1-1000μA
Collimator 2,4,6,8mm
Detector Fast SDD detector
Pre-Amp Imported
Main amplifier Imported
AD conversion module Imported
Counting Ability 1300000
Filter CPS
Sample observation 1.3 million pixels of CCD camera
Analysis software

Proprietary soft products

Free lifetime upgrade
Test method The oretical a-coefficient Method,FP and EC
Test environment Temperature:10-35℃ Humidity:30-70%RH
Dimension and Weight 600(W)*500(D)*500(H)mm 60kg(Host)
Power supply requirements AC22010%,50/60Hz
Test time 100-300s(Adjustable)
