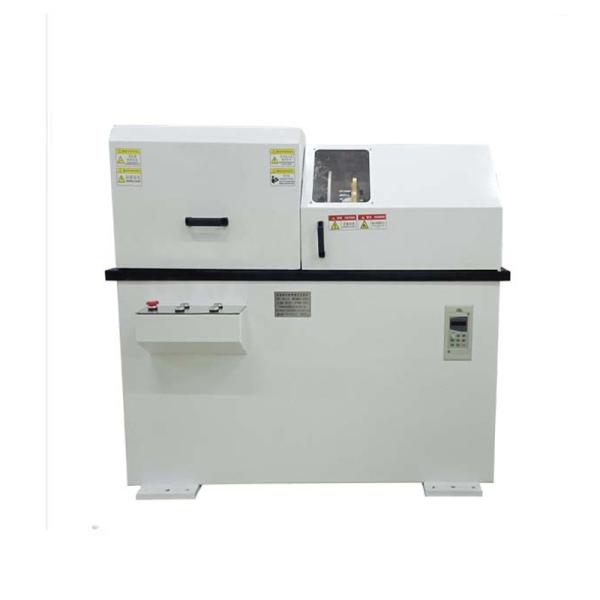

High-speed Current-carrying Friction Wear Testing Machine Rubbing Wear Tester Lab Test Machine
High-speed Current-carrying Friction Wear Testing Machine Rubbing Wear Tester Lab Test Machine
Specifications
Brand Name :
Lonroy
Model Number :
LR-FHC
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Warranty :
1 year
Constant load, heavy load :
300N
Test force loading accuracy :
±1%FS
Contact form :
Spindle type
Description

High-speed Current-carrying Friction Wear Testing Machine Rubbing Wear Tester Lab Test Machine

High-speed Current-carrying Friction Wear Testing Machine Rubbing Wear Tester

Product Introduction

This high-speed current-carrying friction and wear testing machine is mainly used to study the friction and wear performance of the current-carrying device in locomotives or similar devices during high-speed operation.


Product Parameter

Constant load, heavy load

300N

Test force loading accuracy

±1%FS

Dynamic alternating loading

Sine wave, triangular wave, ramp wave

Dynamic heavy load with high frequency

30HZ

Spindle speed

200 - 12000 rpm continuous speed regulation

Measure the maximum value of the friction torque

30N.m

Diameter of the pin sample

According to the sample requirements

Large diameter of the disc sample

200mm

Contact form

Spindle type

Measurement range of wear amount

0 to 10mm

Measurement accuracy of wear amount

±1%

Current carrying range

0 - 800A (Reserved current-carrying interface)

Loading method

Separate constant load and dynamic loading device (various waveform loading methods can be set according to research assessment requirements)

Control method

Real-time data control by computer

Mainframe power

15KW
