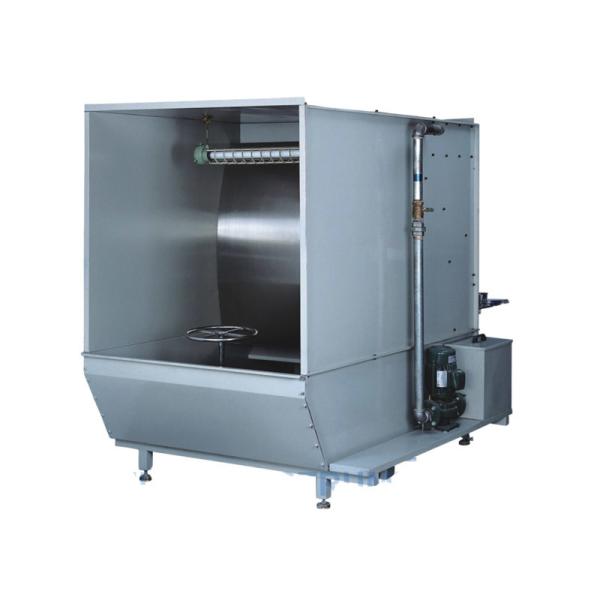

BGD 229 Water Curtain Paint Spraying Cabinet Booth Water Curtain Paint Oven
BGD 229 Water Curtain Paint Spraying Cabinet Booth Water Curtain Paint Oven
Specifications
Brand Name :
Lonroy
Model Number :
BGD 229
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Weight (including fan, KG) :
250/300/350
Pump power(KW) :
0.75
Air outlet size(L×W/mm) :
250×290
Fan motor power(KW) :
1.1/1.5/1.5
Color :
Grey
Description

BGD 229 Water Curtain Paint Spraying Cabinet Booth Water Curtain Paint Oven

1.Description:Water curtain type paint spraying cabinet can prevent paint powder from dispersing and causing environmental pollution. It is the use of water "film" effect and viscosity so that the paint and water mixed with the paint and air detachment, due to the use of the secondary spray system, so that the water curtain cabinet of the waste paint removal rate of more than 99%, the use of water recycling system recycling.

Characteristics: Automated painting equipment from removing oil rust, spraying paint and powder, drying and curing to the finished product, to realize its high efficiency, save paint, low pollution. Applicable industries: suitable for the production of large quantities of workpieces in household electric power plants, bicycle factories, handicraft factories and hardware and plastic factories.

Performance characteristics:

* It is composed of pool, water curtain board, top board, side board, water circulation system and air extraction system, with good environmental protection performance, good paint aerosol filtration effect and no leakage phenomenon;

* Cabinet cabinet using 1.5MM cold plate bending into, with M16 feet cup, surface electrostatic spraying paint treatment (not ordinary paint), corrosion resistance, rust prevention;

* Overflow water tank with 1.5MM stainless steel plate manufacturing.

* The water circulation adopts 3 inch PVC water pipe with drain valve and copper ball control valve.

2.Technical Parameter

Order information → BGD 229/1 BGD 229/2 BGD 229/3
technical parameters ↓
Water curtain size(L×H,mm) 1500×1140 2000×1140 2440×1140
Fan motor power(KW) 1.1 1.5 1.5
Air outlet size(L×W/mm) 250×290 250×290 250×290
Exhaust air volume(m³/h) 1330 1380 1380
Pump power(KW) 0.75 0.75 0.75
outline dimension(L×W×H/cm) 185×155×240 235×155×240 280×155×240
Weight (including fan, KG) 250 300 350
