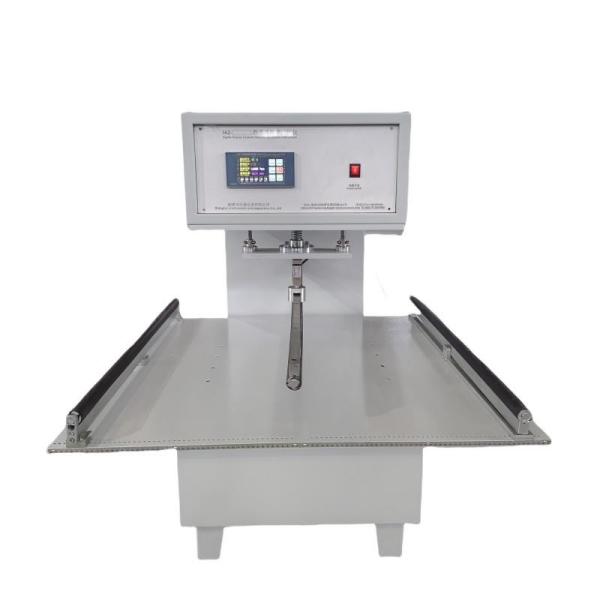

CKZ-10000 ISO 10545 Intelligent Ceramic Impact Tester Ceramic Tile Bending Testing Machine Ceramic
CKZ-10000 ISO 10545 Intelligent Ceramic Impact Tester Ceramic Tile Bending Testing Machine Ceramic
Specifications
Brand Name :
Lonroy
Model Number :
CKZ-10000
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Power Supply :
220 V, 0.2 kW
Loading Rate :
1-700 N/s
Maximum Load :
10000 N
Accuracy :
0.5%
Warranty :
1 Year
Description

CKZ-10000 ISO 10545 Intelligent Ceramic Impact Tester Ceramic Tile Bending Testing Machine Ceramic

CKZ-10000 ISO 10545 Intelligent Ceramic Impact Tester Ceramic Tile Bending Testing Machine

1.Description:

This instrument adopts a deceleration motor speed control loading mechanism and a touch screen microcomputer for control, calculation and display. It complies with GB/T 3810.4-2016 / ISO 10545-4:2014 "Test methods for ceramic tiles - Determination of flexural modulus and breaking strength", and is also applicable for measuring the flexural strength and compressive strength of engineering ceramics, electrical ceramics, daily-use ceramics, ceramic pipes, and brick and tile products. By changing the fixture, it can also be used to measure parameters such as tear resistance.

2.Technical Parameter

Parameter Specification
Maximum Load 10000 N
Loading Rate 1-700 N/s (Digital Adjustable Display)
Sample Size Range Option 1: 60×60 mm - 600×600 mm
Option 2: 60×60 mm - 800×800 mm
Option 3: 60×60 mm - 1000×1000 mm
1200×1200 mm available upon customization
Data Processing Computerized, Accuracy: 0.5%
Touchscreen Interface Real-time pressure display, Peak pressure display, Loading speed display, Sample size input, Parameter settings, Calibration interface
Automatic Calculation Breaking Strength (S), Modulus of Rupture (R)
Power Supply 220 V, 0.2 kW
