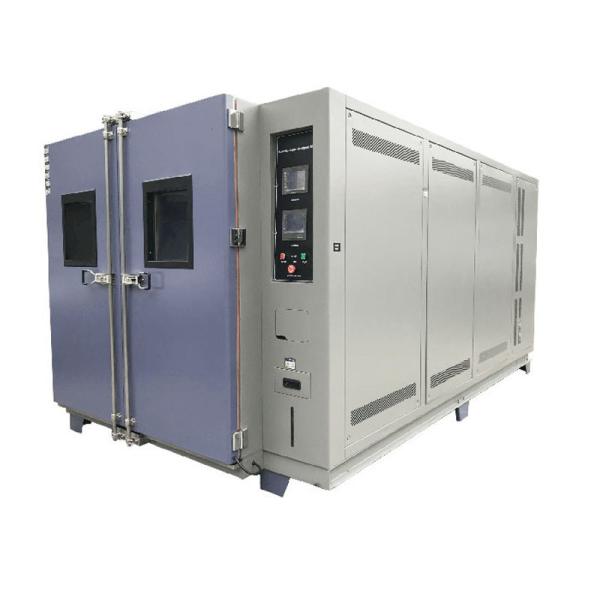

Wet Heat Test Chamber PV Module Test Machine IEC 61215 Standard with 85ºC/85%RH Continuous Time ≥1000h and Touch Screen Control
Wet Heat Test Chamber PV Module Test Machine IEC 61215 Standard with 85ºC/85%RH Continuous Time ≥1000h and Touch Screen Control
Specifications
Brand Name :
Lonroy
Model Number :
LR-H16
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Price :
Negotaible
Test temperature :
85ºC±2ºC
Relative humidity :
85%±5%
Temperature fluctuation :
≤±1ºC
Temperature uniformity :
≤2ºC
Humidity range :
30~95%RH
Inner box size :
1.5×2.5×1.5m (L*W*H)
Description
Wet Heat Environment Test Chamber PV Module Wet Heat Test Machine
Product Overview

The PV Module Wet Heat Test Machine meets IEC 61215 and UL 1073 standards, designed to test photovoltaic modules in high temperature and high humidity environments. This environmental chamber exposes modules to controlled wet heat conditions to evaluate their durability and performance capabilities.

Technical Specifications
Parameter Specification
Test Temperature 85ºC±2ºC
Relative Humidity 85%±5%
Temperature Fluctuation ≤±1ºC
Temperature Deviation ≤±1ºC
Temperature Uniformity ≤2ºC
Humidity Range 30~95%RH
Relative Humidity Deviation ≤±2.5%RH (humidity>75%RH)
Common Humidity Points 85ºC/85%RH continuous time ≥1000h
90ºC/90%RH continuous time ≥1000h
Inner Box Size Approximately 1.5×2.5×1.5m (L×W×H)
Outer Box Size Approximately 2.5×3.0×2.5m (L×W×H)
Power Supply 380V 60HZ
Key Features
  • Touch Screen + PID Self-Control: Advanced control system for precise environmental management
  • Capacity: Can hold 12 test components simultaneously
  • Construction Materials: Inner box - stainless steel panel (SUS #304); Outer box - steel plate with baking varnish
  • Insulation: Rigid foam and glass wool for optimal thermal efficiency
  • Access Design: Double door configuration with middle door for test object entry and exit
  • Power Management: Power-off program memory with automatic restart and continuous program execution
  • Communication: RS-232 or RS-485 communication interface
  • Air Circulation: Motor-driven air supply circulation system
  • Refrigeration: Environmentally friendly refrigerant with condenser
  • Display & Control: Touch screen control with Chinese and English language switching
  • Data Management: Export, view graphics function for comprehensive data analysis
Compliance Standards

Designed to meet IEC 61215 and UL 1073 standards for photovoltaic module testing in wet heat environments, ensuring reliable and standardized performance evaluation.
