Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
18 KW
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Heater :
3 * 6 KW
Dimensions :
2620 * 900 * 1400 mm (L*W*H)
Temperature Controllers :
2 sets
Total Power :
18 KW
MOQ :
1
Description

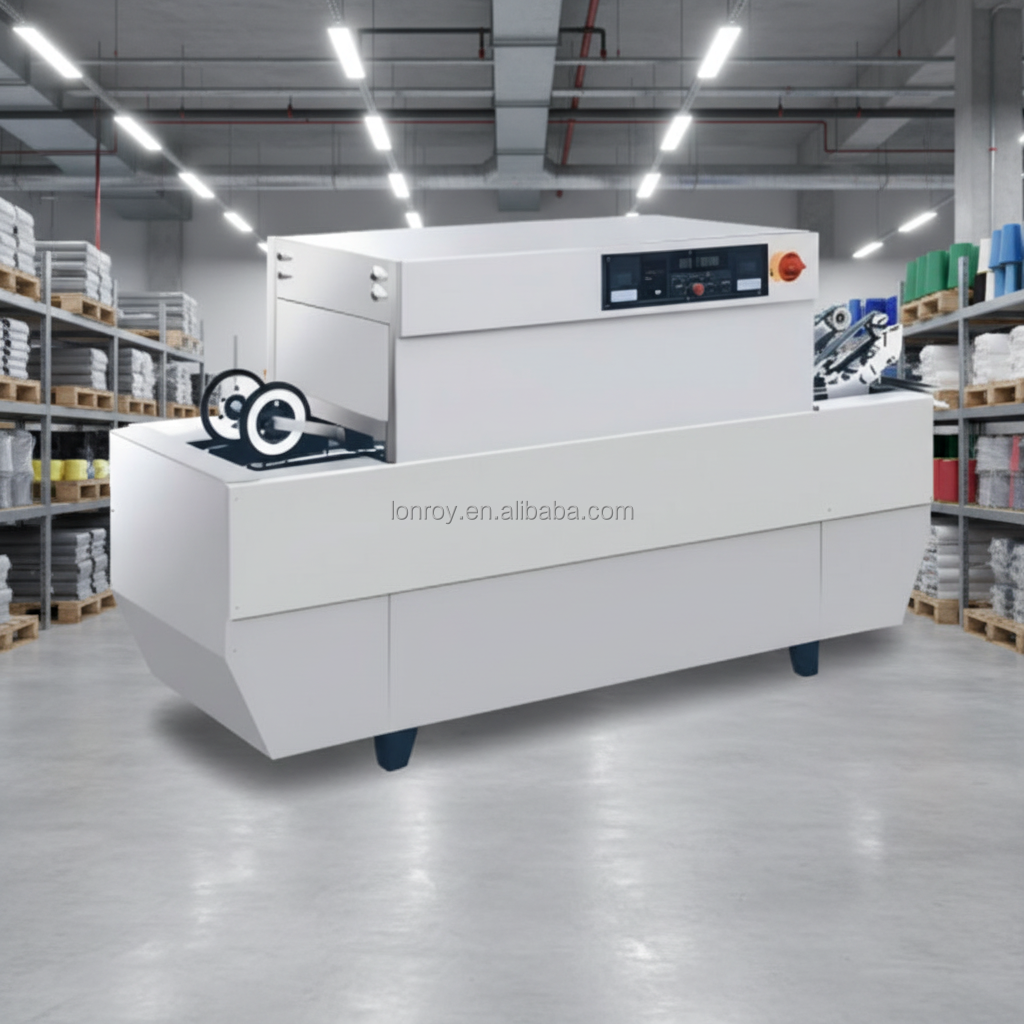

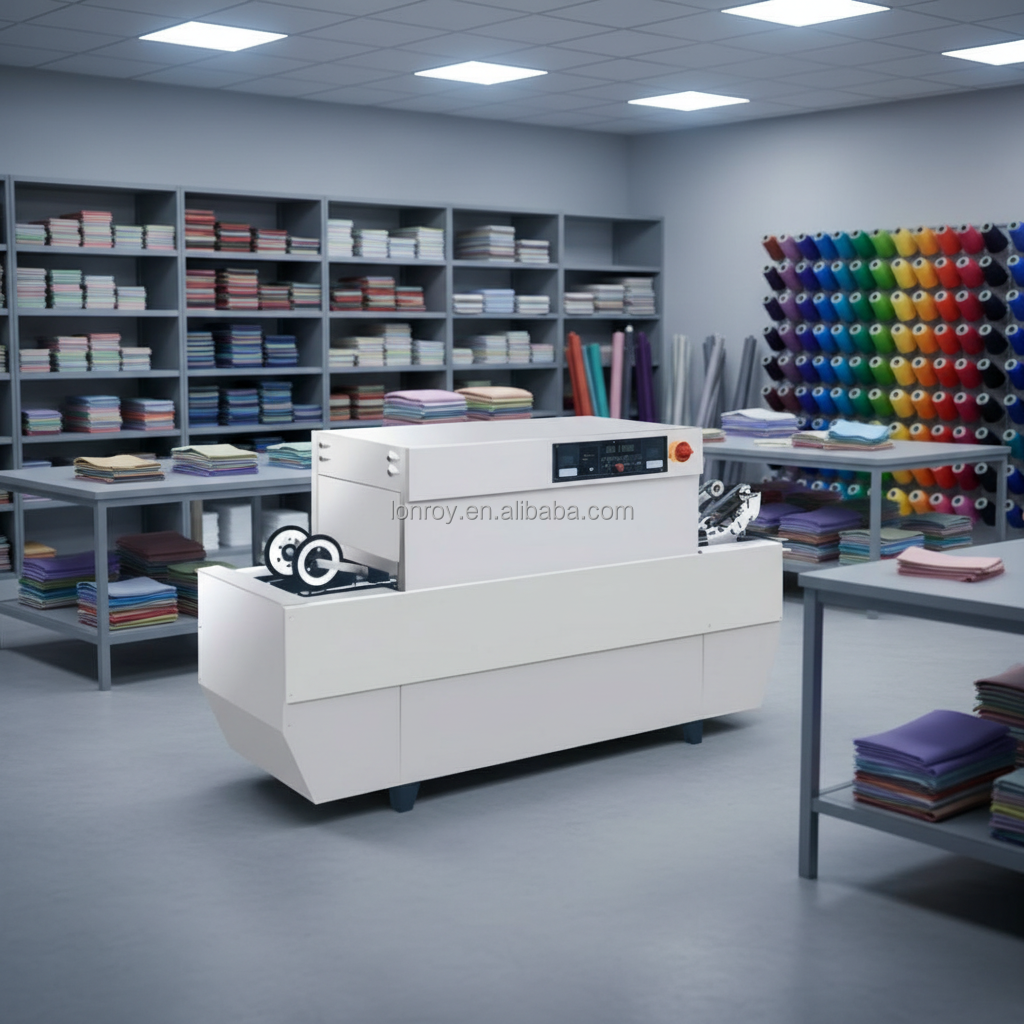

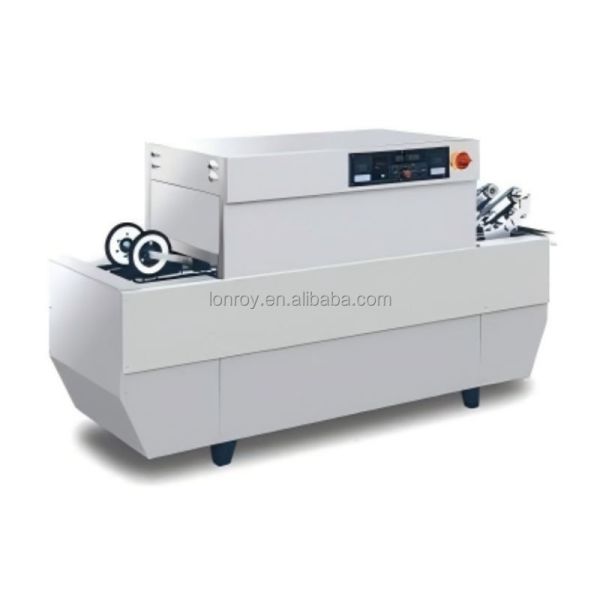

Continuous Stenter Drying Machine Laboratory Dyeing and Finishing Drying Process Simulating Equipment Fabric Feel Tester

Product Description

Application Scope

This machine is suitable for simulating the dyeing and finishing drying process in a laboratory setting, conducting resin hot-melt dyeing and baking fixation tests, obtaining and verifying the composition formulas and process conditions of dyes and auxiliaries, and testing important quality aspects such as fabric feel, dye discoloration, and color fastness, obtaining flat and accurate finished fabric samples. The entire machine is made of high-quality stainless steel, which is corrosion-resistant, easy to clean, and aesthetically pleasing.

Equipment Features

1. Box-type integrated structure, completely simulating the performance of a large-scale industrial hot air stenter machine, and featuring a comprehensive thermal insulation and energy-saving design.

2. Dual temperature control, allowing separate setting and control of the front and rear chamber temperatures.

3. Hot air circulation, the fan uses an imported special high-temperature resistant motor.

4. Symmetrical staggered air duct structure ensures uniform hot air distribution.

5. Imported digital display PID temperature controller automatic temperature control system provides stable and accurate temperature control.

6. Pin plate chain structure with automatic width adjustment device;

Sample width: 160mm~330mm.

7. Variable frequency speed control: 0~3.23 meters/minute

8. Fabric feeding features a pressure roller, and fabric output has an automatic fabric removal device.

SContinuous Stenter Drying Machine Laboratory Dyeing and Finishing Drying Process Simulating Equipment Fabric Feel Tester

Technical Specification

Working Temperature

Room temperature ~ 250℃

Temperature Controllers

2 sets

Control Accuracy

±1℃

Drying Time

20s – 360s

Variable Frequency Speed Control

0 – 3.23 m/min

Sample Width

160 – 330 mm

Heater

3 × 6 KW

Total Power

18 KW

Dimensions

2620 × 900 × 1400 mm (L×W×H)

Weight

Approximately 650 kg

Continuous Stenter Drying Machine Laboratory Dyeing and Finishing Drying Process Simulating Equipment Fabric Feel TesterContinuous Stenter Drying Machine Laboratory Dyeing and Finishing Drying Process Simulating Equipment Fabric Feel TesterContinuous Stenter Drying Machine Laboratory Dyeing and Finishing Drying Process Simulating Equipment Fabric Feel TesterContinuous Stenter Drying Machine Laboratory Dyeing and Finishing Drying Process Simulating Equipment Fabric Feel Tester
