Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
/
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Sample temperature :
25 ± 1℃
Column rotation speed :
240 ± 1r/min
Test time :
30 ± 0.1min
Sample volume used :
50ml ± 1.0ml
MOQ :
1
Description

ASTM D5001 Aviation Kerosene Lubricity Tester Aviation Fuels Lubrication Performance Test Machine Ball Ring Wear test Sy

ASTM D5001 Aviation Kerosene Lubricity Tester Aviation Fuels Lubrication Performance Test Machine Ball Ring Wear test System

Product Introduction

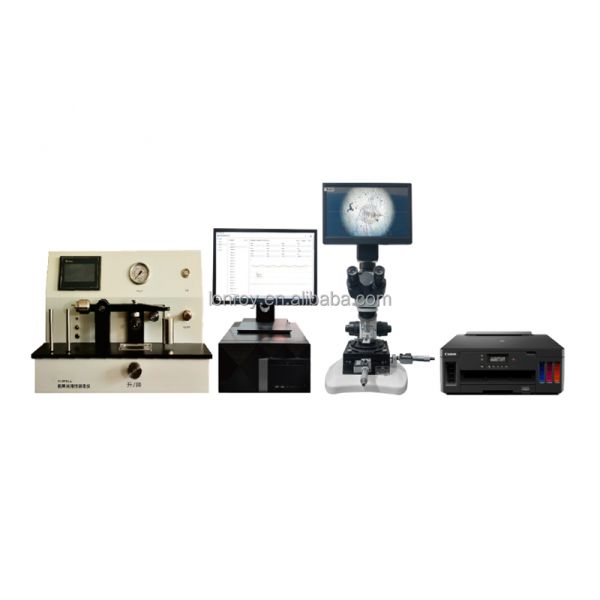

The aviation kerosene lubricity tester is suitable for evaluating the lubrication performance of aviation fuels (mainly jet fuels); it complies with the test methods standards of SH/T0687 and ASTM D5001.

It is a fully automatic ball ring wear test system that can quickly and repeatedly assess the lubricity of aviation fuel.

The instrument is composed of standard steel balls and standard test rings for friction. Under controlled test conditions, the size of the wear marks produced on the steel balls is used to evaluate the boundary lubrication performance of aviation fuel.

AASTM D5001 Aviation Kerosene Lubricity Tester Aviation Fuels Lubrication Performance Test Machine Ball Ring Wear test System

Technical Specification

Conforms to the standard

ASTM D5001-2023 (Appendix A2 - Fully Automatic Method), SH/T0687

Sample volume used

50ml ± 1.0ml

Test load weight

1000 grams (with a 500g weight) ± 1g, automatically loaded

Sample temperature

25 ± 1℃

Air flow rate

3.8 ± 0.05 liters per minute

Air humidity

The relative humidity at 25 ± 1℃ is 10 ± 0.2%, automatically controlled

Sample pre-treatment

One air flow is introduced into the sample at a rate of 0.5L/min, while another air flow passes over the surface of the sample at a rate of 3.3L/min for 15 minutes; The air flow rate and humidity are automatically adjusted through a mass flowmeter

Test conditions for the sample

The air flows at 3.8L/min over the surface of the sample, and the air flow rate is automatically adjusted through a mass flowmeter

Test time

30 ± 0.1min

Column rotation speed

240 ± 1r/min

Scratch measurement system

Equipped with a metallographic microscope that can magnify 100 times, with X/Y dual-direction reading, precision of 1μm; Video display measurement system, intuitive and convenient; Equipped with a computer and software for storing the scratch images of the test results, facilitating editing and printing of the test report

Sliding micrometer

Equipped with X/Y dual-direction digital micrometer, precision of 1μm

Test ring

Complies with the requirements of SH/T 0687 standard 7.1.1

Test ball

Complies with the requirements of SH/T 0687 standard 7.1.3

Reference liquids

High reference liquid A, low reference liquid B, in accordance with the requirements of SH/T0687 standard

ASTM D5001 Aviation Kerosene Lubricity Tester Aviation Fuels Lubrication Performance Test Machine Ball Ring Wear test SyASTM D5001 Aviation Kerosene Lubricity Tester Aviation Fuels Lubrication Performance Test Machine Ball Ring Wear test SyASTM D5001 Aviation Kerosene Lubricity Tester Aviation Fuels Lubrication Performance Test Machine Ball Ring Wear test SyASTM D5001 Aviation Kerosene Lubricity Tester Aviation Fuels Lubrication Performance Test Machine Ball Ring Wear test Sy
