Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
/
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Data Transmission :
USB
Working Environment :
0~40 °C, ≤ 65% RH
Operating System :
Windows
Reference Standard :
GB/T 10294, ISO 8302, ASTM C177
MOQ :
1
Description

ISO 8302 ASTM C177 Ultra-Low Temperature Thermal Conductivity Meter Automatic Insulation Materials Thermal Resistance Te

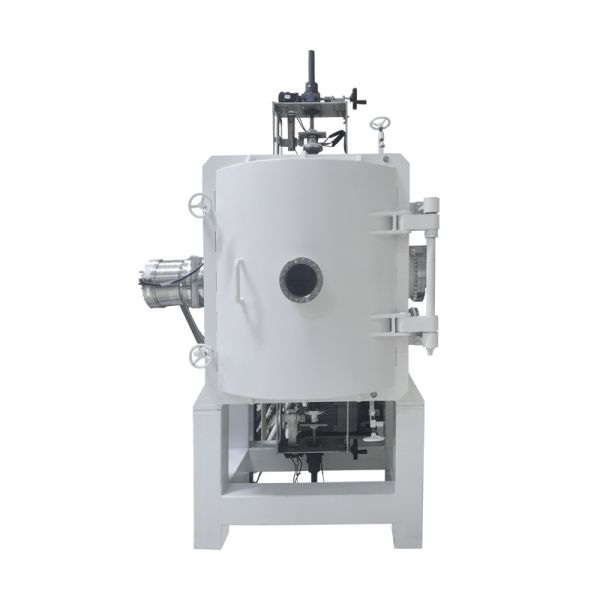

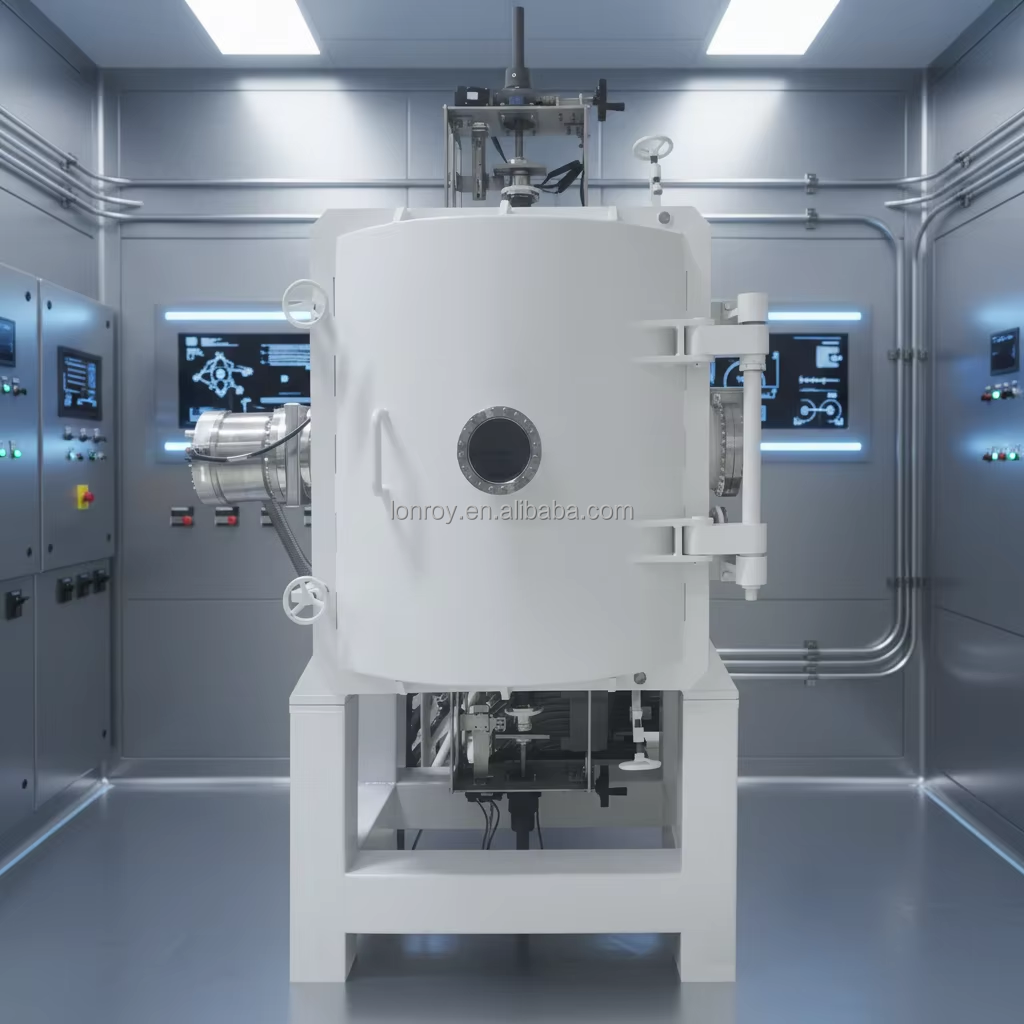

ISO 8302 ASTM C177 Ultra-Low Temperature Thermal Conductivity Meter Automatic Insulation Materials Thermal Resistance Tester

Description

The ultra-low temperature thermal conductivity meter uses the guarded hot plate method to directly measure the thermal conductivity and thermal resistance of thermal insulation materials, enabling stable control of environmental vacuum and high-low temperature conditions. It features high measurement accuracy and excellent temperature control stability, with automatic pressure application/monitoring and thickness measurement, suitable for sample testing within -160~200 ℃.

Key Features

1. Precise one-dimensional heat transfer: High-precision multi-point thermopile for guarded hot plate temperature control effectively prevents heat loss from the hot plate, conforming to the ideal one-dimensional heat transfer model.

2. Multiple test atmospheres: Testable under vacuum, oxidizing and inert atmospheres.

3. Wide temperature range: Capable of measuring thermal conductivity/thermal resistance at ultra-low temperatures down to -160℃.

4. Fully automated operation: Automatic temperature control, thickness measurement, pressure application, pressure monitoring, and multi-temperature point automatic measurement.

5. Easy operation: Simple instrument connection; quick connection between host and testing software, as well as host and temperature control system via USB.

6. Broad applicability: Suitable for insulation materials, multi-layer materials, foam materials, refractory materials, aerogels, etc.

CISO 8302 ASTM C177 Ultra-Low Temperature Thermal Conductivity Meter Automatic Insulation Materials Thermal Resistance Tester

Technical Specification

Measurement Principle

Guarded hot plate method

Temperature Range

Hot plate: -150~210 °C; Cold plate: -170~190 °C

Measurement Range

0.002 ~ 2 W/(m·K)

Thermal Resistance Range

0.02~4 (m²·K)/W

Measurement Accuracy

± 5% (around RT ± 1%)

Resolution

0.0001 W/(m·K)

Atmosphere

Vacuum, inert, oxidizing

Sample Quantity

Two pieces, same size

Sample Size

300×300×(5~45) mm; surface flatness better than 0.025%

Pressurization Mode

Automatic pressurization

Pressure Measurement

Automatic pressure measurement, pressure less than 2.5 kPa

Thickness Measurement

Automatic thickness measurement

Application Scope

Thermal insulation materials, building materials, polymers, multi-layer materials, porous materials, etc

Data Transmission

USB

Operating System

Windows

Working Environment

0~40 °C, ≤ 65% RH

Reference Standard

GB/T 10294, ISO 8302, ASTM C177
