JIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue Tester
JIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue Tester
JIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue Tester
JIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue Tester
JIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue Tester
JIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue Tester
JIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue Tester
JIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue Tester
JIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue Tester
JIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue Tester
JIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue Tester
JIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue Tester
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Product name :
Multi-functional V-belt Fatigue Testing Machine
Model Number :
LR-G109
MOQ :
1
Description

JIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue Tester

Product Description

Features and Application

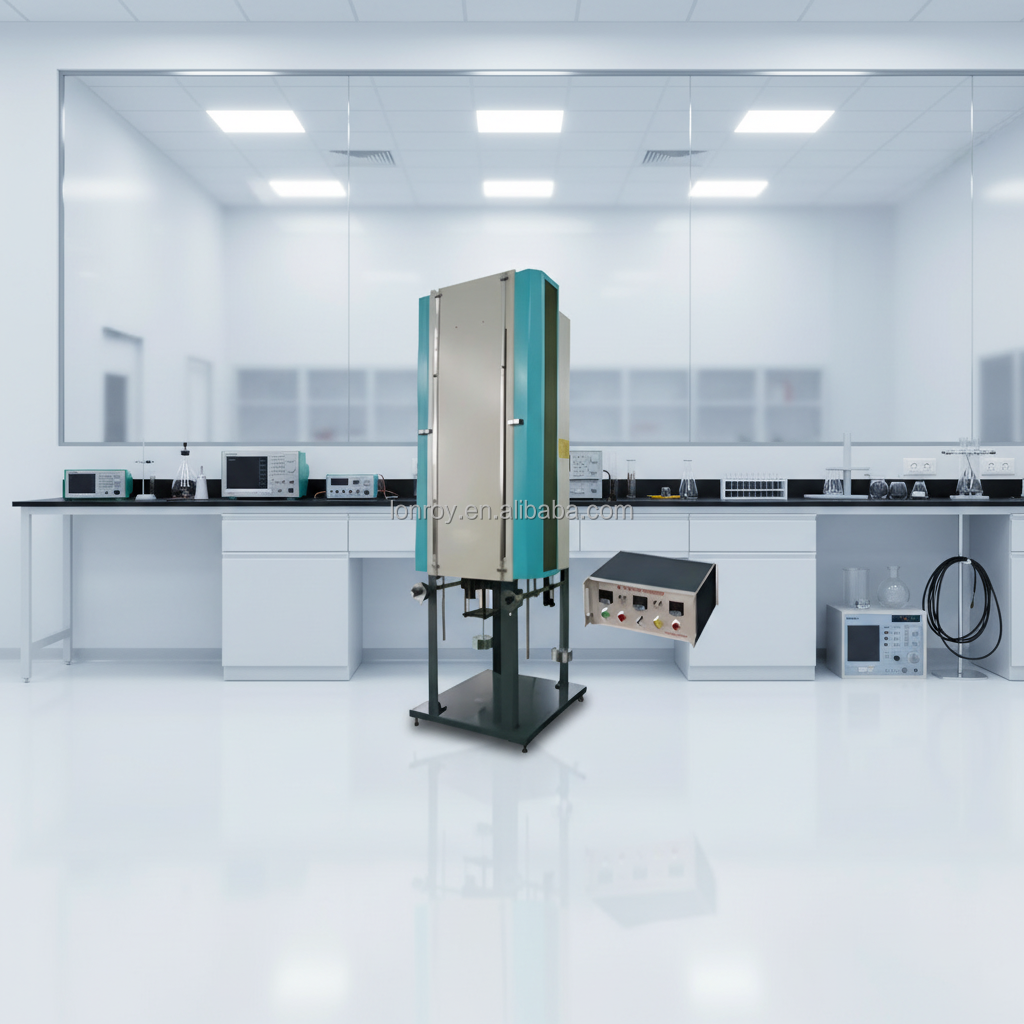

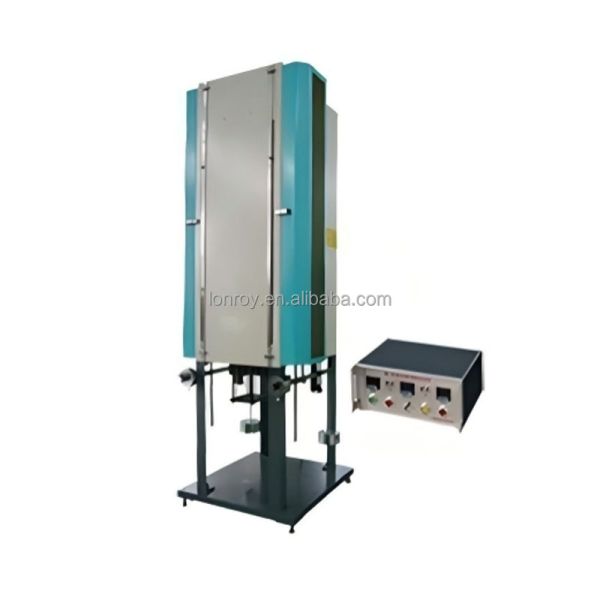

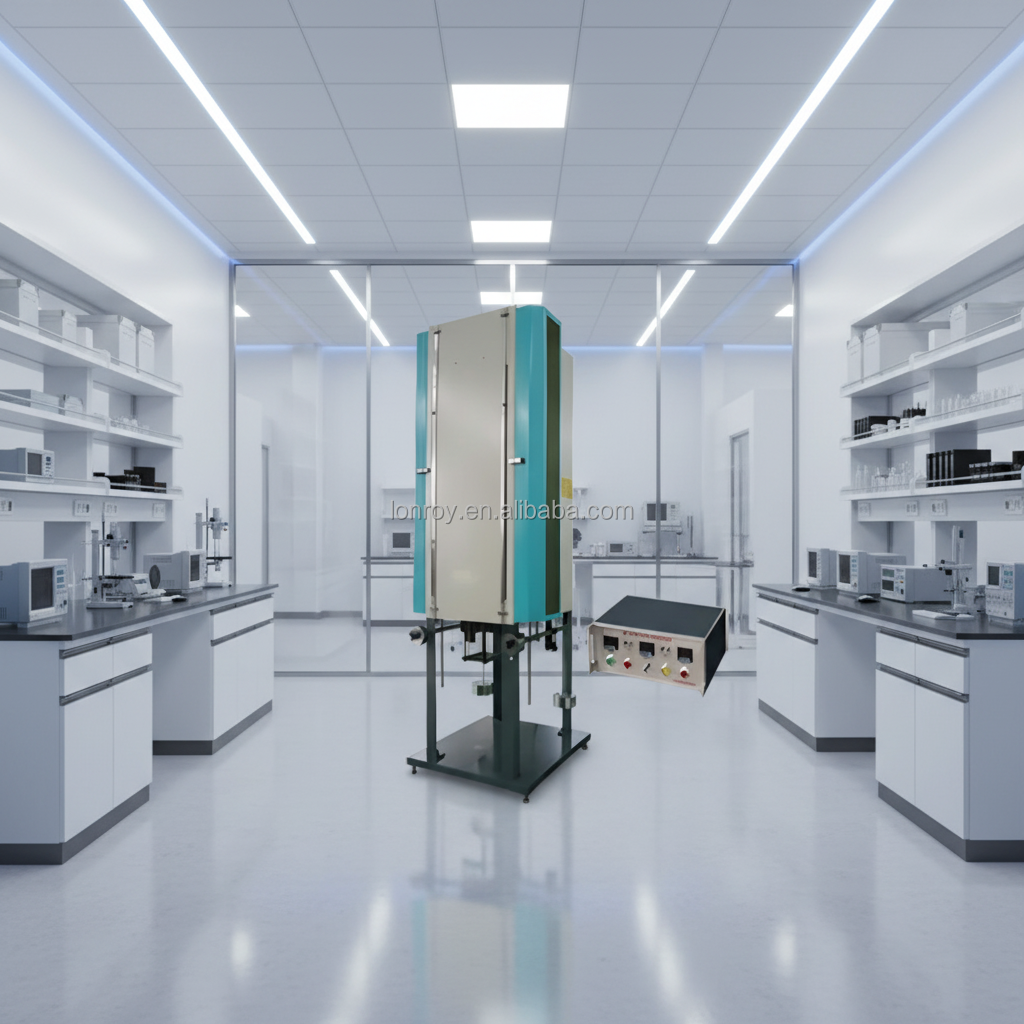

The multi-functional V-belt fatigue testing machine is used to determine the fatigue life of ordinary V-belts, general-purpose narrow V-belts, and washing machine V-belts. The V-belt is installed on the two pulleys of the testing machine, and after applying a specified tension, it is operated at a certain speed without torque. The change rate of the V-belt center distance after 24 hours and whether the V-belt reaches the specified fatigue life are measured. Two V-belts can be tested simultaneously. It also has a length measurement function and can be used as a length measuring machine. It can also be used for fatigue testing and length measurement of other types of belts. It features variable frequency speed control, digital display of speed and operating time, adjustable speed, and retains data after V-belt breakage. It is easy to operate, has a novel design, a beautiful appearance, and high reliability.

This testing machine complies with the newly promulgated GB/T1171-1996 "General Purpose Ordinary V-belts", GB/T15328-2009 "Fatigue Test Method for Ordinary V-belts (No-torque Method)", GB/T12730-2002 "General Purpose Narrow V-belts", HG/T2442-2001 "Washing Machine V-belts", and JIS K6323-1989 "General Purpose V-belts" requirements.

IJIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue Tester

Technical Specification

Customized support

OEM, ODM, OBM

Place of origin

Guangdong, China

Warranty

1 Year

Brand name

Lonroy

Product name

Multi-functional V-belt Fatigue Testing Machine

Model Number

LR-G109

power

Electronic

JIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue TesterJIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue TesterJIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue TesterJIS K6323 Multi-functional V-belt Fatigue Testing Machine V-Belt Fatigue Test Rig Washing Machine V-belts Fatigue Tester
