Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
100 W
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Power Supply :
220 V 50 Hz 100 W
Spindle speed :
1800 r/min
Dimensions :
660*1030*1530 mm
Weight :
Approximately 350 kg
MOQ :
1
Description

Bearing Vibration Analyzer Bearing Vibration Measuring Instrument Deep Groove Ball Bearings Vibration Velocity Tester La

Bearing Vibration Analyzer Bearing Vibration Measuring Instrument Deep Groove Ball Bearings Vibration Velocity Tester

Product Description

Product Overview and Applications

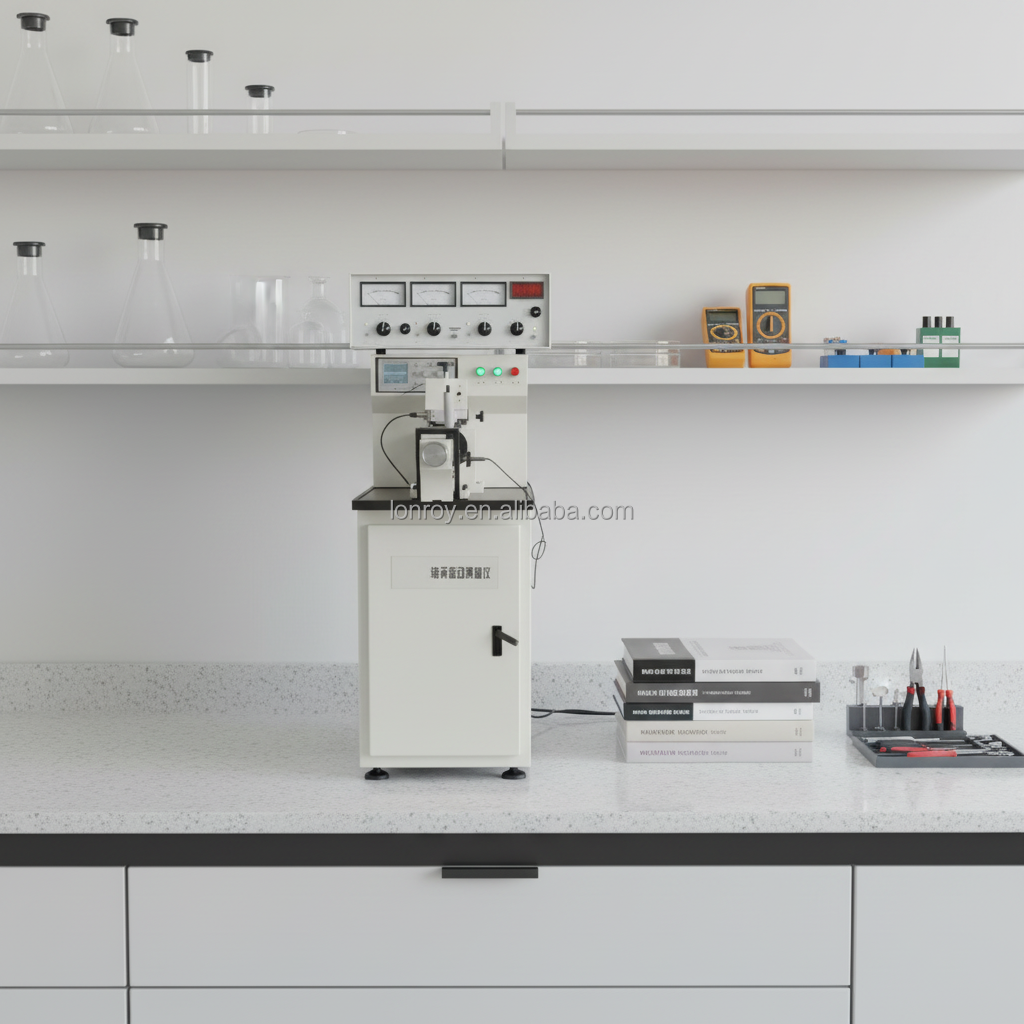

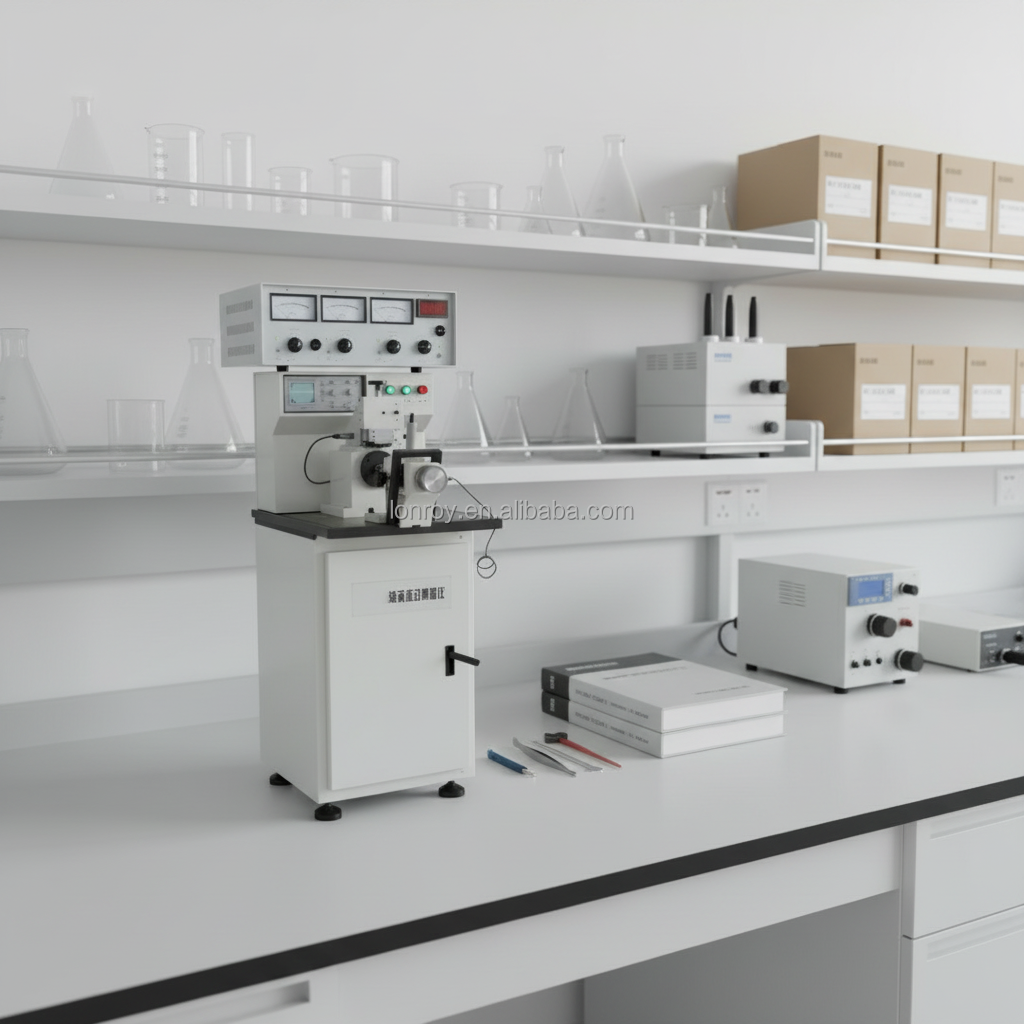

The bearing vibration (velocity) measuring instrument is a specialized instrument for measuring the vibration velocity of deep groove ball bearings, angular contact bearings, tapered roller bearings, automotive water pump shaft bearings, and textile bearings. It consists of a velocity-type sensor, driver, sensor position adjustment device, pneumatic loader, and measuring amplifier. It is suitable for bearing manufacturers for bearing vibration testing, motor manufacturers and inspection departments for bearing acceptance testing, and also for universities and research institutions for bearing vibration analysis.

Performance Characteristics

1. The resonant frequency of the velocity-type sensor is above 12kHz.

2. High rotational accuracy of the hydrostatic spindle and low starting temperature.

3. Integrated circuit printed circuit board for easy maintenance.

4. Equipped with a preset value circuit for quick measurement.

5. Equipped with a loudspeaker for monitoring bearing noise.

6. Equipped with a calibration circuit for calibrating the measuring amplifier.

7. Stable and reliable radial and axial loading.

8. Simultaneous display of low, medium, and high frequency bands.

9. Output interfaces for low, medium, high, and broadband signals are available for connection with other instruments for further analysis of bearing vibration.

Bearing Vibration Analyzer Bearing Vibration Measuring Instrument Deep Groove Ball Bearings Vibration Velocity Tester

Technical Specification

Types of bearings measured

Deep groove ball bearings, angular contact bearings, tapered roller bearings

Inner diameter range of the tested bearing

Ø3–Ø60 mm

Dynamic range

0–10000 μm/S, 6 ranges

Frequency range – Low frequency band

50 Hz–300 Hz

Frequency range – Medium frequency band

300 Hz–1800 Hz

Frequency range – High frequency band

1800 Hz–10000 Hz

Spindle speed

1800 r/min

Axial load

0–250 N

Spindle rotation accuracy

Radial runout ≤2 μm, axial runout ≤5 μm

Power supply voltage – Spindle motor

Three-phase 380 V 50 Hz 370 W

Power supply voltage – Oil pump motor

220 V 50 Hz 160 W

Power supply voltage – Measuring amplifier

220 V 50 Hz 100 W

Operating environment temperature

5–40 ℃

Dimensions

660×1030×1530 mm

Weight

Approximately 350 kg
